AUTONOMOUS FIRE SMOKE DETECTOR
IP 212-03K "DOKA - a"
Technical Instruction 01.408.00.000-01 TI (red.12.20.EN)
1. IMPORTANT INFORMATION
This document contains information of the operating principle, design and technical
characteristics of autonomous fire smoke detector IP 212-03K "DOKA - а" (hereinafter
referred as detector).
The document contains instructions necessary for correct installation, connection,
operation, technical maintenance activities, storage and product transportation. It also
contains the information that certify the manufacturer's warranty.
The detector meets all requirements of TU BY 100016872.097-2020, GOST R
53325-2012, Technical Regulations on Fire Safety Requirements, STB 11.16.08.
The operating principles and design solutions applied in "DOKA-a" detector are the
intellectual property of OJSC "ZAVOD SPECAVTOMATIKA".
The following abbreviations are used in this document:
APS - autonomous fire alarm;
IR - infrared;
NO - normally open;
ACU - alarm control unit.
Application
The detector "DOKA-a" schould be installed in enclosed spaces for continuous 24-hour
detection of fires accompanied by smoke, operating from a built-in 9V power supply element
(6F22 battery or similar).
"DOKA - a" provides:
automatic detection of fire in buildings and structures;
џ
light and sound fire alert of people independently or as part of a group of detectors
џ
united in the AFA system consisting of 2 to 40 "DOKA - a" detectors;
activation of any external device for fire alert;
џ
continuous self-test of operability;
џ
battery charge monitoring.
џ
SAFETY
The design of the detector meets the general safety requirements of GOST 12.2.003
and does not contain elements that have a harmful effect on human health or the
environment.
According to the method of protecting a person from electric shock, the detector
belongs to products of Class III according to GOST 12.2.007.0 and does not have
internal or external electrical circuits with voltage above 42 V.
!
The "Fire" state sound signal is very loud. While pressing the "Test" button, keep
the detector at arm's length.
2. DETECTOR INTRODUCTION
2.1. Open the package
!
If the detector was in conditions of negative temperatures, keep it for at least 4 hours
at the temperature of the heated room.
2.2. Disconnect the detector from base and check the package contents:
Package contents includes:
џ Detector IP 212-03K "Doka - a"
Technical Instruction
џ
џ Package
SHIFT TO REMOVE
џ Power supply element 9V
СДВИНУТЬ
ЧТОБЫ СНЯТЬ
Multi-connector "DOKA - a"
џ
џ Plug and screw
* – 1 pcs. per 5 detectors allowed
** – upon agreement with the purchaser it is allowed not to deliver in the package

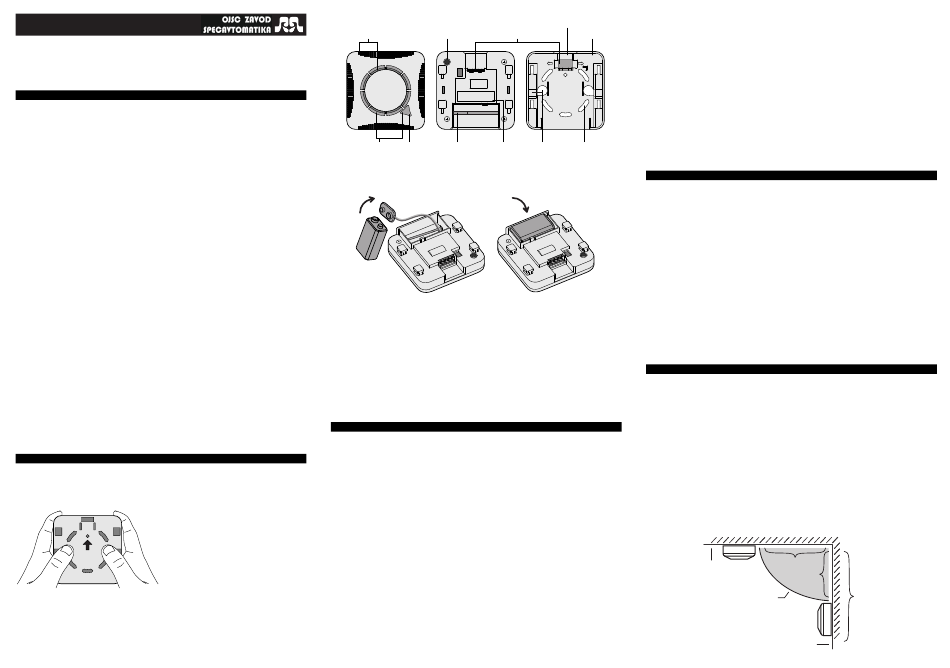

2.3. Familiarize yourself with the design of the detector
compare the serial number and date of manufacture on the case with the records in
џ
your datasheet;
џ make sure that there are no visible mechanical damage (cracks, chips, dents);
џ make sure that the warranty seal is intact.
openings for
seal
smoke inlet
light "Test"
mechanism that blocks the
installation of the detector
indicator button
in the base without a
2.4. Connect the battery and place it in the battery compartment in the
detector housing
2.5. Press and hold the "Test" button for at least 2 seconds
The detector must switch to the "Fire" state. Make sure that the volume of the
sound signal is loud enough and that it sounds without audible defects. The light
should flash simultaneously with the sound signal.
! The "Fire" state sound signal is very loud. While pressing the "Test" button, keep
the detector at arm's length.
2.6. After releasing the "Test" button, the detector must return to the
"Standby Mode" state
Make sure that the light indicator flashes once every 20-25 seconds after
switching to the "Standby Mode" state.
3. DESIGN AND OPERATING PRINCIPLE
The detector is an automatic electronic device with an optical sensor that signals
the appearance of smoke at the place of its installation.
The optical density of the medium inside the sensing chamber is analysed by
measuring the level of reflected IR radiation from the surface of the smoke particles
and then processing the received signal.
The response time of the detector to smoke depends on the fire conditions and
the properties of the burning materials.
If there is no smoke in the measuring chamber, the detector will be in the
"Standby Mode" state. There should be periodic single flashes of the light indicator
pcs.
in red and no sound signals at all.
1
When smoke appears in the detector's sensing chamber, the detector goes into the "Fire" state.
1* The alarm is triggered by switching on the light and sound signals on the detector itself, issuing a
"Fire Alert" signal for other "DOKA - a" detectors as part of the AFA system and closing the
1*
normally open built-in "Fire" relay. The detector remains in the "Fire" state until the end of
"6F22"
1**
exposure to smoke and then switches to the "Standby Mode" state.
1**
The detector is powered autonomously by a replaceable battery with a nominal
2**
voltage of 9 volts. The detector provides electrical and mechanical protection
against incorrectly connected battery polarity. When the battery is low, the detector
generates a periodic light and sound signal.
The detector has a system for self-testing the performance of the optoelectronic
unit and the battery charge level.
If there is a complete loss of performance (or complete discharge of the battery),
any indication will be absent.
numbers of contacts
of multi-connector
multi-connector base
1234
НАЖАТЬ
PUSH
serial cable fixing holes
number channels
battery
Forced testing of the "Fire" state is performed using the "Test" button.
The detector housing is made of impact resistant ABS plastic and forms a
protective shell.
A chamber with compartments is structurally made in the front part of the
housing to keep dust from getting inside the optical-electronic system.
The detector is shielded from static electricity and electromagnetic interference.
The base is used to install and connect the detector. The detector is
connected to the base by means of a detachable connection without using
any special tools. The detector is connected to external circuits via the
multi-connector according to the diagram (see section 5.2).
The multi-connector has four numbered contacts:
"General" (4) and "NO" (3) - serve to transmit a fire signal by closing the NO
џ
circuit for any external device (siren, Smart Home, GSM alarm system, etc.);
"General" (4) and "AFA" (2) - serve to group "DOKA-a" detectors (AFA
џ
system);
(1) - is a technological contact, any connections are prohibited.
џ
4. INDICATION AND FUNCTIONS
"Standby Mode" state:
The light indicator flashes every 20-25 seconds - the detector works properly
џ
The light indicator flashes every 20-25 seconds simultaneously with a sound
џ
signal - the detector is working correctly, but the battery is low to 7.5 V. The
power supply element has to be replaced!
"Fault" state:
A short sound signal every 20-25 seconds at the same time as the light
џ
indicator - optoelectronic unit is faulty. The detector must be taken in for
repair!
"Fire" state:
Intermittent (approximately 3 times per second) sound and light
џ
Closing of normally open relay contacts "Fire" ("NO" and
џ
Appearance of voltage on the "General" and "AFA" contacts as a "Fire
џ
Alert" signal for other detectors in the AFA system.
"Alert" state (only for detectors in the AFA system):
Intermittent (approximately 3 times per second) sound
џ
Closing of normally open relay contacts "Fire" ("NO" and "General").
џ
"Test" state:
Similar to indication and functions in the "Fire" state.
џ
5. INSTALLATION AND CONNECTION
5.1. Selection of the detector installation location
It is not advisable to install the detector in areas where gases, vapours and aerosols
that can cause corrosion and false detectors are released.
Placement of the detector in premises must be carried out strictly in accordance with
the requirements of the design documentation (if any).
If you have purchased and are installing the detector on your own initiative, the
following recommendations must be taken into account:
th e main task of the detector is to sound an alarm when you do not control
џ
the fire situation in your home. Therefore, install the detectors first in or near
bedrooms on the side of the most likely fire source (e.g. kitchen);
the most preferable location of the detector on the ceiling in the middle of the room;
џ
it is prohibited to install the detector closer than 1 metre from ventilation openings;
џ
install the detector as far away as possible from sources of electromagnetic
џ
interference (electrical wiring, fluorescent lamps, etc.) and infrared radiation
(heaters);
prevent water from entering or flowing on the side of the base;
џ
it is permissible to install the detector on the wall.
џ
minimum 30cm
Сeiling
minimum 10 cm
Installation is not
permitted in the
designated area
Wall
.
signals.
"General").
signal.
maximum 39 cm
