Summary of Contents for Microlectra SM7

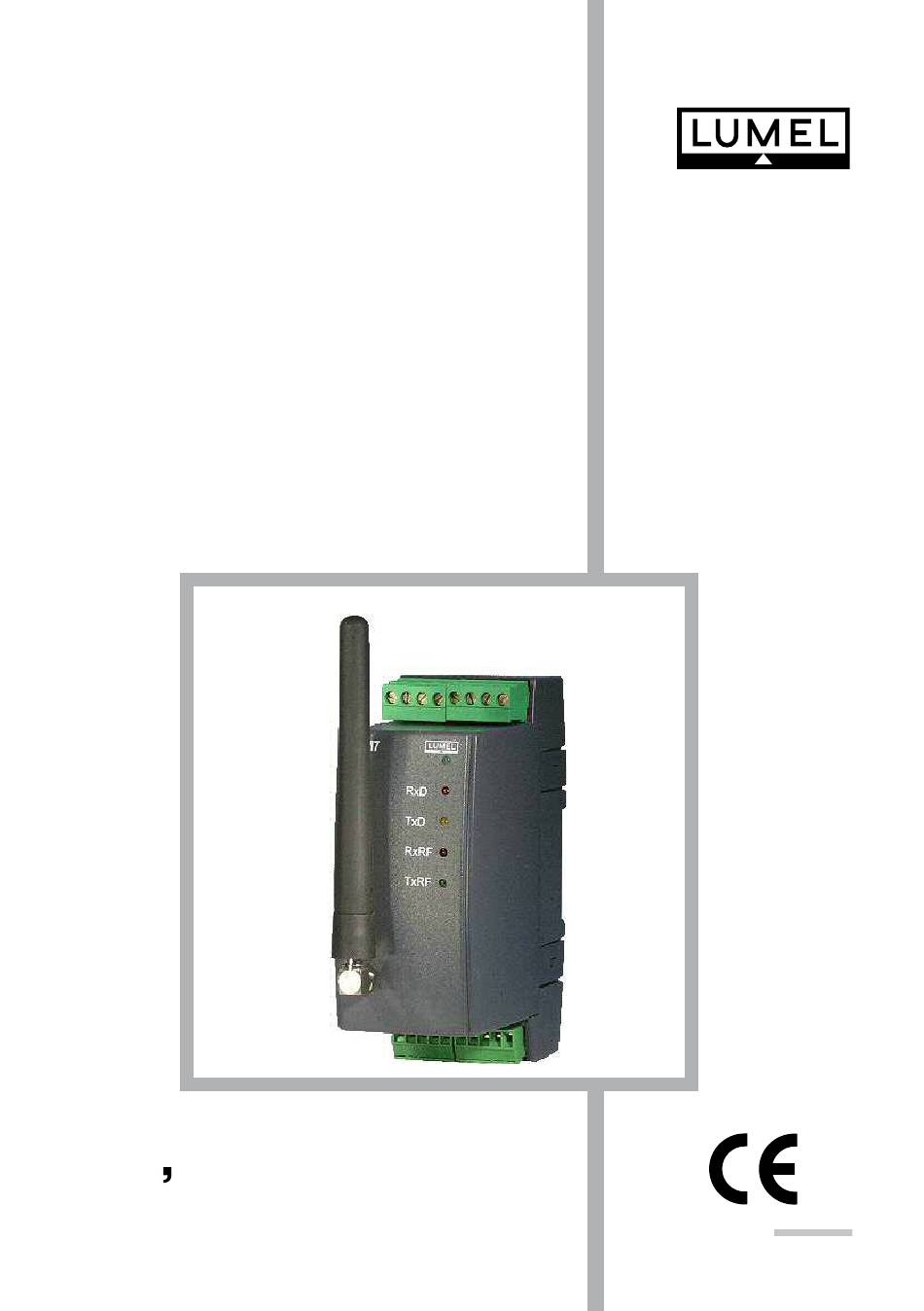

- Page 1 Microlectra bv. www.microlectra.nl info@microlectra.nl RADIO TRANSMISSION MODULE USER S MANUAL...
-
Page 2: Table Of Contents
LUMEL 3000 Configurations to Co-operate with SM7 Module..............11 4. MODULE PRINCIPLE OF OPERATION........12 4.1. First Start of the SM7 Module and PC Computer....14 4.1.1. Installation of the Configuration Program on PC ..14 4.1.2. Configuration Procedure of the SM7 Module .... 14 5. -
Page 3: Application
(RS-485 or RS-232). The data exchange with the master device is carried out in the radio circuit with 433 MHz or 868 MHz frequency. The SM7 module enables the work in one of ten radio channels, in two different types of data encoding, Manchester or NRZ. -
Page 4: Set Of The Sm7 Module
2. SET of the SM7 MODULE The set of the data acquisition module is composed of: SM7 module .................. 1 pc, stub antenna.................. 1 pc, SMA/SMA angle adapter ............... 1 pc, antenna cable................1 pc, ... -
Page 5: Installation
equipment. For more detailed information, please study the present user’s manual. All operations concerning transport, installation, and commissioning as well as maintenance must be carried out by qualified, skilled personnel and national regulations for the prevention of accidents must be observed. ... -
Page 6: Module Mounting
5. Operation Measuring systems including SM7 modules must be equipped with protection devices according to the corresponding standard and regulations for prevention of accidents. After the instrument has been disconnected from the supply voltage, live components and power connections must not be touched immediately because capacitors can be charged. -
Page 7: Sm7 Electrical Connections
3.2. SM7 Electrical Connections The supply and external signals must be connected acc. to the fig. 3 and the table 1 in which the assignment of particular outlets of the SM7 module has been described. a) for 85...253 V a.c./d.c. and 20...50 V a.c./d.c. supplies b) for 7..35 V d.c. - Page 8 Supply line (- for d.c. current supply) Functional ground line (d.c. supplied) (not used) (not used) (not used) (not used) (not used) Table 2 Description of SM7 module diodes Markings Description Data receipt from the serial port (red) Data transmission to the serial port (yellow) RxRF...
-
Page 9: Way Of Connection With Devices
3.3. Way of Connection with Devices The way of SM7 module connection to RS-232 or RS-485 interfaces are presented on fig. 4 and 5. Fig.4 Connection way of SM7 module to the RS-232 bus Fig.5 Connection way of SM7 module to the RS-485 bus... -
Page 10: Requirements For Outlet Connections
Co-operate with the SM7 Module Lumel Heat and Lumel 3000 systems communicate with industrial devices by means of COM serial ports. The SM7 module does not require the installation of whatever programmable logic controller. In case when there is not enough of serial ports in the computer, one can increase this number installing a PD10 or PD12 USB converter on the bus, what extends computer resources with additional COM ports. - Page 11 4. SM7 MODULES PRINCIPLE OF OPERATION The SM7 radio transmission module enables the radio communication of devices equipped with an RS-232 or RS-485 serial port. The maximal baud rate in the radio channel is 76800 bit/s. This rate can be changed in the range: 4800..76800 bit/s.
- Page 12 - baud rate: 9600 bit/s - transmission mode: 8N2 To switch the SM7 module into the configuration mode, one must press for three seconds during the module operation, the button being at the bottom of the housing. The button location is presented on the fig.6.
-
Page 13: Installation Of The Configuration Program On Pc
The program can be also started directly from the CD disk. 4.1.2. Configuration Procedure of the SM7 Module In order to configure the SM7 module, one must connect it to the computer serial port: RS-232 (outlet description according to the fig. 3.), next, turn the module supply on, press the module configuration button and hold it during ca 1 sec. - Page 14 Each change of settings is registered in the message window of SM7Config.exe program and transmitted to the SM7 module. In case of correctly or erroneously carried out operation of the setting change, an appropriate message will be displayed in the message window After carrying out changes, one must disconnect the transmission choosing the „Disconnect”...
-
Page 15: Technical Data
5. TECHNICAL DATA Port 1: – RS-232 interface - data format 8N1, 8N2, 8E1, 8O1, 7E1, 7O1 - baud rate 2400... 115200 bit/s Port 2: – RS-485 interface - format danych 8N1, 8N2, 8E1, 8O1, 7E1, 7O1 - prêdkoœæ transmisji 4800... -
Page 16: Sm7 Order Codes
..........7 acc.to user’s agreement*................X The manufacturer will establish the code number. Coding example: The SM7 1 2 7 code number means: SM7 - Radio transmission module 1 - supply voltage: 85...230...253 V a.c./d.c. 2 - radio carrier frequency: 868 MHz... -
Page 17: Maintenance And Warranty
7. MAINTENANCE AND WARRANTY The SM7 modul does not require any periodical maintenance. In case of some incorrect operations: 1. After the dispatch date and within the period stated in the warranty card One should return the instrument to the LUMEL’s Quality Inspection Dept.
