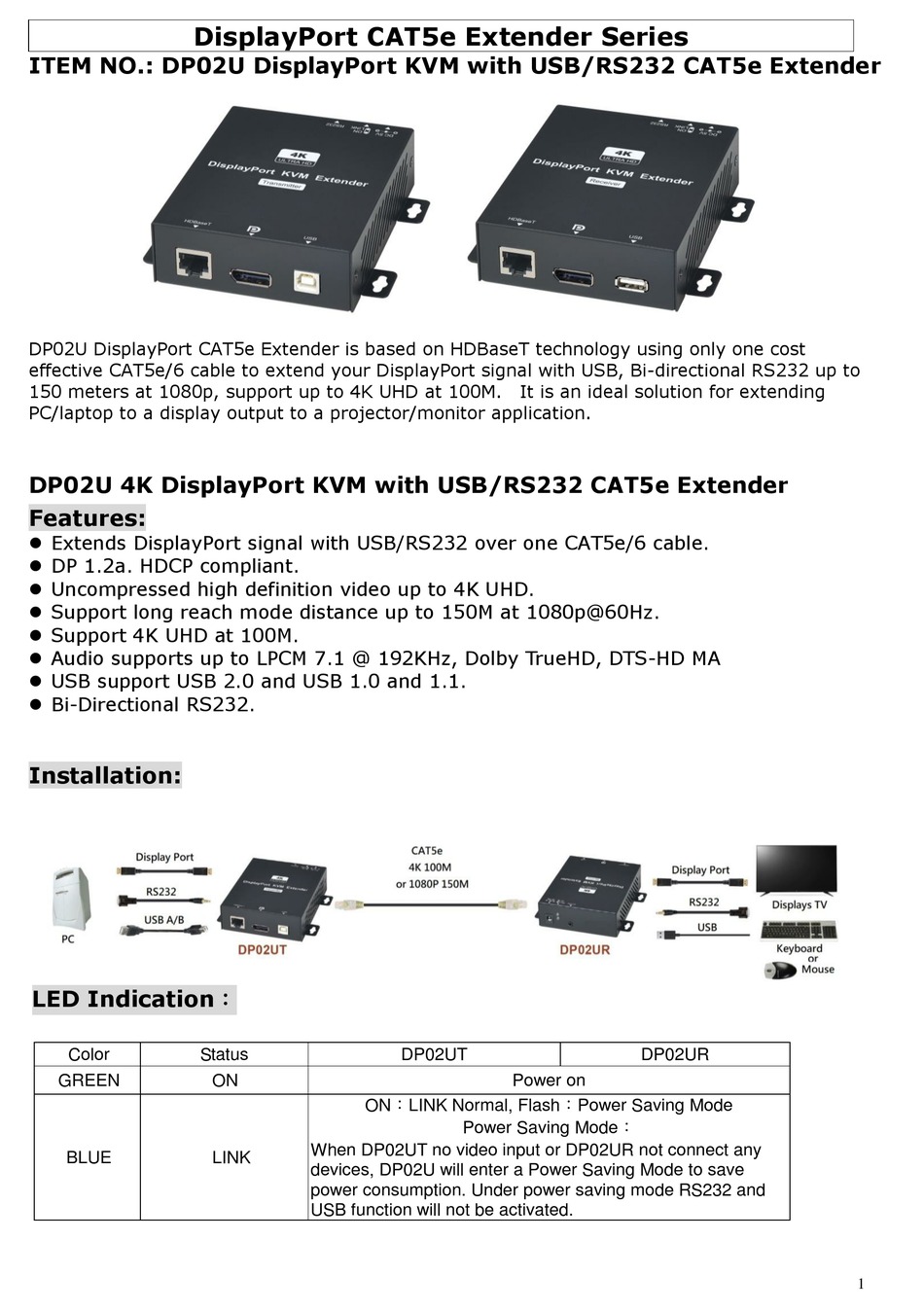

Deltaco DisplayPort Series Manual

DisplayPort CAT5e Extender Series
ITEM NO.: DP02U DisplayPort KVM with USB/RS232 CAT5e Extender
DP02U DisplayPort CAT5e Extender is based on HDBaseT technology using only one cost
effective CAT5e/6 cable to extend your DisplayPort signal with USB, Bi-directional RS232 up to
150 meters at 1080p, support up to 4K UHD at 100M. It is an ideal solution for extending
PC/laptop to a display output to a projector/monitor application.
DP02U 4K DisplayPort KVM with USB/RS232 CAT5e Extender
Features:
 Extends DisplayPort signal with USB/RS232 over one CAT5e/6 cable.
 DP 1.2a. HDCP compliant.
 Uncompressed high definition video up to 4K UHD.
 Support long reach mode distance up to 150M at 1080p@60Hz.
 Support 4K UHD at 100M.
 Audio supports up to LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA
 USB support USB 2.0 and USB 1.0 and 1.1.
 Bi-Directional RS232.
Installation:
LED Indication：
Color
GREEN
BLUE
Status
ON
ON：LINK Normal, Flash：Power Saving Mode
When DP02UT no video input or DP02UR not connect any
LINK
devices, DP02U will enter a Power Saving Mode to save
power consumption. Under power saving mode RS232 and
USB function will not be activated.
DP02UT
Power on
Power Saving Mode：
DP02UR
1
