Summary of Contents for ZD Racing PIRATES 3
- Page 10 1:1 Scale M3x12mm Countersunk Screw Set Screw M4x4 Ball bearing φ16x8x5 Front reduction gear 5000 # differential oil Rear reduction gear 1000 # differential oil φ2.5x11 Pin Set Center differential 3000 # differential oil...
- Page 11 1:1 Scale M3x12mm Countersunk Screw Set Screw M5x4 Add appropriate amount of oil Ball bearing φ16x8x5 M3x12mm Button Head Screw Add appropriate amount of oil...
- Page 12 1:1 Scale Set Screw M3x4 M3x6mm Countersunk Screw M3x12mm Countersunk Screw M3x12mm Button Head Screw Lock Nut M3 4x76mm Hinge Pin M3x12mm Socket Cap Screw 3x37mm Hinge Pin M4x12mm Button Head Screw M4x16mm Countersunk Screw Set Screw M4x4 Add appropriate amount of oil...
- Page 13 1:1 Scale M3x12mm Countersunk Screw M3x25mm Socket Cap Screw 3.5x48mm Hinge Pin Lock Nut M3 Set Screw M3x4 M3x6mm Countersunk Screw M3x12mm Button Head Screw Lock Nut M4 M3x6mm Button Head Screw...
- Page 14 1:1 Scale M3x25mm Socket Cap Screw M3x12mm Socket Cap Screw φ3x17 Pin Set Add appropriate Lock Nut M3 amount of oil 3x42mm Hinge Pin M3x12mm Button Head Screw M3x16mm Button Head Screw Lock Nut M3...
- Page 15 1:1 Scale M3x12mm Countersunk Screw M4x12mm Countersunk Screw M3x12mm Countersunk Screw M4x12mm Countersunk Screw M3x12mm Button Head Screw M3x10mm Countersunk Screw...
- Page 16 1:1 Scale M3x16mm Button Head Screw M3x13mm Button Head Screw M4x8mm Countersunk Screw Lock Nut M3 Add appropriate amount of oil...
- Page 17 1:1 Scale M4x8mm Button Head Screw M3x10mm Button Head Screw M3x32mm Button Head Screw M3x14mm Countersunk Screw Lock Nut M3...
- Page 18 1:1 Scale M4x8mm Countersunk Screw M3x10mm Countersunk Screw M3x18mm Button Head Screw Lock Nut M3 M3x10mm Button Head Screw...
- Page 19 1:1 Scale M3x18mm Button Head Screw Lock Nut M3 M3x10mm Countersunk Screw M4x8mm Countersunk Screw...
- Page 20 1:1 Scale Lock Nut M2.5 Add the Shock oil Move slowly and wait the bubble come out from the liquid Front Shock Absorber L1=4.0mm L2=35mm Please use the 500 # shock oil Rear Shock Absorber L1=7.0mm L2=45mm...
- Page 21 1:1 Scale 8082 M3x25mm Socket Cap Screw 8085 Lock Nut M3 8082 M3x25mm Socket Cap Screw 8085 Lock Nut M3...
- Page 22 1:1 Scale 8088 R-Pin Set 8068 H17 Wheel Hex Nuts Widen the touch part of the tire and rim, and then drop in the universal glue(note: The air should flow well when you use the universal glue. The operator should wear respirator, goggle and gloves to avoid the accident.
- Page 25 8426 Battery Box...
- Page 26 8456 8265 Aluminium Motor Mount Receiver box / ESC mount 8243 46T Spur Gear...
Need help?
Do you have a question about the PIRATES 3 and is the answer not in the manual?
Questions and answers

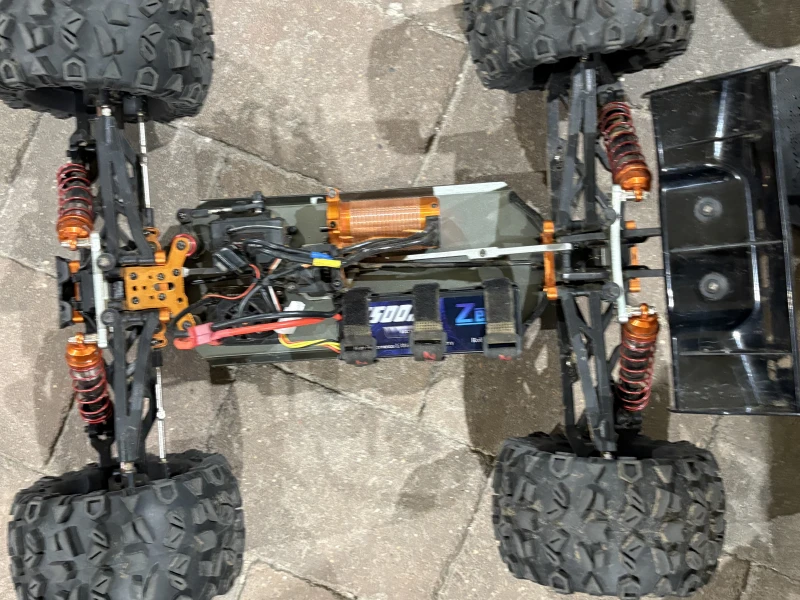

I broke my chassis and the pinion gear fell off how can I fix also where can I buy the chassis from it’s a red pirates 3 what tools may I need to fix the chassis
To fix the chassis on a ZD Racing Pirates 3, check for cracks or damage, especially around the chassis brace. If the brace is cracked, it should be replaced. You may need to disassemble parts of the vehicle to access and replace the damaged brace.
To fix or install the pinion gear:
1. Mount the motor onto the motor mount.
2. Slide the motor mount into place.
3. Use two bolts to lock the mount and set the gear mesh between the pinion and spur gear.
Tools needed for the repair:
- Hex drivers (Allen wrenches)
- Screwdrivers
- Possibly a drill if new holes are needed (as noted in the context)
- Replacement parts like chassis brace or pinion gear if damaged
Optional:
- Pliers (for stubborn parts)
- Thread locker (for securing screws)
This answer is automatically generated
