EXEL 35/8010 PIR-910 Operation Manual

Wireless PIR Motion Detector (Pet Immunity/Indoor Use)
ART. 35/8010 PIR-910
Operation Manual
Features
PIR-910 is a high performance wireless pet immunity P.I.R. motion detector. It
consists of digital dual-core fuzzy logic infrared control chip and intelligent analysis
wich effectively identify interference signals from body movement signals and reduce
false alarm rate. With automatic temperature compensation and anti-air turbolence
technology, it easily adapts to environmental changes. The detector also has the
advantages of energy saving, reliability and easy installation.

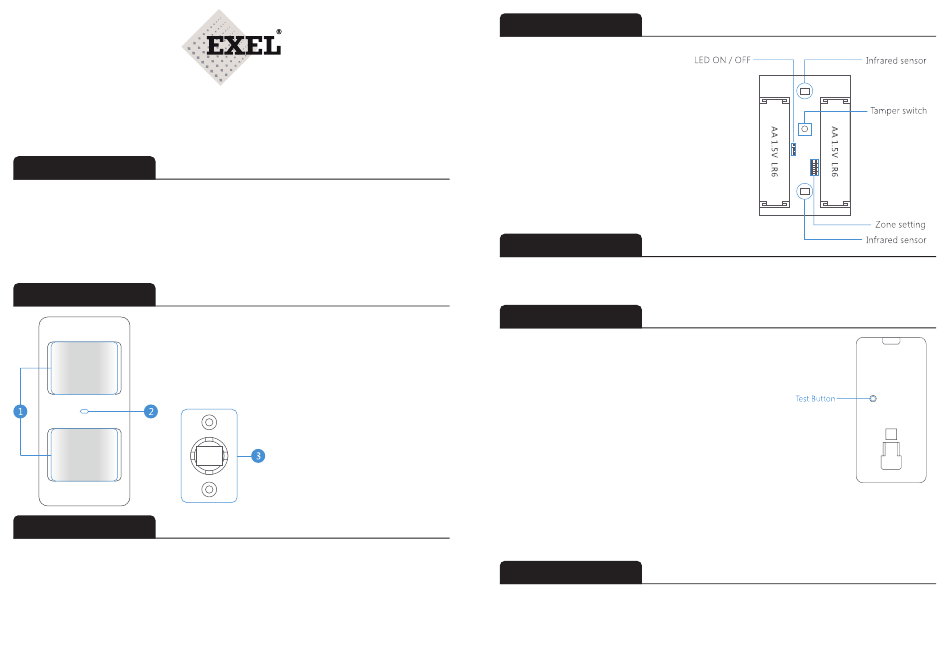

Appearance
LED Indication
Flash continuously: Under the self-testing state
Flash once: Intruder is detected
Flash twice: Self-testing is finished, enters the working mode
Normally on: Under voltage indication, please change the batteries immediately
1. Detection window
2. LED indicator
3. Bracket
PCDB Layout
Infrared sensor: It detects the
infrared rays released by human
body motion, plase do not touch
the surface and always keep it
clean.
Tamper switch: Once the case
is opened in working state, the
tamper switch will be triggered and
then generates an alarm signal.
Usage
Open the case and remove the battery activation strip to activate batteries. It will
start self-testing for one minute.
Mode Setting
Testing mode: After self-testing, press the test button,
the sensor enters testing mode, and detects once
every 10 seconds. After 3 minutes, the LED flashes
twice, and the sensor enters the working mode.
Working mode: In working state, if the sensor
is triggered more than twice within 3 minutes, it
will enter sleeping mode to save power. After no
movement within next 3 minutes, the sensor goes
back to the working mode.
Connect to alarm panel: Press the connect key on
the alarm panel, and then press the test button of the
sensor twice to send alarm signal. When one beep
is heard, they are connected. To check if thet are connected successfully, arm
the system, and trigger the sensor again, if there is an alarming, the connection is
successful.
Installation&Notices
Avoid mounting the detector close to windows, air conditioner, heater, refrigerator,
oven, sunshine and places where the temperature changes fast or the air stream
flows frequently. If two detectors are installed in the same detection scope, please
adjust the location to avoid interference and false alarm.
