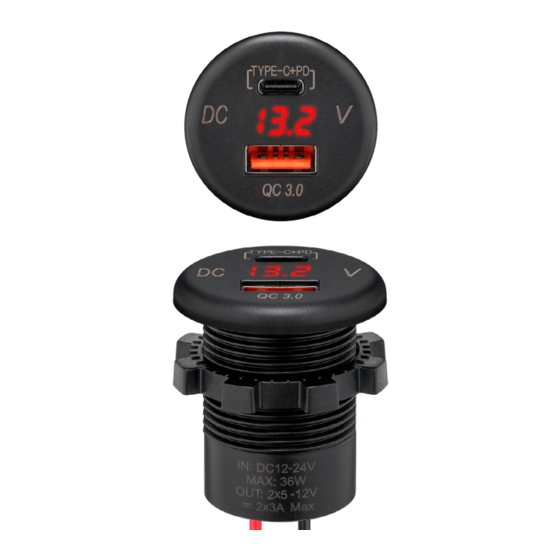

WTS-E 2 A QC 3 C PD-1
WTS- E 2 A Q C 3 C PD-1
WITH LED
USB-CHARGER
USB-CHARGER TYPE A +
TYPE A + TYPE C
TYPE C WITH LED

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 52485 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wentronic 52485

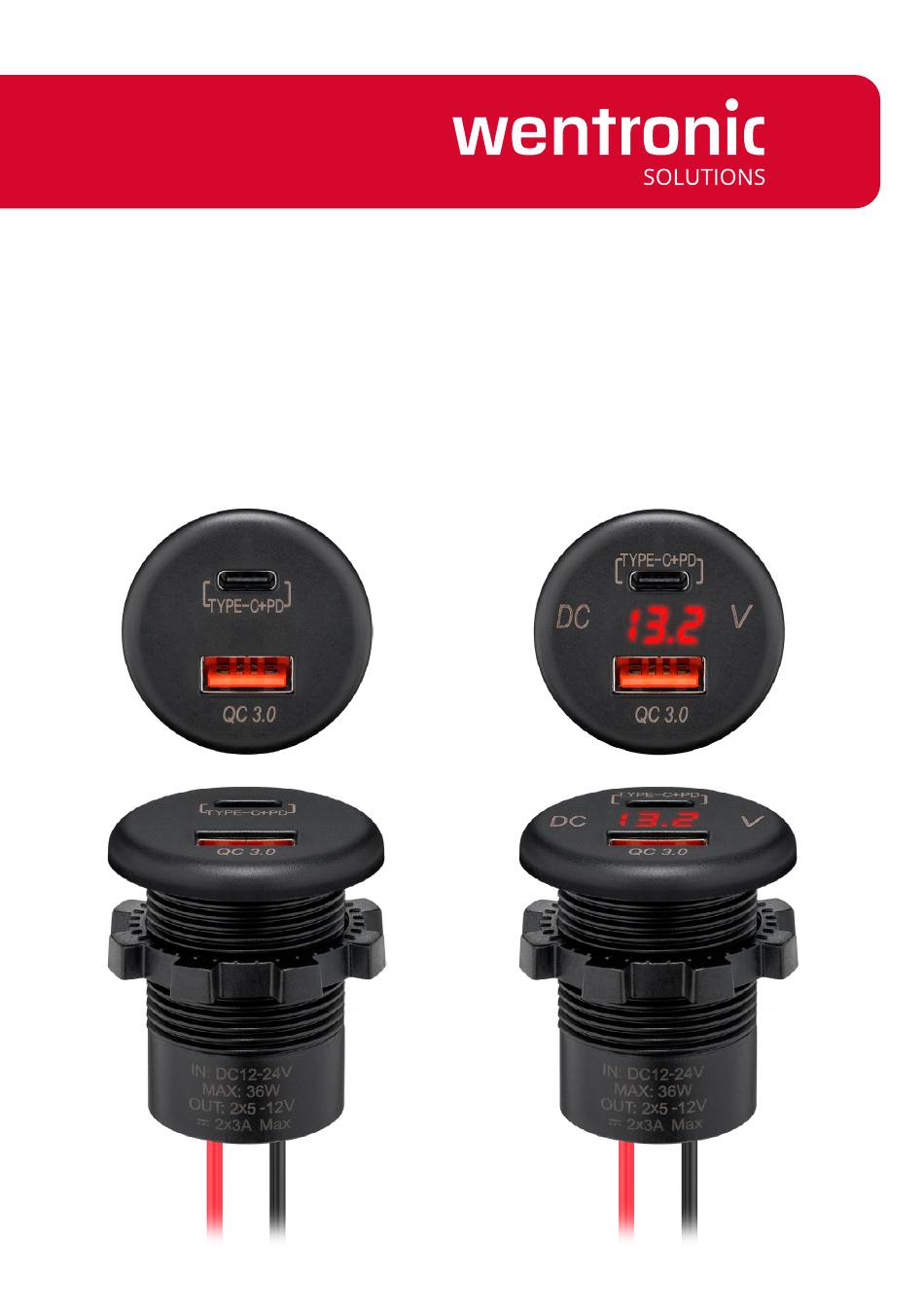

  • Page 1 ART. 52485 ART. 53931 WTS-E 2 A QC 3 C PD-1 WTS- E 2 A Q C 3 C PD-1 WITH LED USB-CHARGER USB-CHARGER TYPE A + TYPE A + TYPE C TYPE C WITH LED...
  • Page 2: Table Of Contents

    DE – EINBAU- UND BETRIEBSANLEITUNG Inhaltsverzeichnis 1 Sicherheitshinweise �����������������������������������������������������������������������������������������������������������������2 2 Beschreibung und Funktion ���������������������������������������������������������������������������������������������������3 2�1 Produkt ����������������������������������������������������������������������������������������������������������������������������������������3 2�2 Lieferumfang �������������������������������������������������������������������������������������������������������������������������������3 2�3 Bedienelemente �������������������������������������������������������������������������������������������������������������������������3 2�4 Technische Daten �����������������������������������������������������������������������������������������������������������������������3 3 Bestimmungsgemäßer Gebrauch ������������������������������������������������������������������������������������������4 4 Vorbereitung �����������������������������������������������������������������������������������������������������������������������������4 5 Einbau ����������������������������������������������������������������������������������������������������������������������������������������4 5�1 Einbauort bestimmen und Loch bohren ���������������������������������������������������������������������������������4 5�2 Elektrischer Anschluss ���������������������������������������������������������������������������������������������������������������5 6 Bedienung ���������������������������������������������������������������������������������������������������������������������������������5...
  • Page 3: Sicherheitshinweise

    Sicherheitshinweise Die Anleitung ist Bestandteil des Produktes und enthält wichtige Hinweise zum korrekten Ge- brauch. • Lesen Sie die Anleitung vollständig und sorgfältig vor Gebrauch� Die Anleitung muss bei Unsicherheiten und Weitergabe des Produktes verfügbar sein. • Bewahren Sie die Anleitung auf� Stromschlaggefahr •...
  • Page 4: Beschreibung Und Funktion

    2.3 Bedienelemente 1 USB-C™-PD-Buchse 6 Feststellring 2 LED-Anzeige 7 Gewinde 3 USB-A-QC3�0-Buchse 8 Schwarzes Anschlusskabel 4 Blende 9 Rotes Anschlusskabel 5 Gummiring 2.4 Technische Daten Artikelnummer 52485 53931 Eingang 12-24 V , 2,6-3,6 A USB-C™-PD-Buchse, Anschlüsse USB-A-QC3�0-Buchse 5,0 V , 3,0 A, 15,0 W oder Ausgang USB-A QC3�0 9,0 V...
  • Page 5: Bestimmungsgemäßer Gebrauch

    Kabellänge 150 mm Leiterquerschnitt 1,0 mm² Maße (Ø x Länge) 36 x 39,5 mm 36 x 44,5 mm Einbautiefe 34,2 mm 39,2 mm Gewindedurchmesser 27 mm Gewicht 32,3 g 32 g Unterstützte Standards PD 3�0, QC 3�0, QC 4�0, AFC, FCP, BC 1�2, DCP, USB-C™-PD-Buchse SCP, PE 2�0, PE 1�1, SFCP Unterstützte Standards...
  • Page 6: Elektrischer Anschluss

    5.2 Elektrischer Anschluss GEFAHR! Verletzungsgefahr durch unsachgemäße Installation! Die unsachgemäße Ausführung von elektrischen Verbindungen im Fahrzeug kann zu erhebli- chen Gefahren führen. • Lassen Sie Arbeiten am Bordnetz nur von ausgebildeten Fachkräften durchführen! Es gibt verschiedene Möglichkeiten den USB-Charger mit dem Bordnetz zu verbinden, beispielsweise über einen Sicherungs- oder Verteilerkasten im Fahrzeuginneren.
  • Page 7: Schutzmechanismen

    Schutzmechanismen Störung Verhalten Ein interner Schutzmechanismus löst aus� Anschlie- Kurzschluss am Ausgang ßend arbeitet der USB-Charger normal weiter� Wenn eine Temperatur von 120 °C überschritten wird, wird die Ausgangsspannung reduziert. Übertemperatur am Ausgang Wenn eine Temperatur von 150 °C überschritten wird, schaltet sich der USB-Charger aus� Wenn die Stromstärke am Ausgang eine der Nennan- Überstrom am Ausgang gaben überschreitet, schaltet sich der USB-Charger aus�...
  • Page 8: Entsorgungshinweise

    DE4535302615620 12 EU-Konformitätserklärung Mit dem CE-Zeichen erklärt die Wentronic GmbH, dass das Produkt die grund- legenden Anforderungen und Richtlinien der europäischen Bestimmungen erfüllt� 13 ECE-Prüfzeichen Mit dem ECE-Prüfzeichen erklärt die Wentronic GmbH, dass für das Produkt die erforderlichen Prüfungen und Genehmigungen durchgeführt wurden und eine ECE-Bauartgenehmigung erteilt wurde� 10R-061156 14 Verwendete Symbole Nur zur Verwendung im Innenbereich...
  • Page 10 EN – INSTALLATION AND USER MANUAL Table of contents 1 Safety instructions ���������������������������������������������������������������������������������������������������������������� 10 2 Description and Function ����������������������������������������������������������������������������������������������������� 10 2�1 Product ��������������������������������������������������������������������������������������������������������������������������������������10 2.2 Scope of Delivery ����������������������������������������������������������������������������������������������������������������������10 2.3 Operating Elements �����������������������������������������������������������������������������������������������������������������11 2.4 Specifications ����������������������������������������������������������������������������������������������������������������������������11 3 Intended Use ������������������������������������������������������������������������������������������������������������������������� 12 4 Preparation ���������������������������������������������������������������������������������������������������������������������������� 12 5 Installation ����������������������������������������������������������������������������������������������������������������������������� 12 5�1 Selecting the installation location and drilling a hole ����������������������������������������������������������12 5�2...
  • Page 11: Safety Instructions

    Safety instructions The manual is part of the product and contains important information for correct use. • Read the manual completely and carefully before use. The manual must be available for uncertainties and passing the product. • Keep this manual. Risk of electric shock • Do not use the product with wet hands. • Pay attention to the maximum output currents of the product. • Do not open the housing. •...
  • Page 12: Operating Elements

    2 LED display 7 Thread 3 USB-A QC3�0 socket 8 Black connection cable 4 Cover 9 Red connection cable 5 Rubber ring 2.4 Specifications Item number 52485 53931 Input 12-24 V , 2�6-3�6 A USB-C™ PD socket Connections USB-A QC3�0 socket 5�0 V , 3�0 A, 15�0 W or Output USB-A QC3.0...
  • Page 13: Intended Use

    Short circuit at the output, Overtemperature at the output, Integrated protection against Overcurrent at the output, Overvoltage at the input, Overload Intended Use We do not permit using the device in other ways like described in chapter „Description and Function“ or in the „Safety Instructions“. Use the product only in dry interior rooms� Not attending to these regulations and safety instructions might cause fatal accidents, injuries, and damages to persons and property. IP20: This product is protected against medium sized foreign objects, but not against wa- ter ingress� Preparation 1� Check the scope of delivery for completeness and integrity. 2� Compare the specifications of all used devices and ensure compatibility. Installation 5.1 Selecting the installation location and drilling a hole 1�...
  • Page 14: Operation

    tery could be used unwantedly� 1� Position the USB charger in the installation hole� 2� Pull the locking ring (6) and rubber ring (5) over both connection cables� 3� Connect the red connection cable (9) to a positive terminal and secure the connec- tion� 4� Connect the black connection cable (8) to a negative pole (ground) and secure the connection� 5� Align the USB charger in the installation hole as desired and tighten the locking ring (6) and rubber ring (5) to secure the USB charger�...
  • Page 15: Maintenance, Care, Storage And Transport

    • Normal wear • Changes • Revisions • Damage due to carelessness, foreign influence, areas of application for which the product is not designed or completely or partially dismantled products. 11 Disposal instructions 11.1 Product According to the European WEEE directive, electrical and electronic equipment must not be disposed with consumers waste. Its components must be recycled or disposed apart from each other. Otherwise contaminative and hazardous substan- ces can damage the health and pollute the environment. As a consumer, you are committed by law to dispose electrical and electronic devices to the producer, the dealer, or public collecting points at the end of the devices lifetime for free. Particulars are regulated in national right. The symbol on the product, in the user manual, or at the packaging alludes to these terms. With this kind of waste separation, application, and waste disposal of used devices you achieve an important share to environmental protection. WEEE No: 82898622 11.2 Packaging Packaging can be disposed of free of charge at the suitable collection points – pa- per belongs in paper bins, plastics belong in yellow sacks and glass belongs in used glass bins� DE4535302615620 12 EU Declaration of conformity With the CE sign, Wentronic GmbH declares that the product meets the basic requirements and directives of the European regulations.
  • Page 16: Mark

    13 E-Mark With the e-Mark, Wentronic GmbH declares that the necessary tests and appro- vals have been carried out for the product and that an ECE type approval has been granted� 10R-061156 14 Symbols used For indoor use only IEC 60417- 5957 Direct current IEC 60417- 5031 Recycling ISO 7001 - PI PF 066...
  • Page 18 REV2022-06-01 V1�0aw Wentronic Solutions GmbH Pillmannstraße 12 38112 Braunschweig Germany Made in China © by Wentronic Solutions Hotline: +49 0180 5003258* E-Mail: solutions@wentronic�com Web: https://www.wentronic.com/content/en/consumer-contact/ *(0,14 € / Minute aus dem deutschen Festnetz) *(0.14 € / minute from German landline)
