Summary of Contents for CAMELBACK Displays Sacagawea designs VK-1224

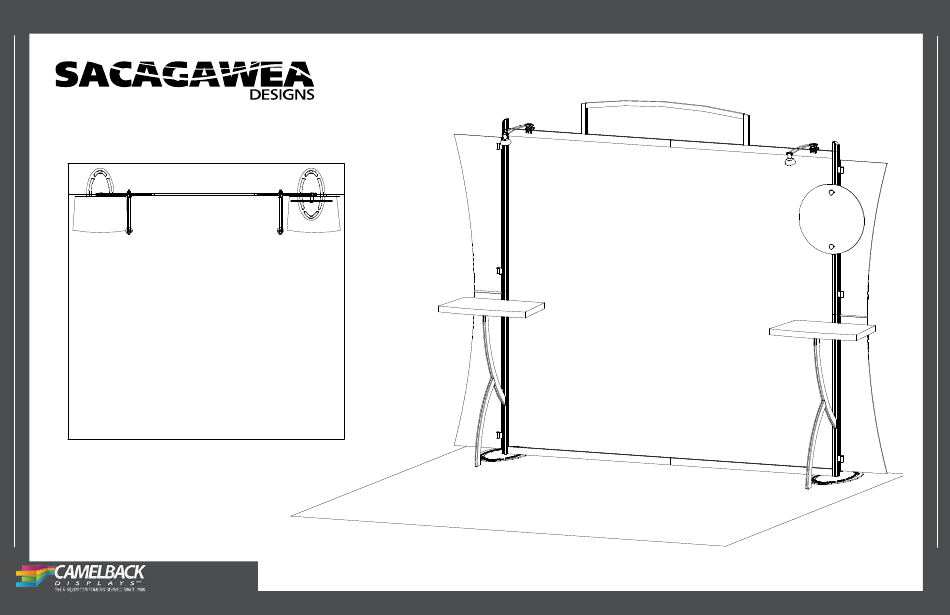

- Page 1 Step 1 Sacagawea VK-1224 - General Layout 10’ Plan View 10’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2012 www.camelbackdisplays.com Page 1 of 2...
- Page 2 Step 2 Sacagawea General Information Using You Set-up Instructions: The Visionary Designs Set-up Instructions for Sacagawea displays are created Hex Key Tool Typical Connection Typical Connection specifically for your configuration. They are laid out sequentially, including an exploded view of the entire display and a logical series of detailed steps for assembly.
- Page 3 Step 1 Sacagawea Backwall Assembly Item Qty. Description Steps: 1) Attach base plates [1] to lower verticals [2a,3a] with bolts. Base Plate 2) Connect upper verticals [2b,3b] to lower verticals [2a,3a] with connection bars [b]. 2a/2b 42” Vertical Extrusion 3) Connect horizontals [4a,4b] and [5a,5b] with connection bars [a]. 3a/3b 42”...
- Page 4 Step 2 Sacagawea Counter, Wing and Sign Attachment Steps: Item Qty. Description 1) Attach lights as indicated. 7/8/9 1/1/1 Header Frame 2) Attach assembled header frame and apply graphics as shown. 30.2” Curved Extrusion 3) Attach assembled counter supports [10/11] to vertical where indicated. Leg Support 4) Attach support legs [10a] to counter support [10/11].
- Page 5 Case Packing Instruction Top Veiw of each Level Backwall Counter Backwall Counter Support Support Setup Hardware Base Plates Base Plates Lights Round Sign Graphic Counter Counter Level 2 Level 3 Level 4 Level 1 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
