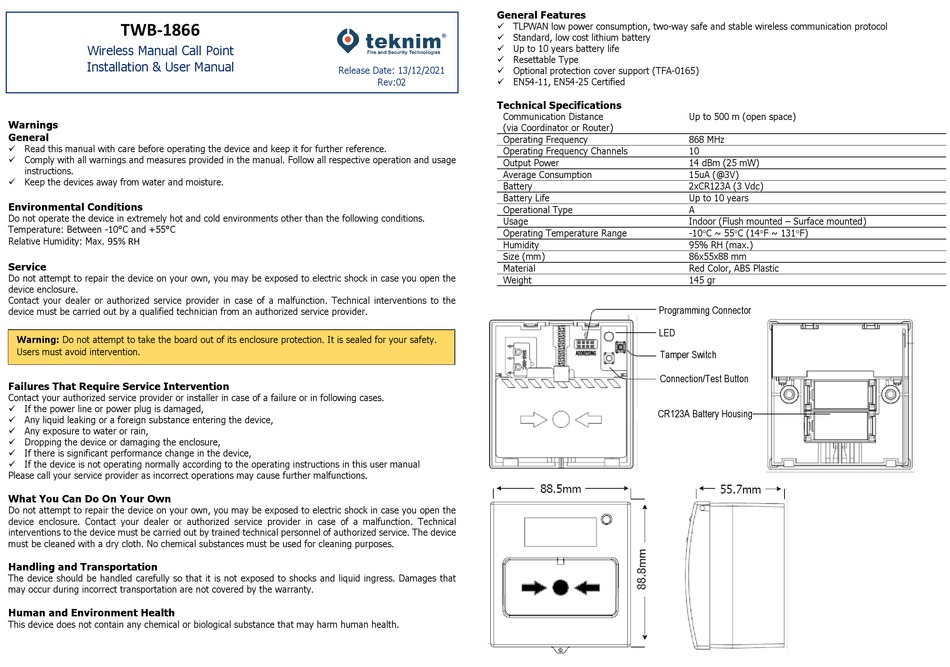

Teknim TWB-1866 Installation & User Manual

TWB-1866 TWB-1866
TLPWAN Wireless Break & Push Wireless Manual Call Point
Installation & User Manual
Installation & User Manual

Warnings

General
✓ Read this manual with care before operating the device and keep it for further reference.
✓ Comply with all warnings and measures provided in the manual. Follow all respective operation and usage
instructions.
✓ Keep the devices away from water and moisture.

Environmental Conditions

Do not operate the device in extremely hot and cold environments other than the following conditions.
Temperature: Between -10°C and +55°C
Relative Humidity: Max.
95% RH

Service

Do not attempt to repair the device on your own, you may be exposed to electric shock in case you open the
device enclosure.
Contact your dealer or authorized service provider in case of a malfunction. Technical interventions to the
device must be carried out by a qualified technician from an authorized service provider.
Warning: Do not attempt to take the board out of its enclosure protection. It is sealed for your safety.
Users must avoid intervention.

Failures That Require Service Intervention

Contact your authorized service provider or installer in case of a failure or in following cases.
✓ If the power line or power plug is damaged,
✓ Any liquid leaking or a foreign substance entering the device,
✓ Any exposure to water or rain,
✓ Dropping the device or damaging the enclosure,
✓ If there is significant performance change in the device,
✓ If the device is not operating normally according to the operating instructions in this user manual
Please call your service provider as incorrect operations may cause further malfunctions.

What You Can Do On Your Own

Do not attempt to repair the device on your own, you may be exposed to electric shock in case you open the
device enclosure. Contact your dealer or authorized service provider in case of a malfunction. Technical
interventions to the device must be carried out by trained technical personnel of authorized service. The device
must be cleaned with a dry cloth. No chemical substances must be used for cleaning purposes.

Handling and Transportation

The device should be handled carefully so that it is not exposed to shocks and liquid ingress. Damages that
may occur during incorrect transportation are not covered by the warranty.

Human and Environment Health

This device does not contain any chemical or biological substance that may harm human health.

General Features

✓ TLPWAN low power consumption, two-way safe and stable wireless communication protocol
✓ Standard, low cost lithium battery
✓ Up to 10 years battery life
✓ Resettable Type
Release Date: 13/12/2021
✓ Optional protection cover support (TFA-0165)
Rev:02 ✓ EN54-11, EN54-25 Certified

Technical Specifications

Communication Distance
(via Coordinator or Router)
Operating Frequency
Operating Frequency Channels
Output Power
Average Consumption
Battery
Battery Life
Operational Type
Usage
Operating Temperature Range
Humidity
Size (mm)
Material
Weight
Up to 500 m (open space)
868 MHz
10
14 dBm (25 mW)
15uA (@3V)
2xCR123A (3 Vdc)
Up to 10 years
A
Indoor (Flush mounted – Surface mounted)
-10C ~ 55C (14F ~ 131F)
95% RH (max.)
86x55x88 mm
Red Color, ABS Plastic
145 gr
Programming Connector
LED
Tamper Switch
Connection/Test Button
CR123A Battery Housing
