HST HM201-SC Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
HM201-SC
Addressable Short Circuit Isolator Module

SPECIFICATIONS

Nominal Operating Voltage::
Short Circuit Current Limitation
Short Loop Resistance
Operating Humidity Range:
Operating Temperature Range:
Dimension:
Weight:

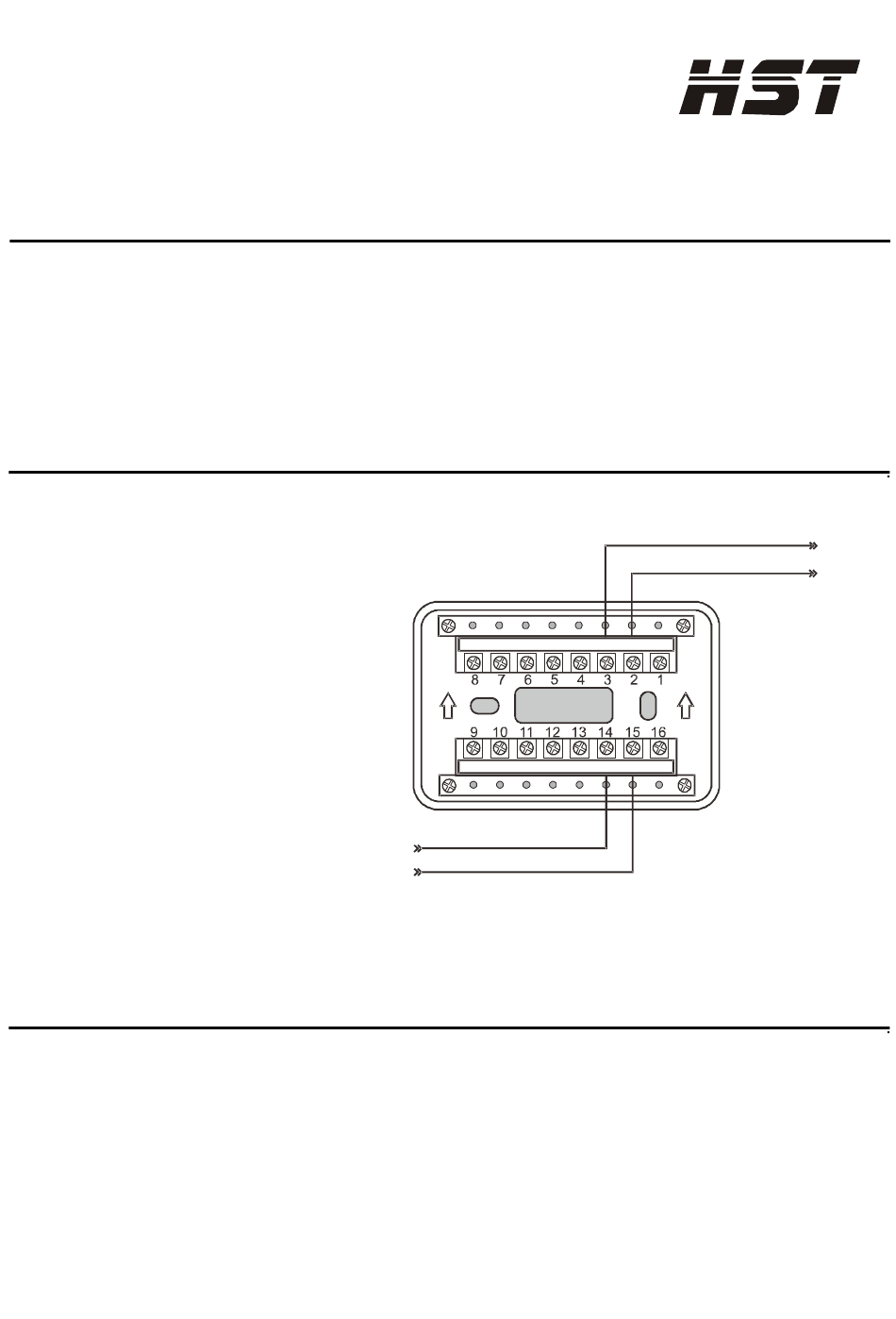

INSTALLATION WIRING

Terminal Description
T14- Loop Input+
T15- Loop Input-
T3- Loop Output+
T2- Loop Output-

BEFORE INSTALLING

This information is included as a quick reference
installation guide. Refer to the control panel installation
manual for detailed system information. If the modules
will be installed in an existing operational system, inform
the operator and local authority that the system will be
temporarily out of service. Disconnect power to the
control panel before installing the modules.
NOTICE: This manual should be left with the
15 to 28 VDC
>700 mA @ 24 VDC
<50Ω
10% to 93% Relative Humidity, Non-condensing
-10°C to50°C
120 mm L x 80mm W x 43mm H
175 g
L O O P I N P U T +
L O O P I N P U T -
owner/user of this equipment.

GENERAL DESCRIPTION

The Short Circuit Isolator Modules enable part of the
communications loop to continue operating when a short
circuit occurs on it. An LED indicator turns on during a
short circuit condition. The module will automatically
restore the entire communications loop to the normal
condition when the short circuit is removed.
L O O P O U T P U T +
L O O P O U T P U T -
L + L -
L + L -
©
