Summary of Contents for Alopek V-TRACK

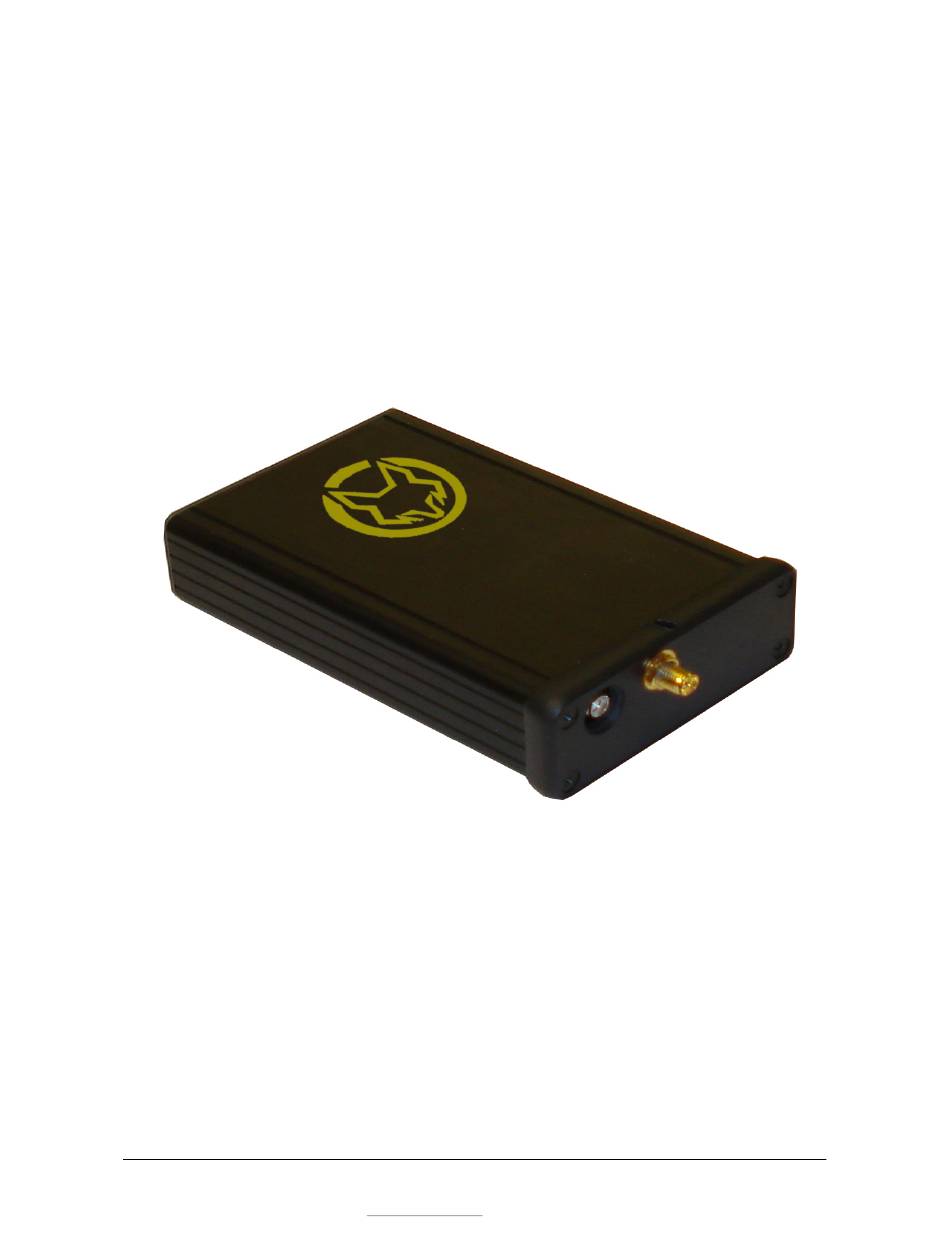

- Page 1 ALOPEK V-TRACK INSTALLER MANUAL REV 1.0 Alopek, Inc 650 S Military Trail, Deerfield Beach, FL 33442 info@alopek.com 954-234-2397 ©2007, Alopek, Inc. All rights reserved.
- Page 2 The modem was tested and certified to meet FCC Parts 15 in a stand-alone configuration, which demonstrated that the V-Track complies with Part 15 emission limits. FCC Part 22 & Part 24 is covered by the modem "modular approval" process for a transmitter. This approach, described by...
-
Page 3: Limited Warranty
LIMITED WARRANTY Scope Alopek Inc, warrants to the original purchaser of the product that, for a period of one (1) year from the date of product purchase, the product hardware, when used in conjunction with any associated software (including any firmware and applications) supplied by Alopek Inc, will be free from defects in material or workmanship under normal operation. - Page 4 (iii) caused by use of any software other than any software supplied by Alopek Inc, or by use of the product other than in accordance with its documentation or (iv) the result of electrostatic discharge, electrical surge, fire, flood or similar causes.
- Page 5 Association (NMEA) GPS data format, Trimble ASCII Interface Protocol (TAIP) GPS data format, and Alopek, Inc’s own proprietary Binary GPS data format. The V-TRACK is designed to work in a stand-alone device in an automobile. Alopek, Inc V-TRACK provides maximum AVL versatility in a single affordable device.
- Page 6 V-TRACK modem. This can be a computer running a Windows Operating System with the HyperTerminal program.
- Page 7 2 Installation Instructions provided in this section describe the hardware installation of the V-TRACK device. To install the V-TRACK in a vehicle, follow these steps: • Choose a convenient location in the vehicle – either in the trunk or interior of a vehicle.
- Page 8 2.2 Installing Cables During installation, the following precautions will help ensure proper operation of the V-TRACK • Remove power from the V-TRACK. • Do not create loops, sharp bends or crimps in the cables • All cables should be attached to the vehicle and equipment in such a way to reduce stress or wear caused by vibration generated by moving vehicles.
- Page 9 The user can purchase the optional 12-pin external I/O connector for the Alopek, Inc V-TRACK that can be used to interface with other devices. Alopek, Inc can provide an optional cable and connector. The user also has the option of building his/her own cable. Table 1 describes the pin functionality for this 12 pin I/O connector.
- Page 10 There are three pins that are used to connect to the serial port of your computer. These are for transmit (out), receive (in) and ground. The following diagram displays the serial end of the interface cable. Alopek, Inc 650 S Military Trail, Deerfield Beach, FL 33442 info@alopek.com 954-234-2397 ©2007, Alopek, Inc. All rights reserved.
- Page 11 3.3 Connecting the Power Source The GSM/GPRS V-TRACK has an input voltage range of 9 – 30 V DC. The power and ignition pins can support 9 – 30 V DC input voltage. The user has an option to connect these wires depending on the desired functionality.
- Page 12 Use of the device outside of the specified voltage range may result in damage to the device and/or undesirable results. Please follow the specifications as listed in the table below. Alopek, Inc is not liable for damage to the V-TRACK caused due to user error.
- Page 13 Serial Communications V-track Basic To Pin 3 Script Panic White + 12VDC Acc Switched Ver 1.0 + 12VDC input from vehicle battery Alopek, Inc 650 S Military Trail, Deerfield Beach, FL 33442 info@alopek.com 954-234-2397 ©2007, Alopek, Inc. All rights reserved.
- Page 14 Alopek, Inc 650 S Military Trail, Deerfield Beach, FL 33442 info@alopek.com 954-234-2397 ©2007, Alopek, Inc. All rights reserved.
