Summary of Contents for Alliums AC-020

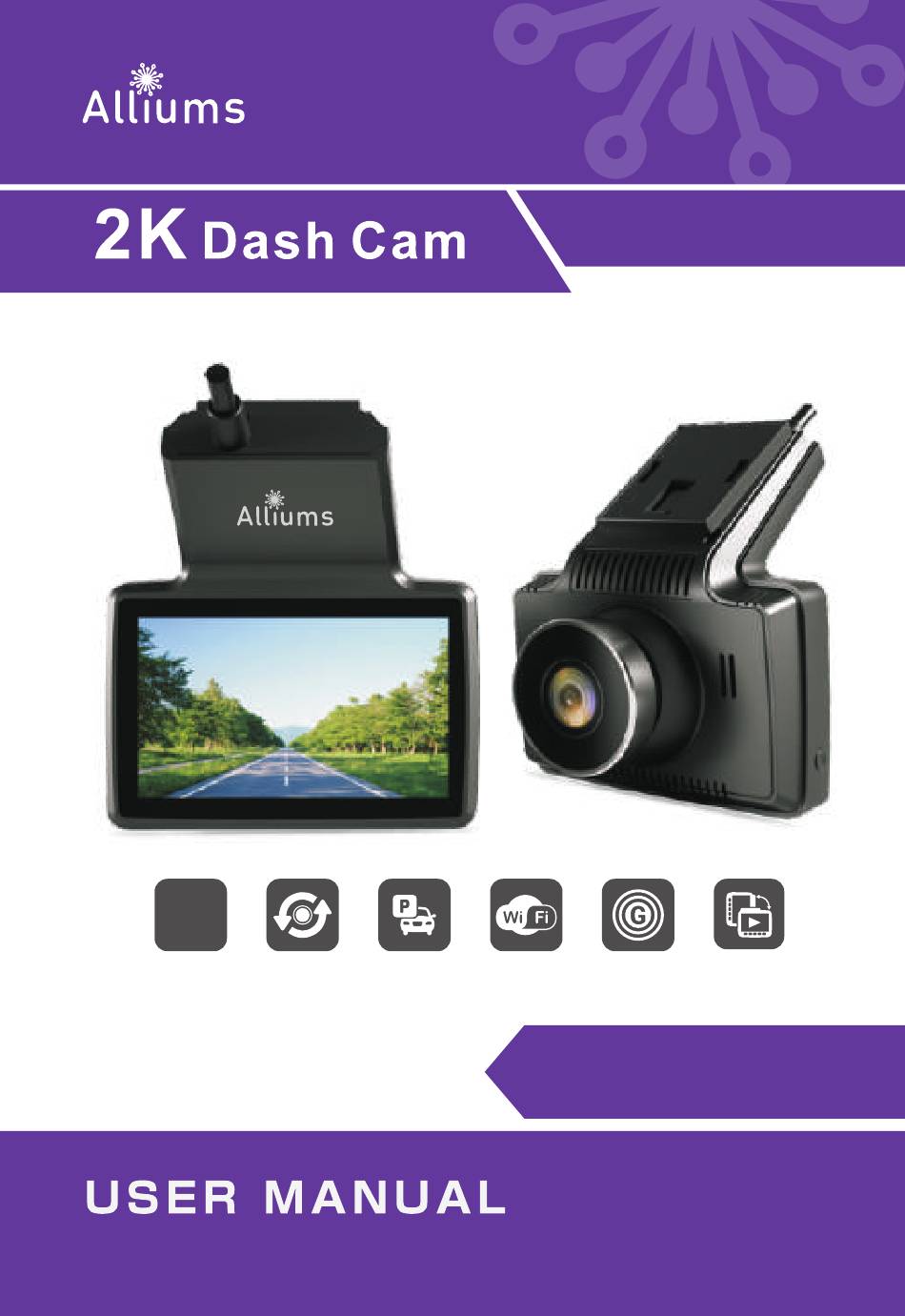

- Page 1 MODEL : AC-020 AC-020 LOOP CYCLE PARKING MODE G-SENSOR VIDEO ROTATE WIFI Please Read...
- Page 3 User Guide Model : AC-020 Please read this instruction carefully before using this product. Please use it correctly based on full understanding of the content.
- Page 4 AC-020...
- Page 5 Dash Cam View AC-020 Six view Top View Left View AC-020 Right View Before View After View End View...
-
Page 6: Button Functions
Dash Cam View Button functions Micro SD Card Slot Power On/Off Power Key Function 1: switch function In shutdown state, long press [power button] for 2 seconds to turn on the power supply of the machine, the machine automatically starts to work. -
Page 7: Function Introduction
Function Introduction Click to turn off and on Function 1: video sound Slide down the middle part of the screen to enter the setting Click to pause and start recording interface Function 2: Click to lock the Slide the screen from right to current video left to switch front and back Windows... -
Page 8: Set Interface
Set interface Language English Back Resolution Loop Record Time-Lapse Record Audio G-Sensor Parking Guard License Screen Saver Video Encode Frequency Mirror Image USB Mode Key Voice Speaker Boot Sound Language Date/Time Format Default Speech Wi-Fi App Version Recognition... -
Page 9: App Download And Installation
APP download and installation Wi-Fi App Wi-Fi SSID : himc_688FC9566689 Wi-Fi Password : 12345678 1. For the first time to use the recorder, please scan the following QR code with your mobile phone to download the APP: 2. IPhone can be downloaded and installed by searching "RoadCam" in Apple App Store. - Page 10 Good morning 8:30 Disconnect Setting See the photos Video playback Video clip Video sharing photos Video equipment Video/photo recording video Video/Photo toggle mode After wifi connection, the recorder can be set directly with the mobile phone(The Settings of each machine are different, subject to actual conditions)
- Page 11 Function introduction 1. Use the automatic recording function When the car engine is started, the recorder automatically starts and opens the recording function; when the car engine is closed, the recorder automatically saves the recording content and shuts down. The recorded images are stored in sections on the TF card. When the TF card is full, the recorder will cover the earlier recorded images.
- Page 12 3. Collision sensing function The machine has built-in collision sensor (G-sensor). If a serious vehicle collision occurs, the recorder will lock the original broken video when the accident occurs and save it as a special image. Meanwhile, the lock icon is displayed in the upper left corner of the display screen.
- Page 13 6. Play back files In the video recording and photo taking interface under startup state: Press the mode key to enter the playback interface. 7. Astern view First of all, the car charger must be connected to the recorder, and the red line on the wire camera is connected to the backlight.
- Page 14 10. The USB model Slide down to the setting interface in the middle part of the screen in the recording or standby state or click the setting button to connect the USB cable and select USB from the setting. The window pops up: USB storage, USB camera and USB video mode.
-
Page 15: Product Specification
Product Specification Model AC-020 HiSilicon 3556EV200 Screen 3 inch IPS touch screen 2560*1440,@30fps Video resolution ratio 1920*1080@30fps Memory Card Max supports128GB Micro SD Lens Front lens: 170° /Rear lens: 140° Wifi 802.11b/g/n,2.4GHz RoadCam Elements 6G+IR Time-lapse Support Loop Recording Support... - Page 16 Installation, use and precautions 1. When unpacking, do not hurt the body with hard objects, because it's plastic or rubber material. And don't touch the camera to avoid fingerprints affecting the video. 2 .before installation, confirm that there is no water on the fixed car glass or instrument table.
- Page 17 AC-020 Input : 12/24V Output : 5V/2.5A...
- Page 18 AC-020 Package Contents AC-020 LOOP CYCLE PARKING MODE WIFI G-SENSOR VIDEO ROTATE 1080p Rearview Camera Buck line 5.5M Rearview Camera Cable MODEL:AC-020 AC-020 LOOP CYCLE PARKING MODE WIFI G-SENSOR VIDEO ROTATE Please Read Car Charger 3M viscose + stand User Manual...
- Page 19 Feel free to contact our helpful customer support team with any questions regarding your product! Your satisfaction is our priority. Alliums brand Unit 4/9 Waratah St, Melrose Park NSW 2114 www.alliums.com.au support@alliums.com.au Please provide your order number when you contact our customer support services.
- Page 20 Limitations Disclaimer Of Warranty Liability 1.Company shall not be liable/responsible directly or indirectly for any claim for compensations, damages, any losses etc. Under this "Limited Warranty" due to inconvenience, loss of time, loss of profits, loss of business opportunity, loss of data, loss of goodwill, work stoppage, any personal and / or commercial loss, compensation for mental agony, anxiety etc.
- Page 21 Agreements By purchasing digital body scale , you hereby agree with all the terms and conditions of warranty, warnings and precautions.
- Page 24 2K DASH CAM Front and Rear with WIFI Questions or Inquiries? support@alliums.com.au...
