Summary of Contents for Coastal Legend 400 Series

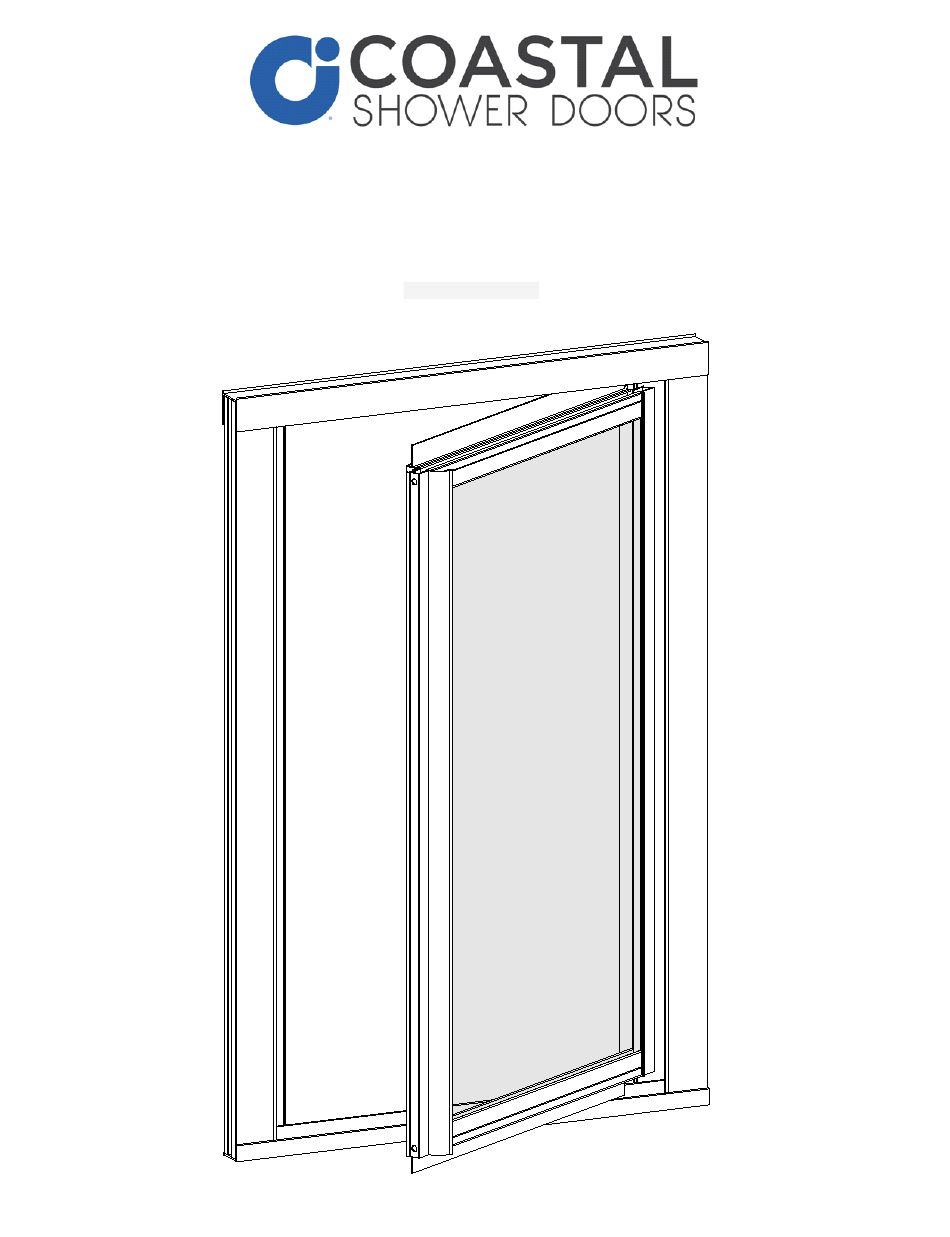

- Page 1 L e g e n d Shower enclosure installation Instructions (400 Series) PATENTS PENDING Legend Door (NVR) 01-29-2015...
- Page 2 EXPLODED VIEW OF MODULAR INLINE PANEL (RIGHT HAND HINGED SHOWN) - - - l l i s l i e l i e l i - - - - - - - - - - - - - - - - - - c i t - - -...
- Page 3 STEP 1 Position Door Assembly Side Wall Jamb Determine and mark the curb centerline as shown in figure 1. Measure opening width and trim Sill to 1/16" less than measurement optained. Caulk underside of Sill (B) and position it on the center line . Insure that Sill lip faces toward outside of enclosure.
- Page 4 STEP 3 Install Door Assembly figure 3 Detail shows strike on left side / hinge post right side, see also exploded view on sheet 2 Lift Door Assembly (C) onto base and positon it on top of Sill (B) see exploded view on sheet 2. Now slide Door Frame (C) into Wall Jamb (A) as shown in figure above.
- Page 5 STEP 5 Install Header and Caulk outside of Unit figure 5 Measure opening width at top of unit and trim Header (H) to 1/16 less then measurement obtained. Position Header (H) into place as shown in figure and secure to unit utilizing three (2) self drilling screws (G). TO ENSURE A LEAK PROOF INSTALLATION: Run a bead of clear mildew resistant caulking around the outside of shower enclosure where shower unit meets the shower base and where Wall Jambs meet the wall.
