Summary of Contents for Havensis BC-1224BBC

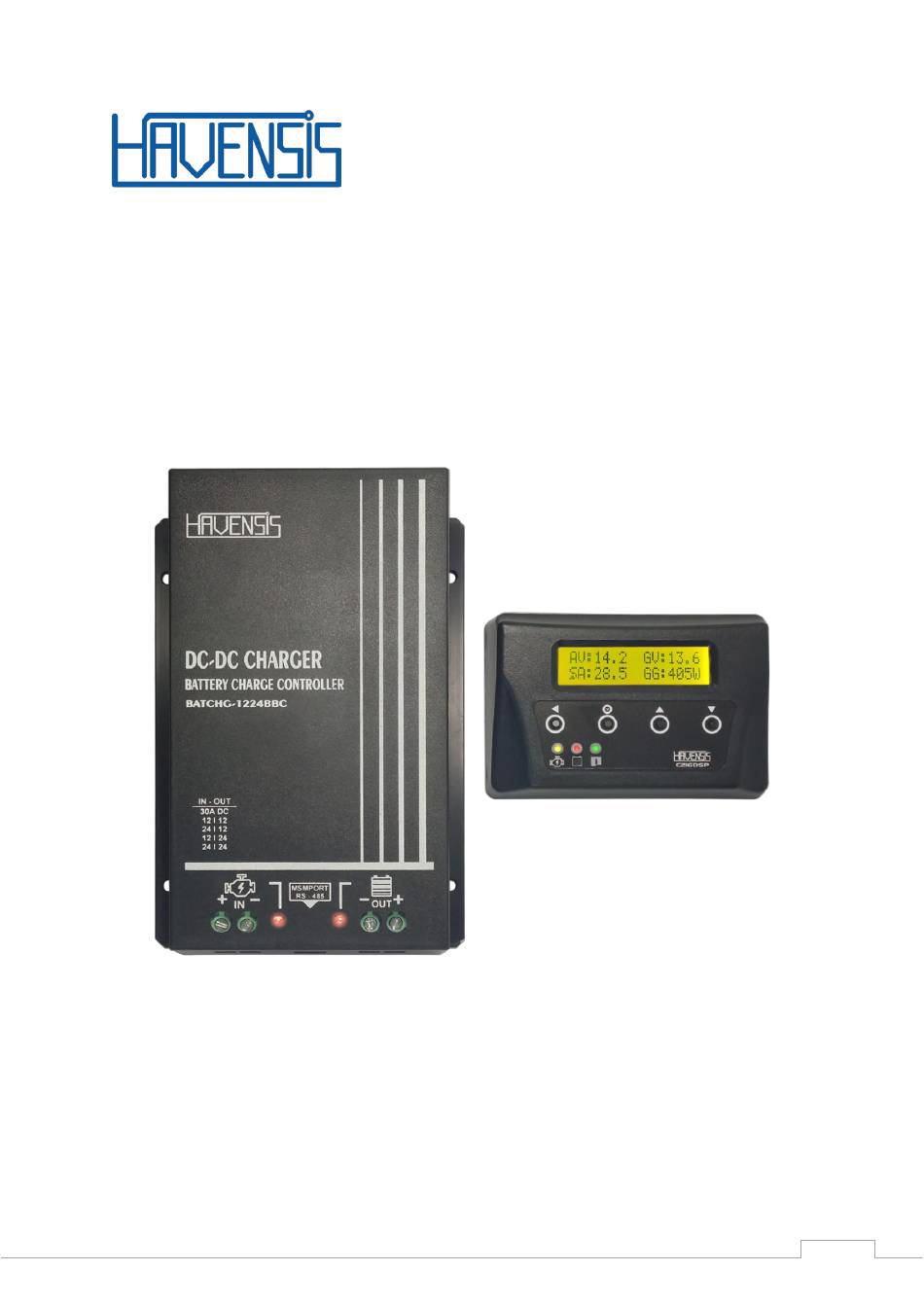

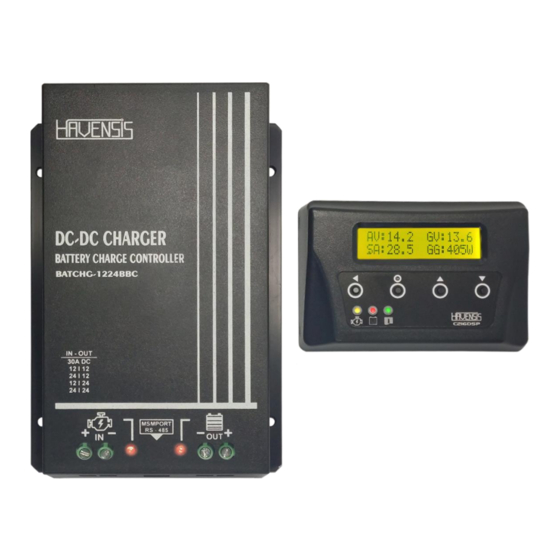

- Page 1 Havensis Kullanım Kitapçığı Rev1.0.211222 DC DC CHARGER (BC-1224BBC) User Manuel *Havensis reserves the right to change the specifications in this manual without notice.
-
Page 2: Table Of Contents
Havensis Kullanım Kitapçığı Rev1.0.211222 Contents Contents ..............................1 Security Warnings ..........................2 Device Features ............................3 Alternator Charge mode ........................3 Bidirectional Charge Mode ......................... 3 All Parameters Programmable ....................... 3 Installation Steps ............................ 4 Mounting Instruction ......................... 4 Assembly Warnings ........................4 Cable and Fuse Connections ...................... -
Page 3: Security Warnings
Security Warnings Do not operate your charger without reading and understanding the user manual. Install your device according to the installation instructions in this manual. Havensis recommends having the charger installed by a qualified professional. The manufacturer accepts no liability for any damage in the following cases: •... -
Page 4: Device Features
Havensis Kullanım Kitapçığı Rev1.0.211222 Device Features Alternator Charge mode After the device fills the starter battery with the energy produced by the alternator, it ensures full and safe charging of the batteries for a lifetime. Thanks to the 3-stage charging function and current limitation, the battery voltage level can be adjusted and a constant current of up to 30 amps can be passed regardless of the alternator voltage and current. -
Page 5: Installation Steps
Havensis Kullanım Kitapçığı Rev1.0.211222 Installation Steps Mounting Instruction When choosing a location for the device, make sure it is as close as possible to the battery you are going to charge.. When positioning the device, a space of 15 cm from the bottom and top and 5 cm from the sides should be left. -
Page 6: Menus And Settings
Havensis Kullanım Kitapçığı Rev1.0.211222 Menus and Settings Buttons The functions of the 4 buttons (Back, OK, Up, Down) in the Buttons section vary according to the menus.. Device LEDs The states and meanings of the LEDs are shown in the table below. -
Page 7: Main Menu
Havensis Kullanım Kitapçığı Rev1.0.211222 Leds The states and meanings of the LEDs are shown in the table below. Status Functions Closed Vehicle not connected Vehicle has just been Flashing connected, device is preparing Yellow for charging The vehicle has started... -
Page 8: Settings Menu
Havensis Kullanım Kitapçığı Rev1.0.211222 The main menu screens and their explanations are given below. Screen Description AV: Battery voltage | GV: Vehicle voltage SA: Charge Current | GG: Input Power Note: If DCDC has been turned off in software, you can see the "Charging Stopped"... - Page 9 Havensis Kullanım Kitapçığı Rev1.0.211222 Setting menu screens and explanations are given below. Screen Description Ekran The menu to set the Battery Type (Life Battery) Sealed/AGM | gel | juicy | user | Lithium Battery Charge Voltage Adjustment (Life Battery) "Balance" and "Float" voltage settings for user battery type.
-
Page 10: Bidirectional Settings Menu
Havensis Kullanım Kitapçığı Rev1.0.211222 Bidirectional Settings Menu When the Working Mode(Çalışma Modu Ayarı no:7) is set to "Takviye", the home screen will change to charging stopped. Press and hold the "OK" button to start charging. Görünüm Açıklama Ekran AV: Life Battery voltage GV: Input Voltage (starter battery) -
Page 11: Technicial Specifications
Havensis Kullanım Kitapçığı Rev1.0.211222 Technicial Specifications Product features 12/12-30 12/24-15 24/12-30 24/24-30 (360 W) (360 W) (360 W) (720 W) Model BC-1224BBC Input voltage range 10-17 V 10-17 V 20-35 V 20-35 V Low voltage shutdown 14 V 14 V... -
Page 12: Product Dimensions
Havensis Kullanım Kitapçığı Rev1.0.211222 Product Dimensions External Dimensions 194 x 132 x 61 mm Mounting Hole Spacing 136.0 x 121.0mm Battery Input Terminal 10mm2 Max. Cable Cross Section Vehicle Battery Input Terminal Cable Cross 10mm2 Max. Section Protection Class IP22 Weight 1.2Kg... -
Page 13: Warranty Certificate
Havensis Kullanım Kitapçığı Rev1.0.211222 Warranty Certificate Warranty period; It starts from the date of delivery of the goods to the consumer and is 2 years. • The repair period of the product is maximum 20 working days. This period starts from the date the goods reach the service station.
