Hunter Electronics GPS-DTR 25000 Quick Start Manual

DOG TRAINING COLLAR WITH GPS TRACKER
MODELS: GPS-DTR 25000-25002-25003 (GPS and training function)

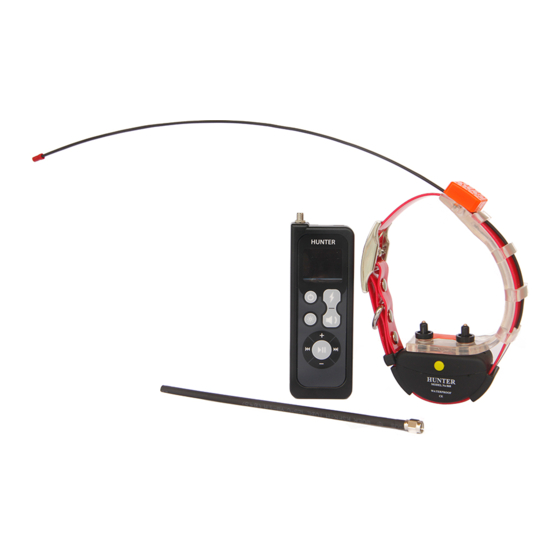

INCLUDES:
GPS Collar, USB Charger, USB Cable, USB
Adapter, Remote Control Antenna , Short
and long spikes(for GPS-DTR-25000 only).

PREPARING THE COLLAR FOR FIRST USE:

Charge the collar for 7-8 hours. The battery has a standby time of 20 hours when fully charged. Connect the small USB adapter to the USB cable,
and then the cable to the USB charger. Then connect the charger to the collar, lift the orange plastic protective cover and connect the charger. Now
turn on the collar. To turn it on, hold the remote control part (where the built-in magnet is located) at the point where the collar indicator led is loc-
ated for 1 second. Then remove the remote control. The red indicator led on the collar will flash fast during the charging .Then the collar will turn
off after 2 minutes for saving power purpose. The led will continuously indicate ON once the collar battery is full. In order to check the led status
during the charging process, you should turn on the collar using the magnet. After 7-8 hours of charging remove the charger. To turn off the collar,
hold the remote control part (where the built-in magnet is located) for 4 seconds at the point where the collar indicator led is located. The remote
control should be charged for 4-5 hours. Connect the charger to the remote control on the USB connector on the top.

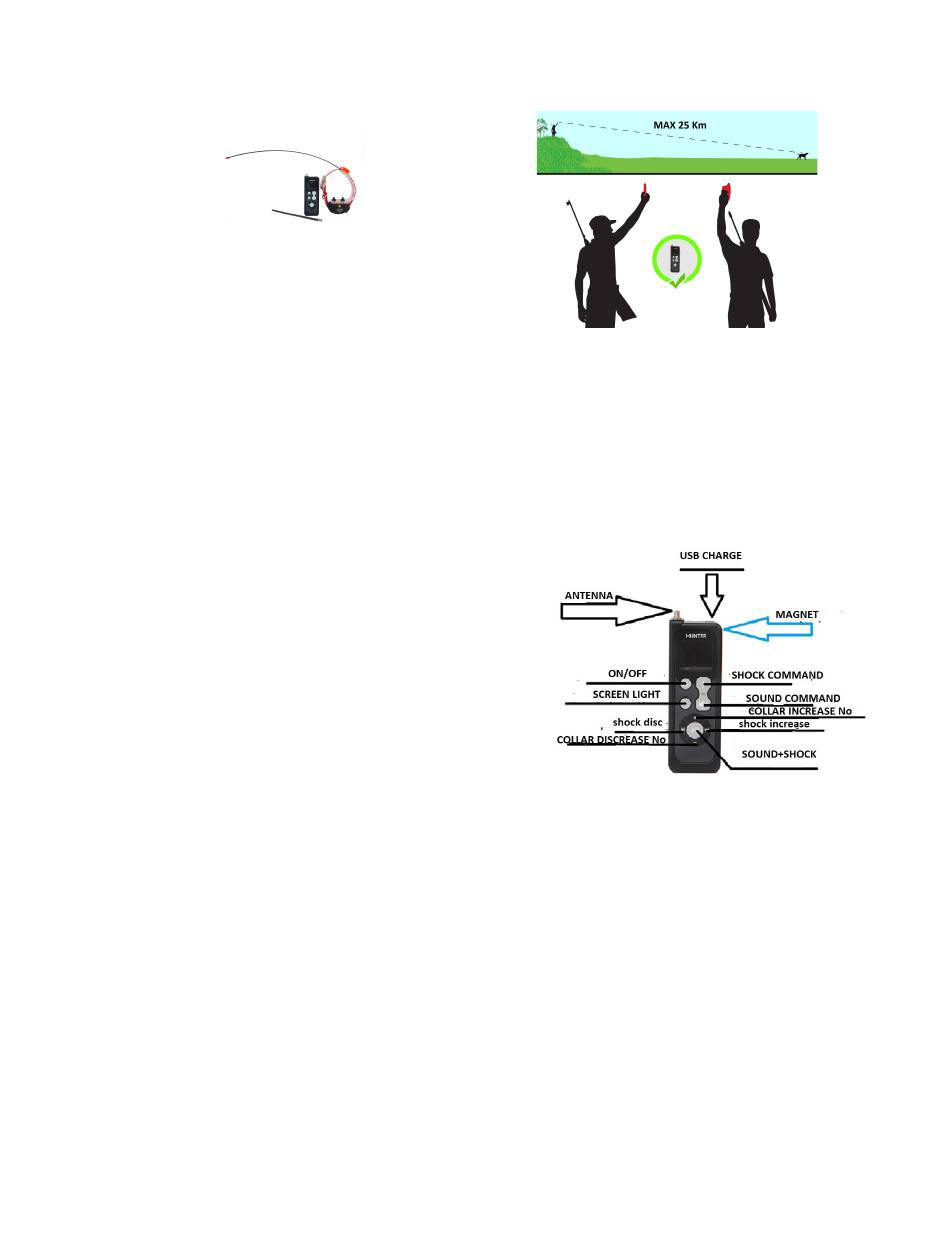

PAIRING AND USE THE COLLAR:

The collar you purchased is already paired with its remote control. If you want to pair it again, follow the instructions below. The remote control
can control up to 9 collars. The remote control has + and - buttons for collar selection to which you can send commands. Turn on the remote control
from the ON / OFF button, then turn on the collar. When the collar is turned on, the red indicator led of the collar flashes. Press for 4-5 seconds the
display light button, and the speaker icon on the screen will start flashing. The remote control is in tuning mode. Then hold the back of the remote
control (where the built-in magnet is located) for 10 seconds at the point where the collar indicator led is located. Remove the remote control from the
collar after 10 seconds and if you hear 3 consecutive beeps from the collar, then press the shock command button for 2 seconds. You will hear a beep,
indicating that the sync was successful. Repeat the same procedure if you want to sync other collars. After you finish adjusting the collars, press the
audio command button to return the remote control to normal operation. When you press the remote control shock button, a shock command is sent to
the corresponding collar. Each time you press the audio command or the push button or the audio + shock button, the screen flashes, indicating that
the command is being sent to the collar. The level of shock fluctuates with the increasing number of buttons on the remote control from 1 to
8. Level 1 is the lowest and level 8 is the highest. After use, you can turn off the remote control using the ON / OFF switch.
The device is specially designed for hunting dogs and works under harsh conditions (rain, dense vegetation etc). It is lightweight, durable and ideal
for both small and large dog breeds. The collar should be positioned on the bottom of the dog's neck. The two pins should touch the dog's skin so that
it can feel the stimulus. Place it tight on the neck and if the dog has long fur, trim the fur slightly so that the pins make contact with the skin. You
need to find the right power level for your dog. Start from level 1 and if you see no reaction use level 2. Increase the level until you see a reaction
from the dog. When the dog reacts then this is the level you need to use. If you use level 8 which is the highest and you see no reaction from the dog
then the collar has not been properly placed on the neck. It should be tight and if the dog has long fur, trim it so that the pins make contact with the
skin. Use either the short or long pins depending on the dog's fur.
charge once per month during the period when you do not use the device. Charged in a dry environment with temperatures below 40 degrees. We ad-
vise you to charge the collar and the remote control before each use.
GPS 25000-25002-25003 (no training function)
Always be present during the charging process of the devices. It is recommended to
