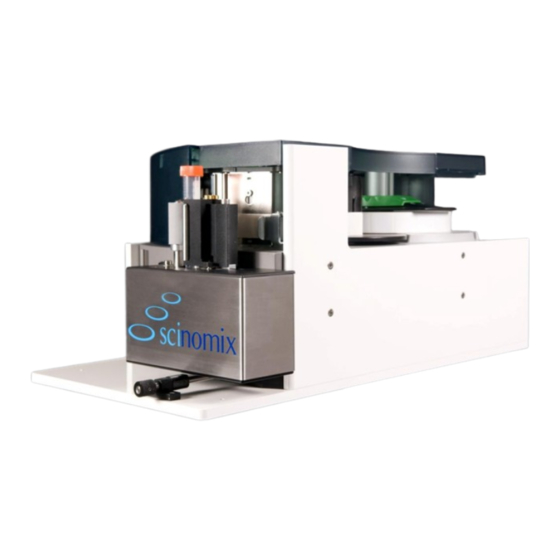

Summary of Contents for Scinomix SCI-PRINT SOLO

  • Page 1 SCI-PRINT SOLO CINOMIX UIDE Scinomix SCI-PRINT SOLO...

  • Page 2: General Information

    Information provided by Scinomix is believed to be accurate and reliable. However, the user is responsible for the proper and correct use of the product. If the user does not follow the instructions given in this manual, Scinomix does not take any responsibility for injuries or damages caused by the Scinomix product.

  • Page 3: Table Of Contents

    Service and Maintenance........................11 Symbols on Equipment ........................11 Chapter 2. Startup............................. 12 Mechanically Integrating the Sci-Print SOLO to an Automated System ..........12 Mounting bracket 1045-600-052-A ....................12 Left view..............................13 Front View (Roller extended for Vial Placement/Pickup – Larger diagram in Appendix A)....13 Top View (Roller extended for Vial Placement/ Pickup –...
  • Page 4 4 Table of Contents Air................................14 Power ..............................14 RS232 ..............................14 Starting the Sci-Print SOLO ........................14 Using the Sci-Print SOLO User Interface for Setup and Diagnostics ............15 Chapter 3. Label Design..........................16 Overview ..............................16 Defining Label Stock..........................16 Defining Label Text and Print Layout ......................18 Checking Label Text and Layout......................20...

  • Page 5: Chapter 1. Introduction

    5 Chapter 1. Introduction Chapter 1. Introduction Hardware Overview Please review the following diagrams and familiarize yourself with the terminology used. Front View Figure 1a. Scinomix Sci-Print SOLO Version 1.2.0.1002...
  • Page 6 6 Chapter 1. Introduction Left View Figure 1b. Scinomix Sci-Print SOLO Version 1.2.0.1002...
  • Page 7 7 Chapter 1. Introduction Right View Figure 1c. Scinomix Sci-Print SOLO Version 1.2.0.1002...
  • Page 8 See the picture below for the annotated connection panel on the end of the instrument: NOTE: Do not connect to the Ethernet or USB ports on the connection panel unless directed to do so by Scinomix. Functionality of the machine may be adversely affected. Scinomix Sci-Print SOLO Version 1.2.0.1002...

  • Page 9: Overview

    9 Chapter 1. Introduction Overview The Scinomix Sci-Print SOLO is a single process tube labeler that is mainly used as part of an integration system. Typically it is integrated with an automated sample handling instrument. Once the label stocks and label text layouts are defined, the printing and applying of labels is carried out under the control of the master instruments’...

  • Page 10: Health And Safety

    Personal Protective Equipment (PPE) The Sci-Print SOLO does not require the use of any special PPE. However, the user should adhere to any PPE standard in the laboratory in which the SOLO is installed.

  • Page 11: Installation

    11 Chapter 1. Introduction Installation The Sci-Print SOLO should be installed on a flat, smooth benchtop clear of obstructions. Installation of the instrument should be carried out by a Scinomix Service Technician or Scinomix- approved trained personnel. Noise Levels During normal operation the level of airborne noise emitted by the robot will not exceed 70db measured at a distance of 1 meter.

  • Page 12: Chapter 2. Startup

    Position both brackets on the mounting surface, according to the supplied dimensions in Appendix A, and bolt down using 5mm screws in the appropriate slots. The feet of the Sci-Print SOLO should now locate in the recessed holes in the brackets.

  • Page 13: Left View

    The shaded red area indicates the placement of the tube in the roller Front View (Roller extended for Vial Placement/Pickup – Larger diagram in Appendix A) The red arrow indicates the placement of the tube in the roller Scinomix Sci-Print SOLO Version 1.2.0.1002...

  • Page 14: Top View (Roller Extended For Vial Placement/ Pickup - Larger Diagram In

    Top View (Roller extended for Vial Placement/ Pickup – Larger diagram in Appendix A) The red arrow indicates the placement of the tube in the roller Connecting the Sci-Print SOLO Connect the air on the back side of the instrument by pushing the blue air line into the air input.

  • Page 15: Using The Sci-Print Solo User Interface For Setup And Diagnostics

    15 Chapter 2. Startup NOTE: It may take up to 1 minute for the Sci-Print SOLO instrument to become ready after power on. Before this time, communication with the instrument is impossible and any attempt to initialize the device driver will fail.

  • Page 16: Chapter 3. Label Design

    Defining Label Stock To use the label editor, go to the configuration menu on the Main Screen, then select “Label Stock” The Label Stock Editor Screen will be displayed: Scinomix Sci-Print SOLO Version 1.2.0.1002...
  • Page 17 You can also create a new label, copy an existing label, and delete an existing label from the Label Stock Editor screen. Note that Scinomix can provide default settings for many different label types. Scinomix Sci-Print SOLO Version...

  • Page 18: Defining Label Text And Print Layout

    The Label Document Configuration screen will open and display the label used most recently . Use the drop down menu to select another document, or use the New, Copy, or Delete buttons to create, copy, or delete label documents, respectively. Scinomix Sci-Print SOLO Version 1.2.0.1002...
  • Page 19 Position field. The text can also be angled as desired. Note that once the text has been displayed on the label preview screen, the user can click on the text and drag and drop to the desired Scinomix Sci-Print SOLO Version 1.2.0.1002...

  • Page 20: Checking Label Text And Layout

    Because the actual label text is coming from the controlling instrument, the text shown on the Label Preview is merely sample text. The displayed text is listed in the Editable Label Fields. To check the Scinomix Sci-Print SOLO Version 1.2.0.1002...

  • Page 21: Chapter 4. Sci-Print Solo Software Integration Interface

    Chapter 4. Sci-Print SOLO Software Integration Interface The driver provided by Scinomix for the Sci-Print SOLO is a Microsoft .dot net assembly using the version 3.5 of the .dot net framework. The following methods are made available to facilitate the operation of the device by use of these low level calls.
  • Page 22 22 Chapter 4. Sci-Print SOLO Software Integration Interface Public Function ExtendRoller() As Boolean Description: Extends roller stage ready for robotic arm to place or pickup tube Parameters: None. Returns: True = Ready, False = Error Public Function GetLabelList() As System.Collections.Generic.List(Of String)
  • Page 23 Public Sub Dispose() Dispose any in use managed objects Description: Parameters: None. Returns: None (ByVal CommPortName As String) As Boolean Public Function Initialize Description: Initializes the communication interface to the Sci-Print SOLO through the serial port. Parameters: Name Type Range Description portName String Serial port to use, com1, com2 etc.
  • Page 24 24 Chapter 4. Sci-Print SOLO Software Integration Interface ByVal Field10 As String) As Boolean Description: Prints and applies label to tube. Parameters: Name Type Range Description LabelName String Name of label Document To Use field1 String Data for field 1...

  • Page 25: Errors Codes And Descriptions

    25 Chapter 4. Sci-Print SOLO Software Integration Interface Errors Codes and Descriptions The following error codes and descriptions are retrieved by calling GetLastError. Errror Number Description Unknown = -1 Unknown Error Not_Initialized =2 Device not Initialized UnHandled_Exception = 99 Unhandled Exception...
  • Page 26 26 Chapter 4. Sci-Print SOLO Software Integration Interface Printer_Input_Buffer_Overflow_Error = 222 Printer Input buffer overflow Printer_Printhead_Too_Hot_Error = 223 Printer Print head overheated Printer_External_IO_Error = 224 Printer External I/O error Printer_Printhead_Damaged_Error = 225 Printer Print head error Printer_Unable_To_Parse_Status_Error = 226 Printer Print head damaged...

  • Page 27: Sample Vb.net Application

    27 Chapter 4. Sci-Print SOLO Software Integration Interface Sample vb.net Application A functioning vb.net sample application is supplied with the driver which can be used as an example and to test the Sci-Print SOLO functionality. All of the functionality of the device driver is illustrated on the sample screen. Before any of the functions can be used, the driver initialize function has to be invoked.

  • Page 28: Chapter 5: Maintenance

    Loading Labels from a Roll Refer to the picture below and the corresponding instructions. The white arrows indicate the direction of the barcode labels 1. Unlock the label holder on the label source spool and pull up to remove Scinomix Sci-Print SOLO Version 1.2.0.1002...
  • Page 29 (the key is built into the print head, pull up to remove it for use) unscrew the top guide pin and move it down so that it is aligned with the edge of the barcode labels. When the guide pin is in place, tighten the screw. Scinomix Sci-Print SOLO Version 1.2.0.1002...
  • Page 30 30 Chapter 5: Maintenance Note: In most newer Scinomix printers, a tensioning device has been added to the printer to optimize barcode printing. If your instrument has this device, you should first thread your labels through the tensioner as shown below: Scinomix Sci-Print SOLO Version 1.2.0.1002...

  • Page 31: Loading Ribbon

    Then turn the entire spool counterclockwise until the ribbon is fully threaded. 6. Turn the green lever on the print head clockwise to close the print head. Scinomix Sci-Print SOLO Version 1.2.0.1002...

  • Page 32: Cleaning The Print Head

    This screen displays low-level hardware functions of the instrument and is not used during routine operation of the SOLO. Hardware diagnostics are intended as a troubleshooting tool and can be carried out in conjunction with a Scinomix Technical Support Representative. Scinomix Sci-Print SOLO Version...

  • Page 33: Outputs

    “On”, a blank circle indicates “Off”. Clicking the red circle turns the output off, and clicking again turns the output on. You will see the associated device on the machine move in accordance with its new setting. Scinomix Sci-Print SOLO Version 1.2.0.1002...

  • Page 34: Inputs

    Serial Communication Allows the user to send commands directly to the various motors and the printer and shows their response. This would normally be used only when Scinomix is setting up your machine. Scinomix Sci-Print SOLO Version 1.2.0.1002...

  • Page 35: Appendix A. Machine And Mounting Dimensions

    35 Appendix A. Machine and Mounting Dimensions Appendix A. Machine and Mounting Dimensions Top View (Dimensions in mm) Scinomix Sci-Print SOLO Version 1.2.0.1002...
  • Page 36 36 Appendix A. Machine and Mounting Dimensions Front View (Dimensions in mm) Scinomix Sci-Print SOLO Version 1.2.0.1002...
  • Page 37 37 Appendix A. Machine and Mounting Dimensions Mounting Bracket Dimensions relative to Sci-Print SOLO. Note that the mounting brackets will not normally be seen from the top of the machine and are visible here only for clarity (Dimensions in mm).

  • Page 38: Appendix B: Conversion Chart From Mpa To Psi

    38 Appendix B: Conversion Chart from MPa to PSI Appendix B: Conversion Chart from MPa to PSI Pounds per Square Inch (psi) Megapascals (MPa) 0.41 0.48 0.55 0.62 Scinomix Sci-Print SOLO Version 1.2.0.1002...

  • Page 39: Appendix C: Declaration Of Conformity

    BS EN 61010-1:2001 - Safety requirements for electrical equipment for measurement, control and laboratory use. Conforms with the protection requirements of Council Directive 93/68/EEC, the CE Marking Directive. Date of Issue: 3/26/2013 Place of Issue: Earth City, MO, USA Name: Nigel Malterer Signature: Scinomix Sci-Print SOLO Version 1.2.0.1002...
  • Page 40 ARTICLE 1 - DEFINITIONS 1.01 “Program” means Scinomix computer program(s) and related documentation as licensed from Scinomix, including all product components, templates, and subsequent releases provided by Scinomix under the terms of this Agreement. 1.02 “Proprietary Information” shall mean proprietary and trade secret information embodied in software and other...
  • Page 41 2.07 No rights or licenses are herein granted to LICENSEE, expressly or by implication, to use the names Scinomix Corporation, or any trademark or trade name owned by Scinomix, or any trademark or trade name which may cause confusion as to origin and source of manufacturer between Scinomix and LICENSEE.
  • Page 42 ARTICLE 3 - PROPRIETARY RIGHTS AND CONFIDENTIALITY 3.01 Scinomix represents and warrants that the Program is and shall at all times be and remain the sole and exclusive property of Scinomix and the third party Licensors from which Scinomix has obtained the right to grant, and to grant others the right to grant sublicenses.
  • Page 43 43 Appendix D 4.03. IN NO EVENT DOES SCINOMIX AUTHORIZE YOU OR ANYONE ELSE TO USE THE PROGRAM WHERE THE PROGRAM’S FAILURE TO PERFORM CAN REASONABLY BE EXPECTED TO RESULT IN ANY TYPE OF PHYSICAL INJURY, OR IN LOSS OF PROPERTY, OR LOSS OF LIFE. ANY SUCH USE IS ENTIRELY AT YOUR OWN RISK, AND YOU AGREE TO HOLD SCINOMIX HARMLESS FROM ANY AND ALL CLAIMS OR LOSSES RELATING TO SUCH UNAUTHORIZED USE.
