Summary of Contents for Street Barbell MB 7.45

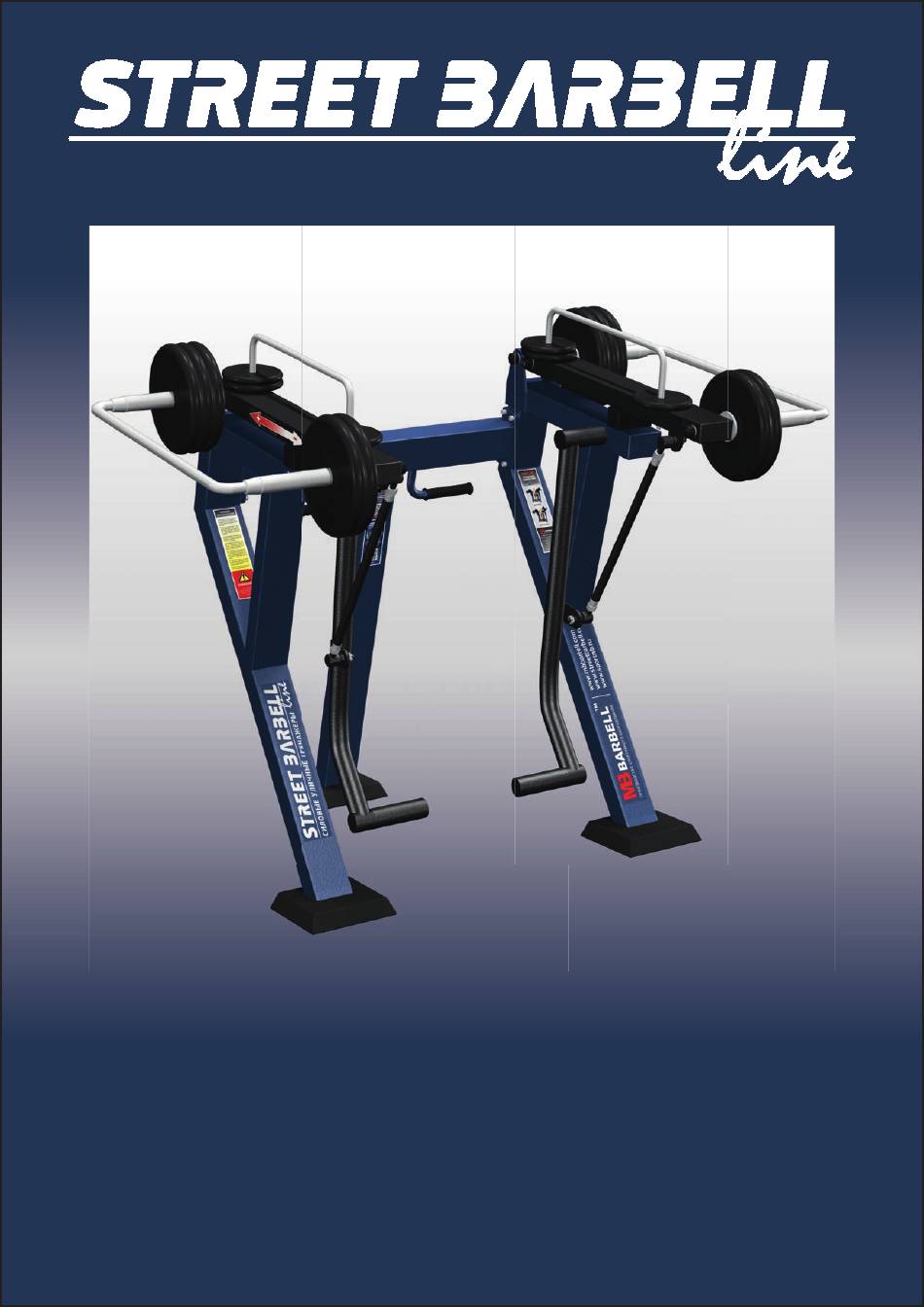

- Page 1 Art.Nr.3254107 Professional Power Outdoors MB 7.45 GLUTEUS RADIAL in standing position with variable load ASSEMBLY MANUAL...
- Page 2 QUALITY MANAGEMENT SYSTEM REGISTERED TO: ISO 9001:2008 ISO 9001:2011...
-
Page 3: Table Of Contents
CONTENTS GENERAL VIEW OVERALL DIMENSIONS* PURPOSE BASEMENT SEQUENCE OF OPERATIONS BASEMENT EXEMPLAR INSTALLATION DIMENSIONS PARTIAL ASSEMBLY TOOLS REQUIRED SEQUENCE OF OPERATIONS TABLE 1 CONNECTING ROD ADJUSTMENT EXPLODED VIEW SPECIFICATION MAINTENANCE VISUAL ROUTINE INSPECTION FUNCTIONAL INSPECTION MAIN ANNUAL INSPECTION REGULAR MAINTENANCE REPAIRS GUARANTEE TERMS AND CONDITIONS GUARANTEE CARD... -

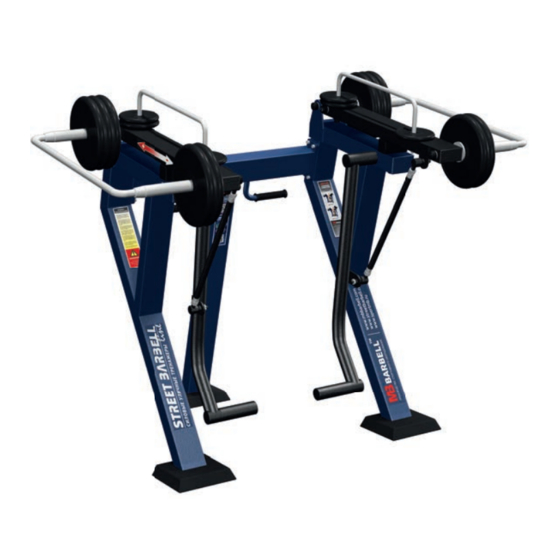

Page 4: General View
GENERAL VIEW OVERALL DIMENSIONS* * Herein and hereinafter, the dimensions are in millimeters. -
Page 5: Purpose
PURPOSE The exercise machine is designed to train gluteus maximus muscles, semitendinosus muscles and semimembranosus muscles. Max leg load: 760 N ACTIVE MUSCLE GROUP BASEMENT The foundation work should be done when air temperature is above 0°C (32°F). Anchors should be installed 28 days after cast-in-place concreting. Nevertheless, if foundation work is planned to be done when air temperature is below 0°C (32°F), workmen should follow cold weather concreting recomendations (special recomendations for your State and region). -
Page 6: Sequence Of Operations
SEQUENCE OF OPERATIONS 1. Excavate a foundation pit and pour leveling course (gravel) 2. Install formwork and reinforcing framework (see detail on page 7) 3. Cast concrete and wait 28 days 4. Earth a foudation and install anchor bolts (12 pcs) 5. -
Page 7: Basement Exemplar
BASEMENT EXEMPLAR *IMPORTANT! Foundation works should be done according to the building codes of your State. -
Page 8: Installation Dimensions
INSTALLATION DIMENSIONS... -
Page 9: Partial Assembly
The sequencing of assembly and quantity of weights are shown, using exercise machine 7.44 as an example. The rest of Street Barbell machines should be assembled the same way. The table 1 (page 10) contains a quantity of weights for each product of Street Barbell series. -
Page 10: Table 1
2,5 kg each), as shown in the figure. Then attach a small guide rail to a lever by nuts. It’s done! ← Detail A. TABLE 1 Street Barbell exercise machines. Set of weights. Part No Title 10 kg 2,5 kg... - Page 11 MB 7.43 load Leg extension in standing position with MB 7.44 variable load Gluteus radial in standing position with MB 7.45 variable load Vertical rope pull in standing position MB 7.46 with variable load Euro classic with handles: MB 7.47 Street workout bodyweight exercises 10kg, 15kg, 20kg.
-
Page 12: Connecting Rod Adjustment
CONNECTING ROD ADJUSTMENT... -
Page 13: Exploded View
EXPLODED VIEW The equipment design and specifications are subject to change without notice. -
Page 14: Specification
SPECIFICATION Part NO Description Note Assembly units MB 7.43.01.00 Left stanchion MB 7.43.01.00-01 Right stanchion MB 7.43.02.00 Stanchion MB 7.43.03.00 Left lever MB 7.43.03.00-01 Right lever MB 7.43.05.00 Left leg MB 7.43.05.00-01 Right leg MB 7.43.05.00 Adjustable connecting rod MB 7.43.04.00 Guide rail Parts K-22 (M14) -
Page 15: Maintenance
MAINTENANCE Equipment condition monitoring includes: 1. equipment inspection prior to commissioning; 2. visual routine inspection; 3. functional inspection; 4. main annual inspection. VISUAL ROUTINE INSPECTION The search for visual dangerous defect. It could be a result of vandalism, misuse or climate. The customer makes a schedule of visual routine inspection according to the rules of use. -
Page 16: Regular Maintenance
The decision about the necessity of carrying out a regular maintenance (and included operations) is based on the results of the visual routine inspection (of the functional inspection; of the main annual inpection). REGULAR MAINTENANCE Regular maintenance involves activities to support the safety and quality of the equipment and coating of the playground: 1. - Page 17 5. Loss checking of tightening torque of anchor nuts. The joint of exercise machine stanchion and the foundation should be firm and reliable. The clearance between the foundation and a stanchion plate is unacceptable. Besides, the clearance should not appear during a workout. Tighten an anchor nut and clearance will disappear.
-
Page 18: Repairs
REPAIRS Repairs include: • fasteners replacement; • welding; • equipment parts replacement (stanchions, discs, guide rails); • corrosion removal and equipment recoloring. -
Page 19: Guarantee Terms And Conditions
GUARANTEE TERMS AND CONDITIONS This guarantee does not affect your statutory rights under applicable national laws relating to the sale of consumer products. This product corresponds to the standard and it is suitable for use. The purpose of the product is training of human body muscles. -
Page 20: Guarantee Card
GUARANTEE CARD Serial number:___________________ GUARANTEE CARD #1 guarantee repair of exercise machine Vendor:________________________________________________________________________ ______________________________________________________________________________ Purchase date:_______________ L.S. _______________ seller’s signature Purchaser:______________________________________________________________________ Address of the purchaser:__________________________________________________________ Purchaser’s signature:__________________________ Defects eliminated_______________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ Vendor: __________________ Purchaser:_________________________________ ---------------------------------------------------------------------------------------------------------------------------------- Tear-off coupon of guarantee card #1 guarantee repair of exercise machine Date of repair:_______________________ Vendor:...
