17045-MG
SPEED
DRIVE
™
TIRE INFLATOR
INSTRUCTIONS FOR USE
Inflates Car Tires & Other Inflatables
ATTENTION! READ ALL INSTRUCTIONS AND WARNINGS CAREFULLY BEFORE USE
If you experience any problems with this product,
do not return it to or contact the store where it was purchased.
Contact Hopkins Manufacturing Technical Support at 1-800-524-1458.
Hopkins Manufacturing Corporation • 428 Peyton St., Emporia, KS 66801
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for MONKEY GRIP SPEED DRIVE 17045-MG
- Page 1 17045-MG SPEED DRIVE ™ TIRE INFLATOR INSTRUCTIONS FOR USE Inflates Car Tires & Other Inflatables ATTENTION! READ ALL INSTRUCTIONS AND WARNINGS CAREFULLY BEFORE USE If you experience any problems with this product, do not return it to or contact the store where it was purchased. Contact Hopkins Manufacturing Technical Support at 1-800-524-1458.
- Page 2 TABLE OF CONTENTS Introduction_____________________________________________________________________________ _2 General Safety Rules and Warnings________________________________________________________3 Quick Start Guide_____________________________________________________________________ ____4 Featured Product Illustrations____________________________________________________________ __5 Inflator Operation________________________________________________________________________ _6 Inflating Tires_________________________________________________________________________6 Inflating Sports Balls or Other High Pressure Small Inflatables_______________ ________________6 Maintenance_____________________________________________________________________________7 Trouble Shooting_______________________________________________________________________7-8 Warranty________________________________________________________________________________ _8 Contact Us____________________________________________________________________________ ___8 INTRODUCTION INSPECT INFLATOR AFTER UNPACKING After unpacking your inflator, carefully inspect the inflator to ensure there is no damage that may...
- Page 3 GENERAL SAFETY RULES & WARNINGS � Keep children and others away while operating inflator � Keep the inflator dry, clean and free from oil and grease. Always use a clean cloth when cleaning. Never use typical vehicle fluids such as brake fluid, gasoline, any petroleum products or strong solvents to clean inflator �...
- Page 4 QUICK START GUIDE NOTE: Read complete instruction manual before using inflator for the first time 1. Start vehicle 2. Plug in inflator 3. Check tire sidewall for max tire inflation pressure 4. Select desired pressure units by pressing “M” button and toggle between PSI, BAR &...

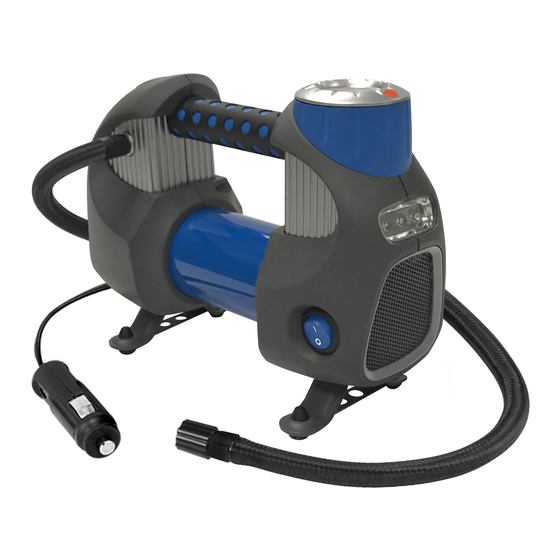

- Page 5 PRODUCT ILLUSTRATION SmartSTOP Back-Lit ™ Digital Gauge with Auto Shut-off and Countdown Timer Power Cord Work Light Wraps Around Base For Storage Inflator & Work Light Power Button 10 Foot 12 Volt Power Cord 48" Air Hose with replaceable fuse Inflation Rubber Feet Accessories...
- Page 6 INFLATOR OPERATION INFLATING TIRES 1. Make certain the inflator power button is in the off position. 2. Set emergency brake and start vehicle engine. 3. Insert the 12 Volt power plug into the vehicle’s 12 Volt DC power outlet. 4. Check manufacturer’s recommended tire pressure specifications indicated on the tire sidewall. TO ACTIVATE SmartSTOP FEATURE: ™...
- Page 7 MAINTENANCE 1. Your SmartSTOP inflator has a replaceable fuse providing maximum protection for the inflator ™ and/or your vehicle. 12 Volt Adapter Fuse Replacement Adapter Body Turn tip counterclockwise to unlock Fuse Adapter Body Fuse: Replace with fast blow 15 AMP, 250V, "...
- Page 8 WARRANTY LIFETIME WARRANTY Hopkins Manufacturing Corporation warrants this product will be free from defects in material and workmanship. Hopkins Manufacturing Corporation, at its option, will repair or replace this product or any component of the product found to be defective. Replacement will be made with a new or remanufactured product or component.
