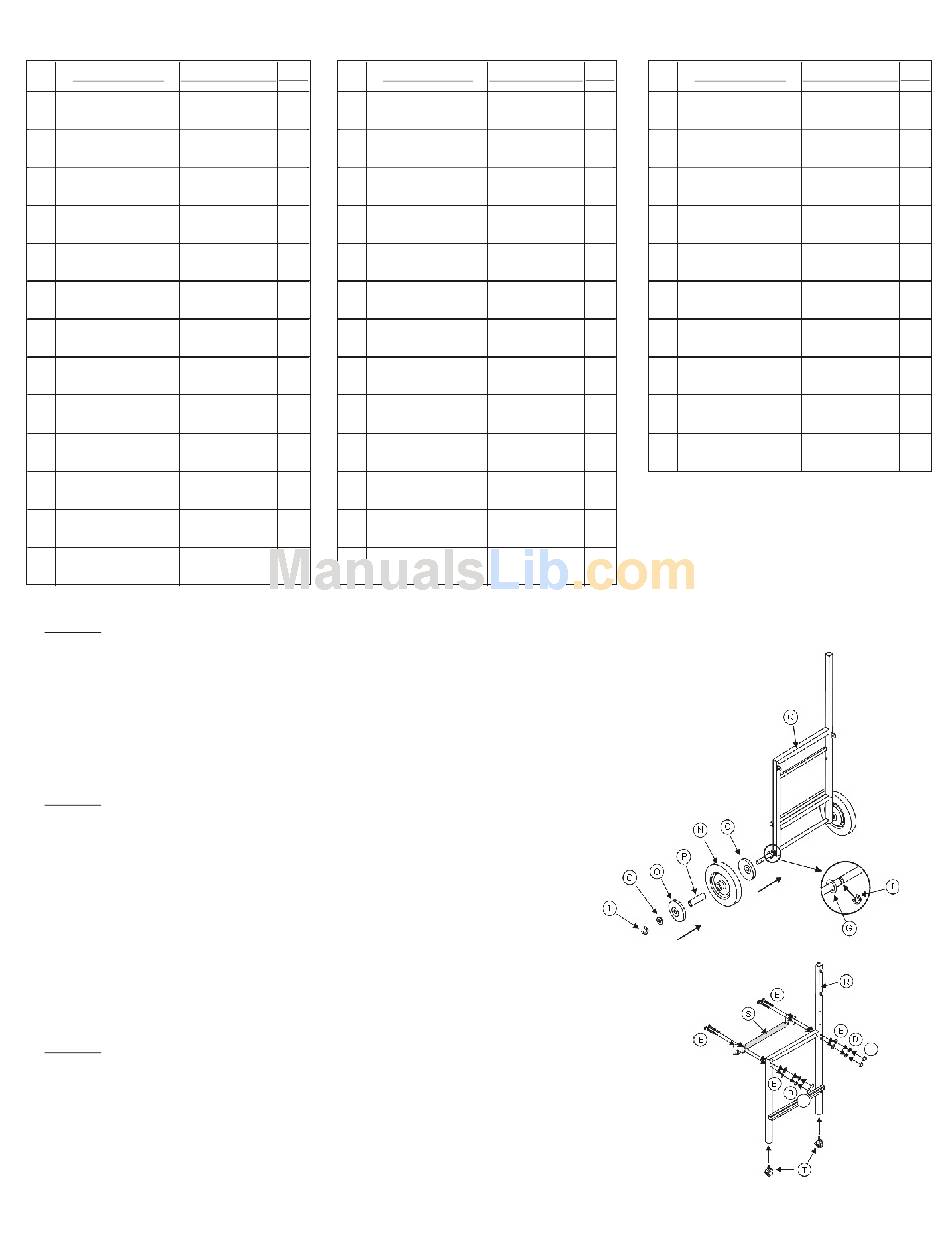

MULTI-PURPOSE WORK BENCH ASSEMBLY INSTRUCTIONS
DESCRIPTION
ORDER PART #
A
M10 X 55MM BOLT
B
M6 X 50MM BOLT
C
M6 X 16MM BOLT
D
M6 NUT
6MM WASHER
E
10MM WASHER
F
12MM WASHER
G
10MM END CLIP
H
I
12MM END CLIP
J
10MM PVC COVER
12MM PVC COVER
K
L
M6 PVC NUT COVER
M
WHEEL AXLE
WB0001
STEP 1
identify all parts packed in carton against the parts list. Remove all protective materials. Place parts
on a non-arasive surface to avoid scratching. If you are missing any parts or are unsure how to
proceed with assembly, call our Customer Service Center at 1-800-416-3511 (Mon - Fri 9a-5p
EST). Do not attempt assembly if any parts are missing or damaged.
Read entire assembly instructions before beginning assembly.
STEP 2 WHEEL ASSEMBLY
Insert wheel axle (M) through bottom shaft of right side support frame
(Q).so that it is centered inside the shaft with equal amount of axle on
each side. Snap 12mm end clip (I) on notch in axle closest to the right
side support frame (Q). Add the following parts to the axle in this order:
12mm washer (G), wheel cover (O), axle sleeve (P), wheel (N), wheel
cover (O), 12mm washer (Q), 12mm end clip (I) as shown in figure 1. Be
sure the wheel is inserted over the axle sleeve in a manner that allows it
to rotate freely. Secure the wheel assembly on the axle with the 12mm
washer clip (I). Repeat procedure for opposite side wheel.
STEP 3 LEFT SIDE SUPPORT FRAME ASSEMBLY
Screw in the two casters (T) into the bottom of the left side support frame (R) as
shown in figure 2. Add the cushion handle grip (S) to the left side support frame
(R) as shown in figure 2. Insert two M6 x 50mm bolts (B) through end of cushion
grip handle and through the holes in the left side support frame. Add a 6mm
washer (E), 6mm nut (D). Tighten with wrench. Do not over tighten. Add M6 PVC
cover to the end of each nut. Repeat on opposite side of cushion grip handle.
#92558
QTY
DESCRIPTION
LARGE WHEEL
N
3
WHEEL COVER
O
6
AXLE SLEEVE
16
P
RIGHT SUPPORT
12
Q
FRAME
LEFT SUPPORT
6
R
FRAME
CUSHION
5
S
HANDLE GRIP
4
T
CASTERS
2
FRONT SUPPORT
U
BAR
REAR SUPPORT
V
4
BAR
MIDDLE SUPPORT
W
2
FRAME
X
2
FRONT PANEL
Y
4
COILED SHELF
Z
1
SINK TOP BASIN
ORDER PART #
QTY
2
WB0002
AA
4
WB0003
BB
3
WB0004
CC
1
WB0005
DD
1
WB0006
EE
1
WB0007
FF
2
WB0008
GG
1
WB0009
HH
1
WB0010
I I
1
WB0011
JJ
1
TOOLS REQUIRED FOR ASSEMBLY
WB0012
Hex Wrench
1
Hex Bolt Driver
WB0013
1
WB0014
DESCRIPTION
ORDER PART #
DRAIN PLUG
WB0015
DOWEL RODS
WB0016
REAR FAUCET
WB0017
PANEL
FOLDING
WB0018
COUNTER
AXLE FOR
WB0019
FOLDING COUNTER
DRAWER
WB0020
BOTTOM TRAY
WB0021
"S" HOOKS
WB0022
FAUCET
WB0023
FOLDING COUNTER
WB0024
HINGE
Figure 1
Figure 2
QTY
1
3
1
1
1
1
2
6
1
2
PAGE 1
