Summary of Contents for WinBridge H5 Plus

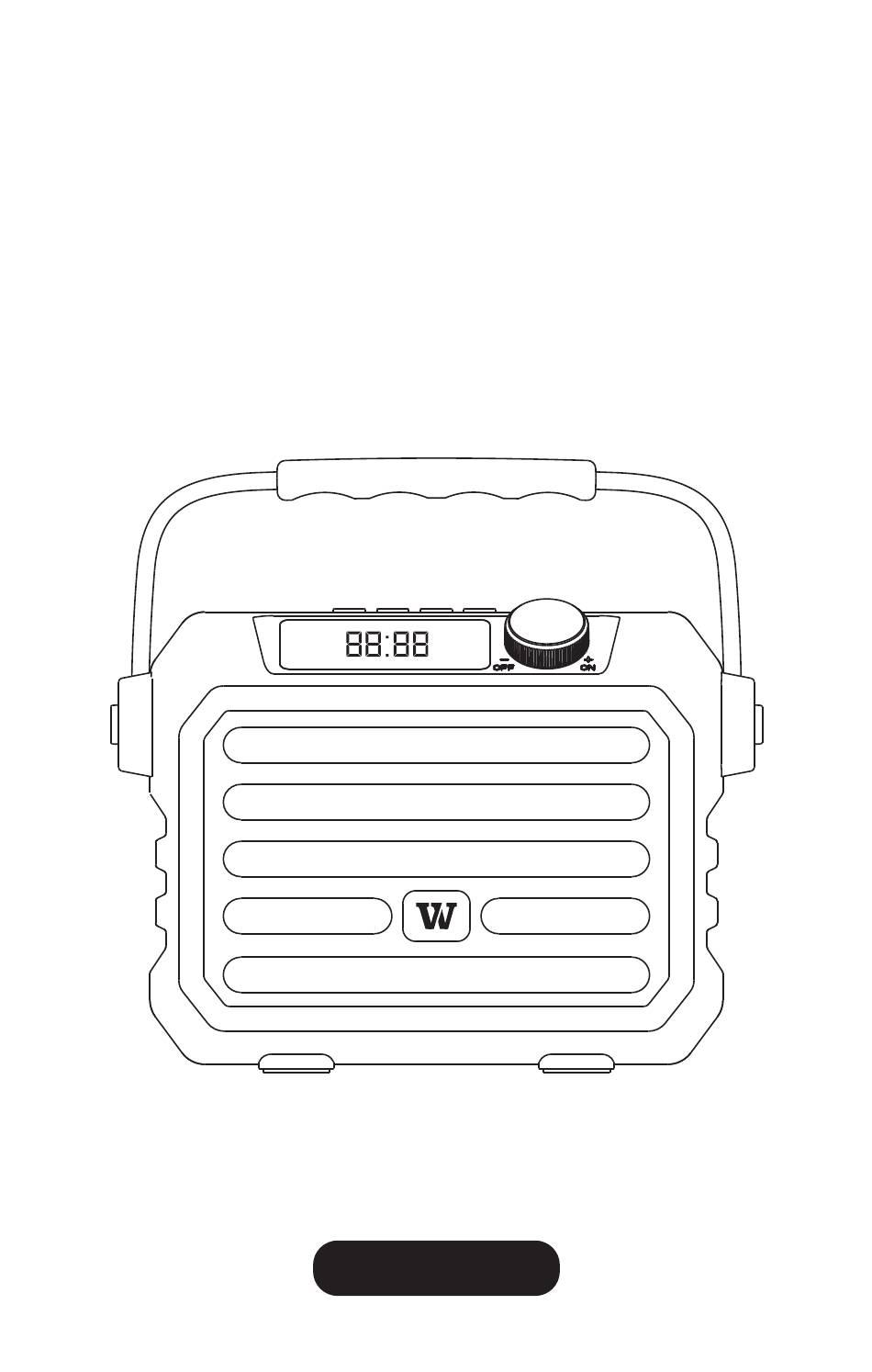

- Page 1 PORTABLE PA SYSTEM USER MANUAL H5 Plus...
- Page 3 MIC Volume ECHO Volume DC 9V TF Card Next Previous Record Play/pause Mode switching : Press one time to switch modes among UHF, Bluetooth, FM and USB drive play; ( If you plug USB drive ) : Previous : Next : Pause/Resume;...
- Page 4 …………………………… Pair Key ………………………… How to disassemble the wireless mic:...
- Page 5 Transmitter: Power ON/OFF Pairing key Volume - Volume + Charing indicator DC 5Vport Noted: The transmitter is used with lapel mic or stand mic, and only one microphone can be used with the speaker at the same time, which means if you have paired the headset, you can not use the transmitter, that you can not use lapel mic or stand mic.
- Page 6 MODES Press to change mode (except Recording mode). ………………… How to Pair Wireless Headset Microphone Turn on U8 wireless headset microphone with BIue light becomes constantly lights. Turn on speaker, short press M button to switch to UHF mode with screen shows: , then long press M button again for 3 seconds to enter UHF pairing mode with voice prompt: “UHF is waiting for...
- Page 7 …………… How to Use Wireless Lapel/Stand Mic System Turn on transmitter and speaker Turn on speaker, short press M button to switch to UHF mode with screen shows: , then long press M button again for 3 seconds to enter UHF pairing mode with voice prompt: “UHF is waiting for connection...”, meanwhile UHF indicator become flashes.
- Page 8 ……………………………………………………… How to Play FM ? Click to switch to FM DC 5V mode with a screen shows like and there will be voice prompts: FM Mode Long press for about 3s to start automatic channel search The search will last about 1 min, just leave it before it’ s done. There will be several or dozens of channels.
-
Page 9: Music Play
Music Play Refer to Supports: MODES 3.5mm micro Bluetooth flash drive audio cable SD card ………………………………………… How to Connect Blueooth ? Click to switch to Bluetooth DC 5V mode with a screen shows , and there will be voice prompts: Bluetooth is waiting for connection;... -
Page 10: Audio Format
How to Play Aux plug the 3.5mm audio cable into the AUX hole. 3.5mm audio cable connect to any device with 3.5mm audio output Audio Format supported: WAV WMA FLAC ……………………………… How to Play USB drive or TF card Just connect a USB drive or TF card, then speaker will play music automatically. - Page 11 …………………………………………… How to Charging Speaker? When working (but not charging) Enough Power indication: the battery sign on the screen normally on Low Power indication: the battery sign on the screen Blinks Charging speaker with plug included In charging status: the indicator flashes while charging;...
- Page 12 Please note: Use the included 9V AC power adapter to charge the speaker internal rechargeable battery. Plug adapter into 110~240 AC outlet. Connect the cable end into the DC 9V power input on speaker. It will normally take 3-5 hours to fully charge the battery. When charging is required, a voice prompt will indicate,“Low battery, please charge.”The battery indicator will blink while charging.
- Page 13 How to Charging Headset Microphone? Charging headset with cable included In charging status: the indicator shows red while charging; the red indicator goes off after charged Fully charged: fully. How to Charging Transmitter? Charging transmitter with cable included In charging status: the indicator flashes while charging;...
-
Page 14: Troubleshootings
1 * Charging Cable 1 * Transmitter 1 * Aux Cable 1 * Headset Microphone 1 * 9V Charger 1 * Lapel Microphone 1 * 5V Charger 1 * Stand Microphone 1 * Adjustable Waistband 1 * User Manual 1 * WinBridge Booklet... -
Page 16: After-Sale Service
After-sale service WinBridge provide one year warranty and lifetime technical support. info@winbridgepower.com Please be confident that Seller support is just a mail away from you in case you find any difficulty. Kindly do not hesitate to write back to us if you need any clarification or any kind of support.
