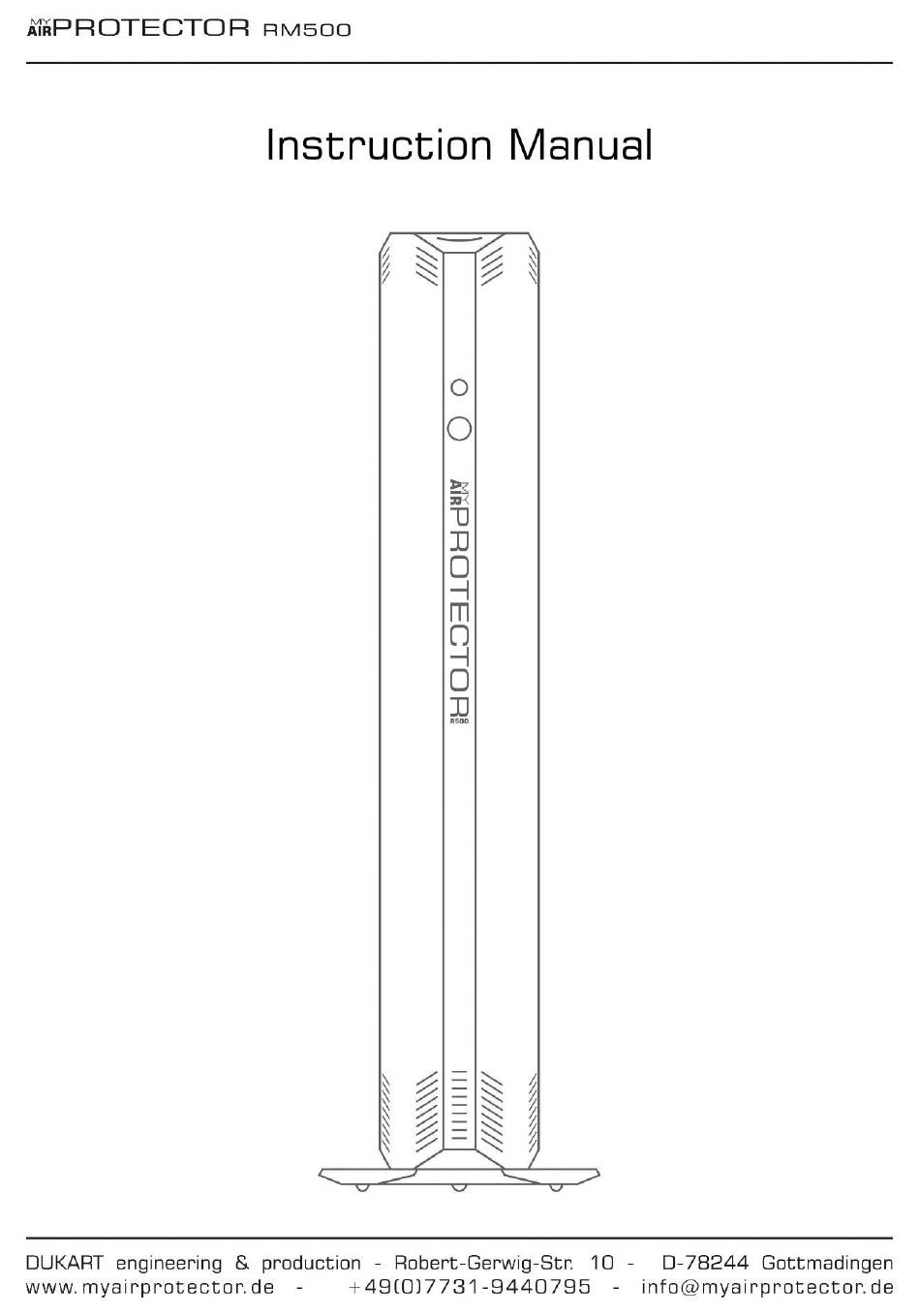

MyAirProtector ROOMMAP RM500 Instruction Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the ROOMMAP RM500 and is the answer not in the manual?

Questions and answers

Summary of Contents for MyAirProtector ROOMMAP RM500

Page 2: Table Of Contents
ROOMMAP Instruction Manual Table of Contents 1 Introduction 2 Label-specific information 2.1 Exclusion of Liability 2.2 Warranty 2.2.1 Performance data 2.3 Information on the manual 3 Safety references 3.1 Intended Use 3.2 Organizational measures 3.3 Staff selection and qualification 3.4 Safety references for particular operating phases 3.5 Safety instructions for individual parts of the device 4 Particulars for assembly instruction 4.1 Assembly instructions...
Page 3 ROOMMAP Instruction Manual 8 Malfunction analysis 9 Disposal 10 Index 11 Feedback Template: D000-0001-PID01 Page 2 of 30 Ref. No.: D570-0003-PID01 Date: 11.11.2021 Issue: 01_02...
Page 4: Introduction
Label-specific information MyAirProtector GmbH hereby declares that the ROOMMAP 500 complies with VDI 6022 directive 2014/53 / EU. The devices also meet the requirements of the following EU directives: RoHS Directive 2011/65 / EU.
Page 5: Exclusion Of Liability
MyAirProtector GmbH assumes no liability or guarantee for the correctness, topicality and completeness of the information in this document. Warranty MyAirProtector GmbH grants a warranty of 2 years from the date of purchase. Each device is carefully produced in Germany and subjected to a careful final inspection by MyAirProtector GmbH.
Page 6: Performance Data
ROOMMAP Instruction Manual 2.2.1 Performance data 1x UV-C- fluorescent tubes Electrical power 75 W UV-C-power 25 W Wavelength 253,7 nm operational lifetime 9.000 h Maximum power 50 W Volume flow of fan 565 m³/h Environmental noise (sound pressure 44 dB(A) level) ROOMMAP 500 Maximum power...
Page 7: Safety References
ROOMMAP Instruction Manual Safety references Safety references and symbols The following designations and symbols are used in the operating instructions for particularly important information: Special hints on operating the system, e.g. to avoid malfunctions. Information Special information, e.g. regarding the economical use of the device.
Page 8: Intended Use
ROOMMAP Instruction Manual Intended Use After receiving the package, check it for packaging damage and document this accordingly. If the packaging is severely damaged, the shipment should be rejected. A damaged device must not be put into operation. Attention The device is designed for the purpose of cleaning or disinfecting the ambient air, especially for poorly or non-aerated interiors.
Page 9: Organizational Measures
ROOMMAP Instruction Manual Organizational measures  The employee assigned to work on the device must have read and understood the operating instructions, especially the chapter on safety, before starting work. It is too late during work. This applies in particular to personnel who only work on the machine occasionally, e.g.
Page 10: Safety Instructions For Individual Parts Of The Device
ROOMMAP Instruction Manual Safety instructions for individual parts of the device General use:  UV-C radiation is dangerous for the eyes and skin. The removal of the enclosure is not permitted.  If the power cord is damaged, it must be replaced by the manufacturer.
Page 11: Particulars For Assembly Instruction
ROOMMAP Instruction Manual Assembly instruction Installation Variants 4.1.1 Pedestal Wall mount Template: D000-0001-PID01 Page 10 of 30 Ref. No.: D570-0003-PID01 Date: 11.11.2021 Issue: 01_02...
Page 12: Scope Of Delivery
ROOMMAP Instruction Manual 4.1.2 Scope of delivery Template: D000-0001-PID01 Page 11 of 30 Ref. No.: D570-0003-PID01 Date: 11.11.2021 Issue: 01_02...
Page 13 10. Wall screw (DIN 571-Ø6mm x 60mm) 11. Dowels (Ø8mm x 51mm) These components are optional and depend on the variant ordered. Items are available from MyAirProtector GmbH. Template: D000-0001-PID01 Page 12 of 30 Ref. No.: D570-0003-PID01 Date: 11.11.2021 Issue: 01_02...
Page 14: Installation
ROOMMAP Instruction Manual Detailed installation instruction 4.1.3 Variant 1: Pedestal Step 1 Carefully place the base body (item 1) on a flat and stable surface. Make sure that the power switch is not pointing downwards. Step 2 Now position the pedestal (item 6) on the lower side (right hand side in picture) of the base body (item 1).
Page 15 ROOMMAP Instruction Manual Step 5 Now place the cover on the air intake. The cover is held on the device by magnets. Your air disinfection device is now ready for use! Variant 2: Wall mount Step 1 Position the wall mount (item 7.a) on the wall at the desired location. Use a pencil to mark the two holes in the wall mount (item 7.a) on the wall.
Page 16 ROOMMAP Instruction Manual Step 5 Position the small part of the wall mount (item 7.b) towards the wall at the top ventilation slots. Screw this with the enclosed M5 screws (item 8) slightly (must be removed in a later step). Step 6 Use a pencil to mark the hole in the wall mount (item 7.b) on the wall.
Page 17: Facility Description
ROOMMAP Instruction Manual Device description 1. Label 2. Mains connection 3. Fuse 3A 4. Main power switch (On/Off) 5. Operating switch (On/Off) 6. Rotary control for volume flow 7. (continuous adjustment of the volume flow) Markings at: • Level 1: 100 m³ / h •...
Page 18: Device Operation
Attention The G4 filter included in the delivery can optionally be used for finer air filtration. Please only use filter types approved by MyAirProtector GmbH. Hint Template: D000-0001-PID01 Page 17 of 30 Ref.
Page 19: Switching On The System
ROOMMAP Instruction Manual Switching on the system  Plug the power cord into the power connector (2).  Switch on the main switch (4).  Press the operating switch (5) to switch on the device.  Set the required fan output on the rotary control (6). Extract from the standard: ASR A3.7: May 2018 Chapter 3.16 Activity categories I, II, III.
Page 20: System Restart After Malfunction
ROOMMAP Instruction Manual System restart after malfunction  In the event of a malfunction or overheating, the device switches itself off and must be switched on again manually by pressing the operating switch (5). If the device is switched off repeatedly, the service technician or a qualified electrician must be informed.
Page 21: Maintenance
ROOMMAP Instruction Manual Maintenance Particle filter G4 The inserted G4 particle filter should be changed at regular intervals. Recommended cycle: 3 months. No later than after 2000 operating hours! Particle filter G2 The G2 particle filter under the grille should be changed at regular intervals. With G4 particle filter Recommended cycle: 12 months.
Page 22 ROOMMAP Instruction Manual When servicing the air purification device, we recommend wearing gloves and mouth and nose protection, especially when handling the filter mats. Hint Step 1 Lift the cover (1) off the magnets and put it aside. Step 2 (optional) Remove the G4 filter (2) if present and dispose of it according to the specifications.
Page 23 ROOMMAP Instruction Manual Step 3 Loosen the four marked screws (3) and remove the cover grille (4). Step 4 Remove the G2 filter (5) and dispose of the filter according to the instructions. Step 5 Carefully remove the cover plug (6) from the visual cover.
Page 24 ROOMMAP Instruction Manual Step 6 For a safe and easy replacement of the UV-C fluorescent tubes, place the device on a flat and stable surface. Make sure that the control dial is not damaged! Failure to comply with step 6 can cause the UV-C fluorescent tube to drop and break when put into the device.
Page 25 ROOMMAP Instruction Manual Step 9 Pull out the lamp holder (7) at the marked point until you meet with slight resistance. When pulling the lamp holder out of the device, make sure that the cable (step 8, plug 8) is not damaged by the metal sheets.
Page 26 ROOMMAP Instruction Manual Step 11 Carefully pull off the lamp sockets (11). Step 12 Disconnect the UV-C fluorescent tube (12) from the front clip (13). Step 13 Disconnect the UV-C fluorescent tube (12) from the lower clip (14). Dispose of the lamp according to the regulations in your country.
Page 27 • Note the UV-C lamp number • Change the UV-C lamp The device may only be repaired by MyAirProtector GmbH or by repair centers certified by MyAirProtector GmbH. Warning Template: D000-0001-PID01 Page 26 of 30 Ref. No.: D570-0003-PID01 Date: 11.11.2021...
Page 28 ROOMMAP Instruction Manual Disposal ENVIRONMENTAL PROTECTION DIRECTIVE 2002/96 / EC CORRECT DISPOSAL OF THIS PRODUCT Within the EU, this symbol indicates that this product must not be disposed of with household waste. Legacy devices contain valuable recyclable materials that should be recycled in order not to harm the environment or human health by uncontrolled waste disposal.
Page 29 ROOMMAP Instruction Manual Index Bestimmungsgemäße Verwendung ................. 8 Betriebsphasen ........................ 9 Organisation ........................9 Personal Auswahl ........................9 Qualifikation ........................9 Symbole Achtung ..................... 7, 8, 9, 19, 25 Gefahr ........................7, 10 Hinweis ........................7, 23 Information ...................... 5, 7, 8, 20 Warnung .........................
Page 30 You can send us your feedback directly via email, our online form or personally. Your feedback will be sent directly to our service management. E-mail: feedback@myairprotector.de Simply use our online form! 1. Scan the QR code 2. Submit a review 3.
