Rated voltage ：DC12V
Rated power ：15W
Applicable area ：4-6 m³
Product dimension ：175X77X240mm
Net weight ：1kg
Product working mode ： High, medium ,low
Anion concentration ：3X 10^6 ions/cm³
Ozone emissions ：<0.05PPM
Maximum gear noise ：<50dB
Mute gear noise ：<35dB

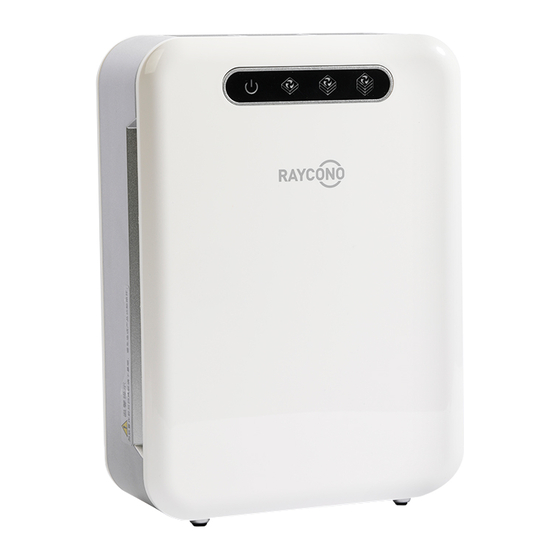

Raycono Hydroxyl vehicle air Purifier
Raycono Hydroxyl vehicle air Purifier
Instruction Manual
Product model：RC-AS300
Image shown is for illustration purposes only. Actual product
may vary.
Please follow the instructions of manual for safety causes.
Advertisement
Table of Contents
Summary of Contents for Raycono RC-AS300
- Page 1 Rated voltage ：DC12V Rated power ：15W Applicable area ：4-6 m³ Raycono Hydroxyl vehicle air Purifier Product dimension ：175X77X240mm Net weight ：1kg Instruction Manual Product working mode ： High, medium ,low Anion concentration ：3X 10^6 ions/cm³ Ozone emissions ：<0.05PPM Maximum gear noise ：<50dB Mute gear noise ：<35dB...
- Page 2 In-car environment Contents introduction Page 1 1、In-car environment introduction………………………………..Page 1 1、Preface With more and more families owning vehicles, the air pollution in vehicles has become 2，Product Features………………………….………………………………..Page 2 a health problem that can not be ignored. Formaldehyde, toluene, dimethylbenzene and ammonia are the main culprits of air pollution in the car, which will pose a serious 3，Component Function…………………………………………………Page 3-6 threat to human health.
- Page 3 Component Function Product Features Page 3 Page 2 1、Hydroxyl sterilization Hydroxyl sterilization technology is a high-tech leading-edge purification technology, which is composed of nano spraying and special ultraviolet lamp. It has strong sterilization function and can effectively purify the air. Compared with the traditional purification technology, it has the ①...
- Page 4 Component Function Component Function Page 5 Page 4 1、Front cover 3、Function button After the front cover is opened, the machine will be powered off for protection immediately, and then it can be cleaned and maintained; after cleaning and maintenance, the front cover must be closed before the machine can work. 1、Press the on / off button.
- Page 5 Preparation before use Component Function Page 7 Page 6 6、Complex Filters 1. Strap installation The complex filters consist of an initial filter, a HEPA filter, and an activated carbon filter. The initial filter mainly filtrates larger particles； the active carbon filter screen is mainly used to absorb toluene, formaldehyde, other peculiar smell and other 1.
- Page 6 Safety Notes Changing The Filters Page 9 Page 8 Please note that the following basic safety specifications 1. Open the front cover, put 2、Take out the old filter screen, hold should be obeyed while sing the air purifier: your hands on both sides the white ribbon of the filter screen under the front cover, and with your fingers and pull out the...
- Page 7 Main functions of the product Product troubleshooting Page 11 Page 10 Raycono Air Purifier can remove 99% of harmful substances in the air (below) ！ The front cover shall be opened ONLY by professional Warning staff to prevent electric shocks. When replacing or cleaning filters, please unplug the appliance.
- Page 8 Warranty Service Page 12 Warranty Card user name: Product model: Product number： phone: Email: address: Warranty repair project: Date of Maintenance receipt of the product: personnel: Replace postal component or device: Users only need to fill in the columns of information; Our company fill in the information below the columns.
