Summary of Contents for ozone generators BLUE 7000

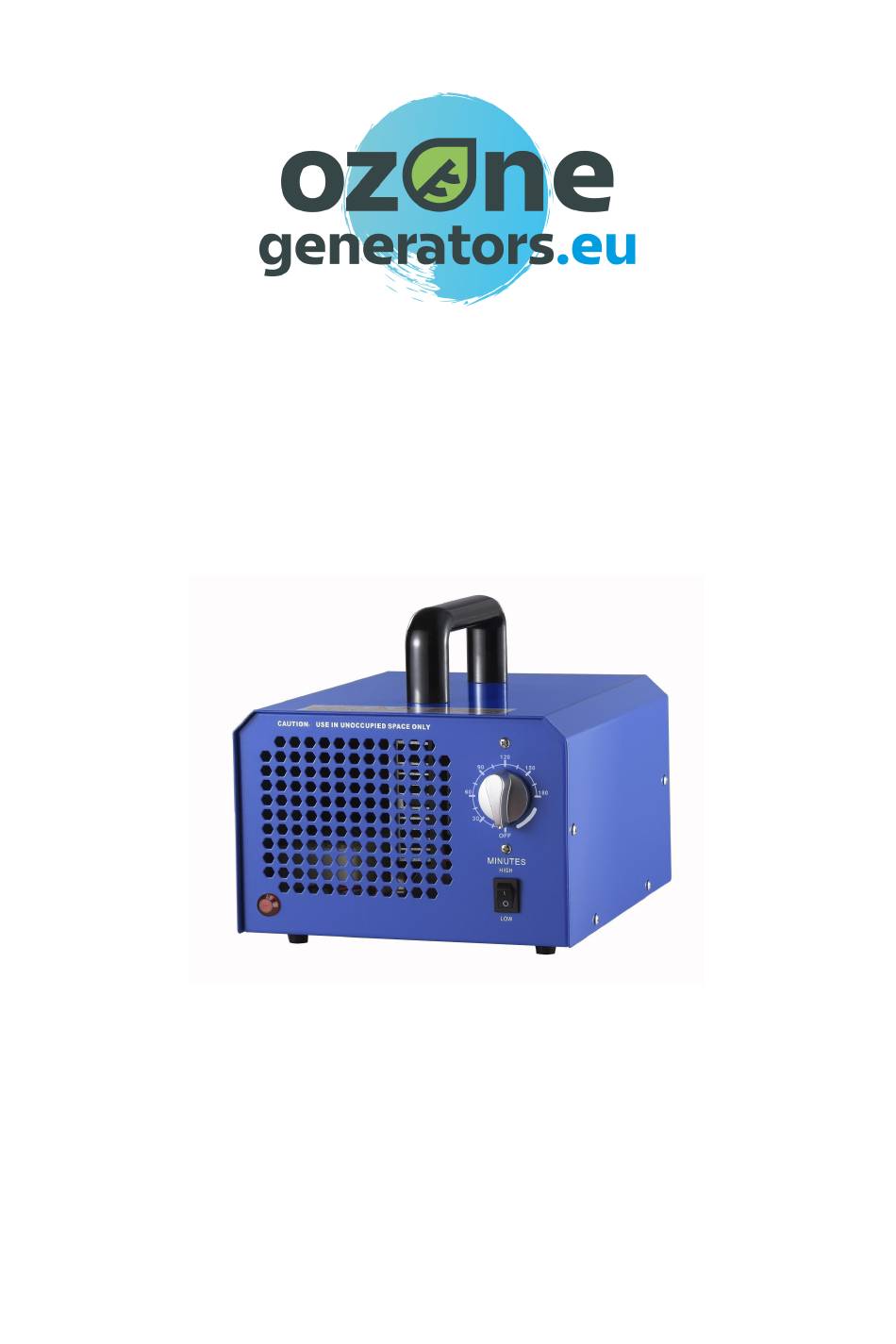

- Page 1 Read the instructions carefully before using this device BLUE 7000 (HE-141D) COMMERCIAL OZONE GENERATOR USER MANUAL Read the instructions carefully before using this device...
- Page 2 WARNING This air unit is not a medical device. Do not stop or modify any treatment or medication programmes without consulting your doctor. Excessive ozone concentrations can irritate the mucous membranes or the respiratory tract. CAUTION DANGER OF INJURY BY ELECTRIC CURRENT WHEN OPENING THE DEVICE...
-
Page 3: What Is Ozone
INTRODUCTION This air purifier is designed for the advanced and comfortable remediation of contaminants. Powerful oxidation in a compact size, with a light weight and simple design. It uses controlled ozone technology developed especially for the reduction of odours, bacteria and viruses in unoccupied spaces. -
Page 4: Technical Specification

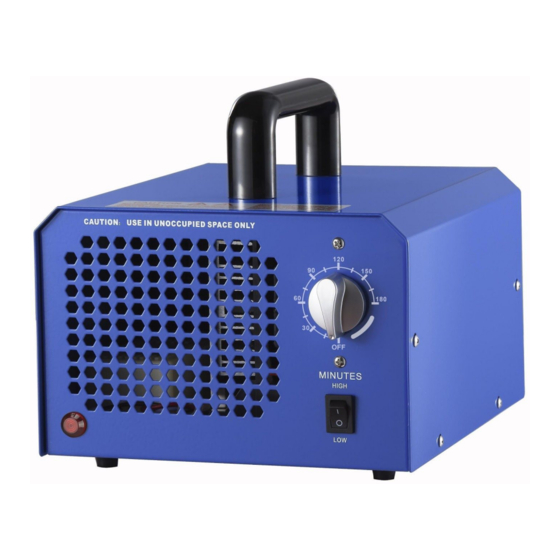

TECHNICAL SPECIFICATION Model: BLUE 7000 (HE-141D) Input voltage: AC 220-240V/50-60Hz Energy consumption: 100 W Number of ozone plates: 90 x 50 mm, 2 pcs Air volume: Maximum 100 CFM (2.8 M3/min.) Active oxygenation: 3.5 - 7.0 g/h Noise level: 45 dB... - Page 5 USING THE BLUE 7000 DEVICE: (front view) Operation timer: U sed to set the device’s operating period (ozone production) for up to 3 hours. Switching between low and high output: H igh output at 7,000 mg, low output at 3,500 mg.
- Page 6 (rear view) Fuse: A replaceable fuse (1A, length 0.79 inches) is located here. Power supply: P ower supply connector, 220V-240V.
-
Page 7: Follow These Steps
PROCEDURE FOR USING THE DEVICE The industrial air purifier is designed to remove odours from unoccupied spaces (spaces in which no people, animals or plants are present). The device is equipped with a timer which enables the setting of an operating period of up to 3 hours. At the end of the set operating period, the device switches off. - Page 8 ELIMINATION OF PROBLEMS If you suspect that there may be a problem with your unit, check the following: ● The unit is properly connected. ● The ceramic plates are clean and dry. ● There are no cracks in the plates, and each plate is aligned with the rear part of the unit.
-
Page 9: Maintenance
MAINTENANCE If the device has not been producing a sufficient amount of ozone for a longer period, it is not efficient enough and the ozone plates must be replaced. They are normally changed after 6,000 hours of operation. WARNING: The warranty does not apply to the parts of the unit which require replacement during normal use. - Page 10 To replace an ozone plate: 1. Switch off the device, and disconnect it from the socket. 2. Use a screwdriver to loosen the cover screw, and remove the cover. 3. Pull the ceramic plate out of the ozone generator module. 4.
- Page 13 Read the instructions carefully before using this device BLUE 7000 (HE-141D) COMMERCIAL OZONE GENERATOR USER MANUAL Read the instructions carefully before using this device Version 20/05/2020...
