Wallboard Tool TEXTURE-PRO 200 Operating Instructions Manual page 2

1. Start your compressor and allow the tank to fill and compressor shut off.
2. Fill the Hopper of your TEXTURE-PRO® 200 2/3 to 3/4 full with texture material.
3. Stand 3 to 4 feet from the surface to be textured.
4. Lift your TEXTURE-PRO® 200 toward the top right hand or left hand edge of the surface to be sprayed.
5. Retract the trigger until it contacts the preset Adjustable Stop and start spraying vertically down the wall until you are nearing the
bottom edge of the wall.
6. Without stopping, move sideways and start up the surface vertically, until you are near the top.
7. Without stopping, move sideways and start down the surface vertically, again.
8.. Repeat this pattern until all of the desired surfaces have been sprayed. Refill the hopper as necessary.
If a "knock-down" texture is desired, wait until the top of the texture pattern changes from glossy to dull in appearance (normally 15 to 20
minutes) & gently flatten the texture with a Wallboard knock-down knife, taping knife or trowel.
HOPPER W/ CLAMP
P/N 50-007
*WHEN ORDERING AN AIR STEM ASSEMBLY (P/N 50-046) A POPPET ASSEMBLY (P/N 50-058) MAY ALSO NEED TO BE ORDERED
TO CLEAN:
1. Flush out all remaining texture materials with water. Blow air through the gun to remove any texture material that may have
seeped into the air stem.
2. Turn the gun upside down and place 5 to 10 drops of light, lubricating household oil (such as 3 in 1®) in the Quick Disconnect.
This will allow the oil to lubricate the air stem and O-rings.
3. After oiling, pull the trigger several times and close the shut-off valve for storage.
MAINTENANCE / DISASSEMBLE:
1. Remove the Material Orifice
2. Remove the Adjustable Stop by turning it counter-clockwise until it is disengaged.
3. From the front of the gun, push the Air Stem toward the rear with your finger. The Air Stem may now be completely removed
by pulling it out the back of the gun.
To remove or replace the trigger, remove one of the two "E" clips and slide the trigger retaining pin to one side
4.
MAINTENANCE / REASSEMBLE:
1. Prior to assembly, wipe a small amount of grease (such as a wheel bearing grease or any lithium-based grease) on the
O-rings of the Adjustable Stop Assembly and the Air Stem Assembly.
2. Slide the air stem into the gun body from the rear of the gun. CAUTION: Avoid damaging the O-rings when re-assembling the
air stem. The O-rings can rip on the threads or tear on the inside wall of the gun chamber.
3. Re-attach the Adjustable Stop by turning it clockwise until it is engaged. (Approximately 2 to 3 turns) and place the desired
Spray Tip on the front of the gun and secure it with the Material Orifice nut.
Vertical (walls) and Angled (vaulted ceilings) Surfaces
TEXTURE-PRO
MATERIAL ORIFICE
SET P/N 50-040
USE ONLY GENUINE WAL-BOARD® BRAND REPLACEMENT PARTS
WARRANTY / PARTS INFORMATION: PLEASE SEE PAGE 8.
200 -

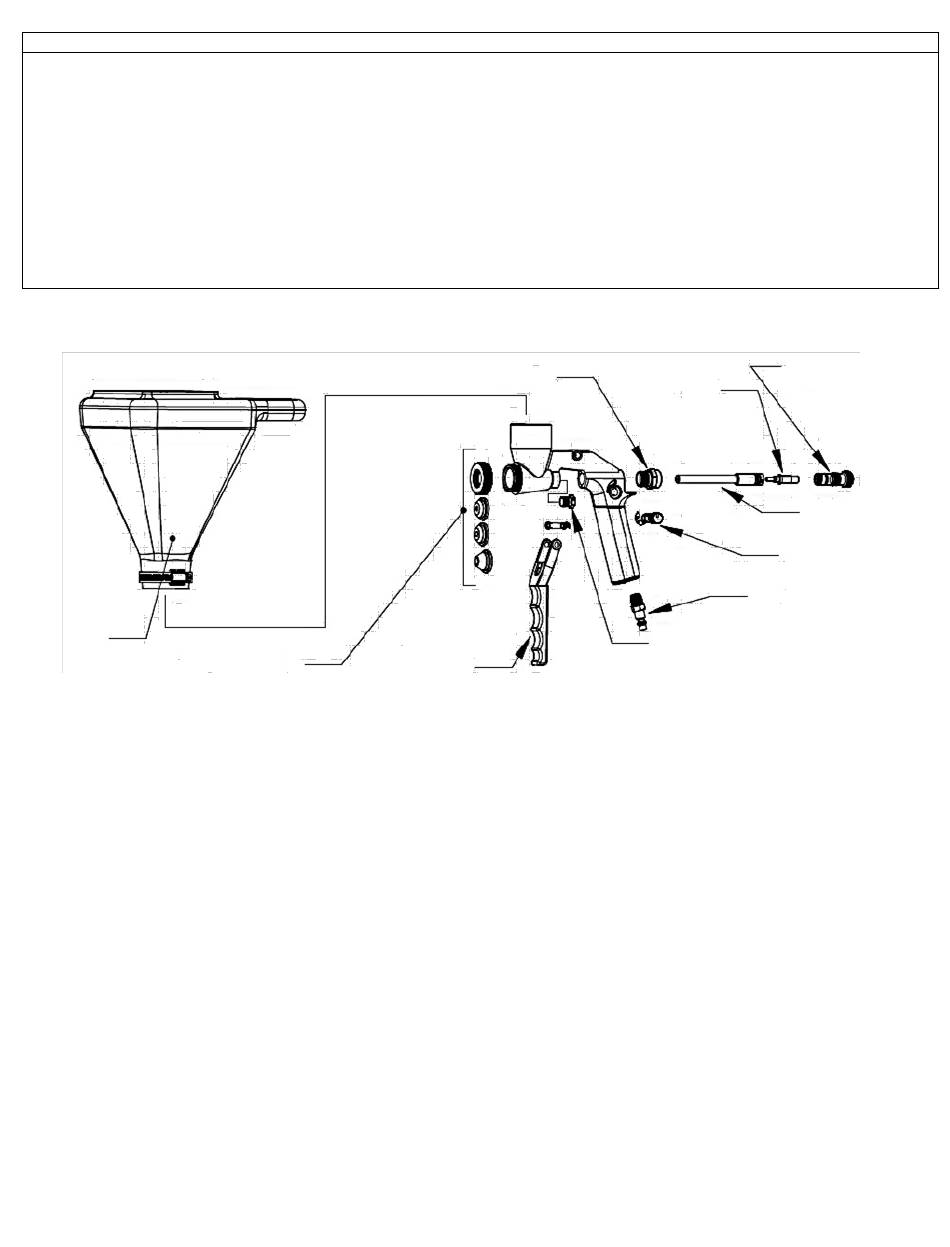

PARTS BREAKDOWN
®
THREADED GUN BODY
P/N 50-044
TRIGGER SET
P/N 50-038
ADJUSTABLE STOP
POPPET ASSY*
ASSEMBLY P/N 50-048
P/N 50-058
AIR STEM ASSEMBLY*
P/N 50-046
FLOW CONTROL
ASSEMBLY P/N 50-060
QUICK DISCONNECT
P/N 50-025
AIR STEM BUSHING
W/O-RING P/N 50-042
U.S. PAT. NO. 7,617,995
2
