Summary of Contents for Heshan Tech TJHQ-K Series

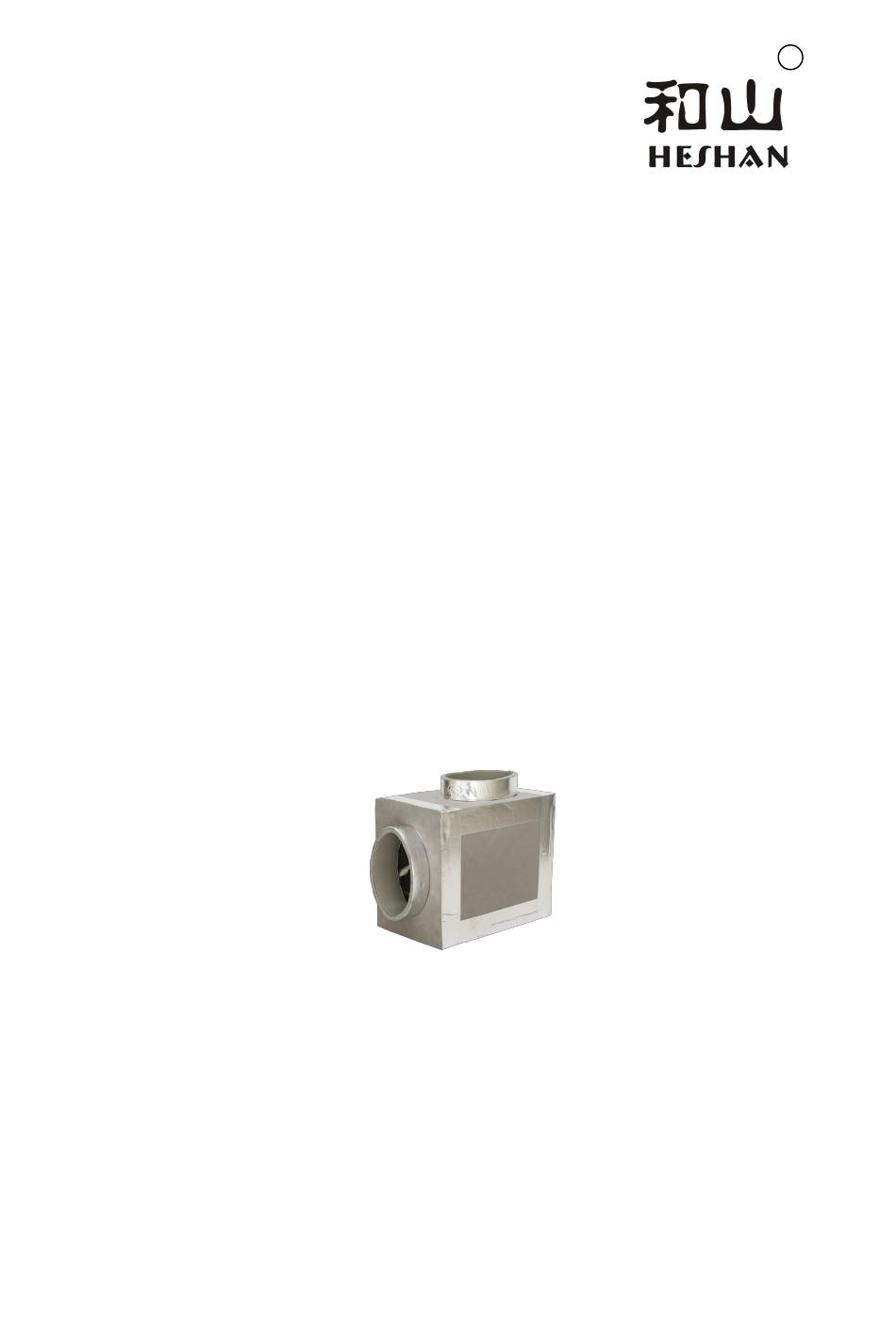

- Page 1 Elevator Car Air Purifier Product Specification Hangzhou Heshan Tech Co.,Ltd...
-
Page 2: Table Of Contents
Thanks choosing “Heshan” brand elevator car air purifier, In order to use this product correctly, please keep this manual carefully for reference. We will strive to meet the individual needs of customers, if there are small changes of products, it will not be notified again in the manual. Contents …………………………………………………………1 1. -
Page 3: Product Feature
1．Product Feature TJHQ-K series of car air purifier linked with elevator air conditioner ●Safety and reliable, It can also be opened when there are passengers in the elevator car; ●Original imported UV lamp,rapid sterilization, high efficiency, up to 99%; ●Using Nanometer Photocatalyst technology to effectively remove harmful substances such as TVOC in the air;... -
Page 4: Model Instructions
2. Model Instructions TJHQ - 18 K Special code: add remarks directly K：Linked installation with air conditioner UV lamp power 18w or36w （ ） Elevator car air purifier 3. Major Technical Data Lamp Volt Rated tube Current Dimensions( Weight Power power effective Elevator... -
Page 5: Use Guide
4.Main Component Name and Pictures Main Unit TJHQ-18(36)K Two Duct Tie One Cold Air Out Duct Ф160mm Ф160*1500mm TIO2 photocatalytic network (inside the machine) 5.Use Guide It is installed in conjunction with elevator air conditioners and runs according to the working hours of elevator air conditioners. (The timer type is generally set to the same on-off time as the working time of the elevator air conditioner, and runs together with the elevator air conditioner;... -
Page 6: Dimensions
6.Dimension TJHQ-18K TJHQ-36K... -
Page 7: Installation Method
7. Installation Method ①Cover the two air outlets of the purifier with cold air out duct and fasten them with duct ties. One end is connected to the air outlet on the air conditioner, and one end is connected to the air out cover of the air conditioner (the length of the duct can be adjusted);... -
Page 8: Notes And Precautions
The installation diagram is as follows: 8. Notes and Precautions Only single-phase ac power can be used（220V～50Hz）; If the power cord and plug are damaged or the plug is too loose, please do not use;When pulling the plug, you must grasp the plug part. Do not pull the power cord;... -
Page 9: Care And Maintenance
and exposed parts of the body. The relative humidity of the environment should not be more than 85%, and there should be no corrosive gas in the air; In case it is necessary to see the light tube, use ordinary glass (glasses) or transparent plastic sheet as a protective mask;... -
Page 10: Normal Failure Analysis And Restore
10.Normal Failure Analysis and Restore Faults Check Items Reasons and Action The purifier does remote control shows Use the remote control to reset the reception. not turn on/off at whether there is program control, Connect the purifier power ... - Page 11 The timer type:the purifier power supply is connected ★ separately,and the purifier switch time is controlled by a timer.
- Page 12 Hangzhou Heshan Tech co.,Ltd Address : NO.25, Futai Road,Zhongtai Industrial Area,Yuhang, Hangzhou,Zhejiang, China Post Code: 311121 Tel.:+86-571-88731970 88739585 88736489 Fax.:+86-571-88731670 Website: www.kincol.com E-mail: fxm@kincol.com...
