ISO 9001 2015
ISO 14001 :2015
ISO 45001 :2018

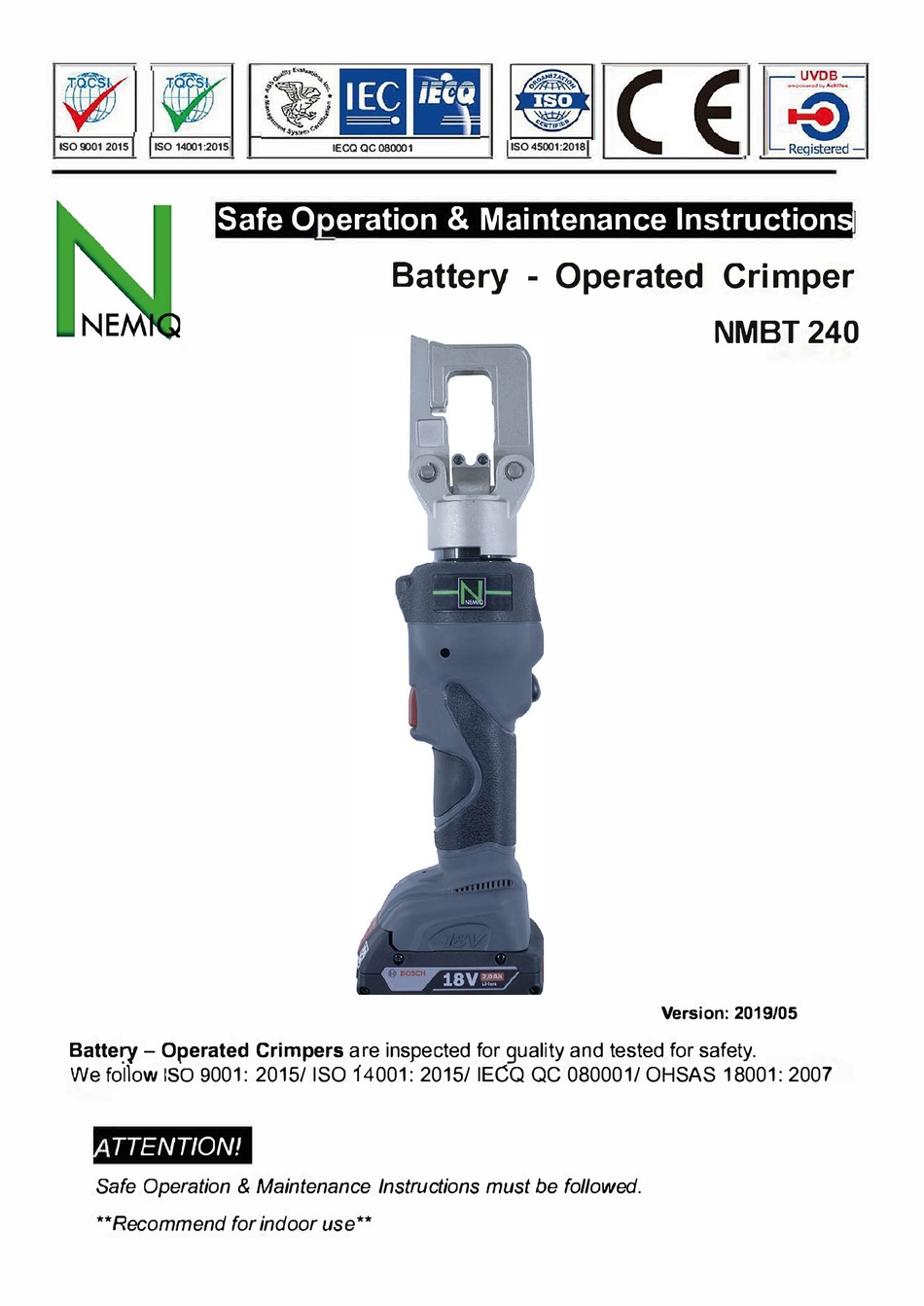

Safe O eration & Maintenance lnstructions
Battery - Operated Crimper
NMBT240
Version: 2019/05
Battery - O p erated Crimpers are inspected for guality and tested for safety.
i
We follow ISO 9001: 2015/ ISO
4001: 2015/ IECQ QC 080001/ OHSAS 18001: 2007
TTENTION!
Safe Operation & Maintenance lnstructions must be followed.
**Recommend for indoor use**
Advertisement
Related Manuals for NEMIQ NMBT240
Summary of Contents for NEMIQ NMBT240
- Page 1 ISO 14001 :2015 ISO 45001 :2018 Safe O eration & Maintenance lnstructions Battery - Operated Crimper NMBT240 Version: 2019/05 Battery - O p erated Crimpers are inspected for guality and tested for safety. We follow ISO 9001: 2015/ ISO 4001: 2015/ IECQ QC 080001/ OHSAS 18001: 2007 TTENTION! Safe Operation &...
- Page 5 Safety lnstructions Cont. Tool Use and Care 9. Use only manufacturer recommended accessories with this power tool. 1. This tool is designed for one- handed use. Use assistance if the cable and fitting are hard to manage, or anything Service distracts you from the use of this tool.
- Page 8 Maintainence Cont. Replace any worn or damaged parts immediately. Do not use parts not ■ supplied by manufacturer. Contact our service representatives to request parts or for problems not ■ shown above. Do NOT attempt to disassemble or repair the product. ■...
- Page 9 Operating lnstructions - LED Light & Battery Light ■ The LED is located on the top of the housing and will be on when you press the trigger. The light will be off after 10 seconds once the tool is not in operation mode.
-
Page 10: Battery Charging
■ Operating lnstructions Cont. Battery Charging 1. Plug the AC charger plug into the wall socket. Ensure the electrical outlet meets the charger's specifications. 2. Position the battery cartridge into the battery charger. T he LED indicator light will go out when the battery is fully charged. - Page 11 Operating lnstructions Cont. 1. Slide the charged battery into the handle of the powertool and press untill you hear a click. The battery should be secured and unmoveable. Press the release bottom to release the the hydraulic pressure in the tool. The tool is ready to use when the piston returns to the starting position.
- Page 12 Operating lnstructions Cont. 5. The operation completes when the hydraulic pressure reaches 700 bar ot 1 0,000psi and the safety relief valve is activated. 6. Press the release button to retract the piston. 7. Repeat steps 5-7 to perform the remaining according to your requirement. 8.
- Page 18 Table of Components Par t s Parts Q't y Q't y SCREW 0-RING COMPRESSION SPRING BUSHING RELIEF VALVE PIN MOTOR & GEAR SET RELIEF DEVICE BLOCKER RELIEF VAL VE TOP SCREW 0-RING SCREW TORSIONAL SPRING CYLINDER RELEASE LEVER COMPRESSION SPRING RELEASE TRIGGER BALL ADVANCE TRIGGER...
