Summary of Contents for TORQUE SAFE TORQUE SAFE

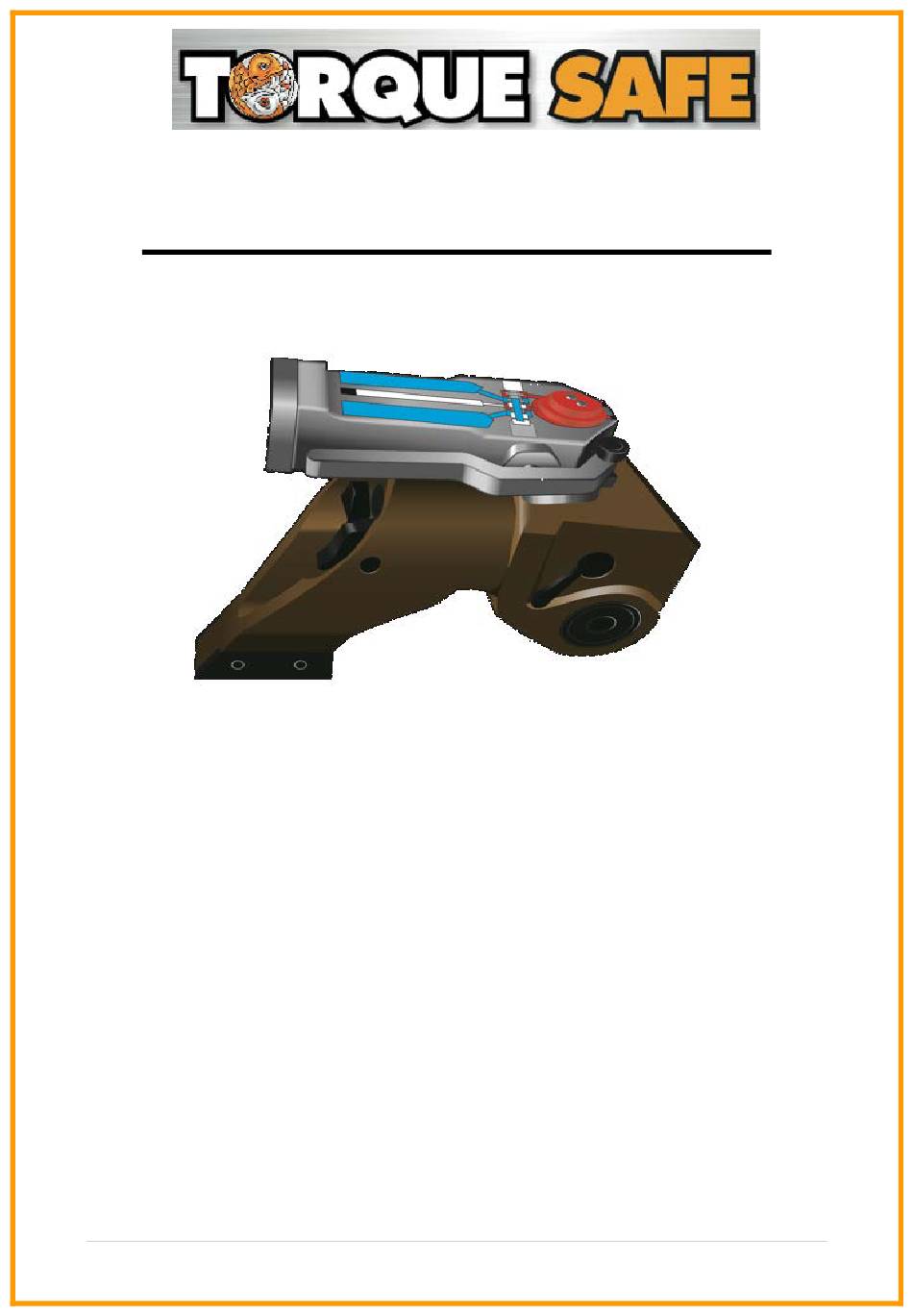

- Page 1 Operations Manual TORQUE SAFE TM 2015 PLEASE READ CAREFULLY BEFORE USE www.ogoncontracting.com.au P a g e...
- Page 2 Operations Manual Torque Safe Torque Safe is a handle operated safety device designed to fit Hydraulic Torque Wrench’s and give operators greater control and prevent hand injuries. To operate Torque Safe correctly, operators must squeeze the handle down by placing both hands on the Hydraulic Torque Wrench.
- Page 3 Operations Manual General Operating Instructions (continued) The recommended PPE requirements to be used are safety glasses, gloves, steel cap boots, long pants and a long sleeve shirt. If a Job requires two operators, before commencing work, a clear work plan should be established between the two.
- Page 4 Turn on the pump operating the Hydraulic Torque Wrench ensuring there are no oil leaks. This is best checked at maximum working pressure 10,000 psi. After ensuring there is no oil leaks, repeat this process with the Torque Safe handle depressed, ensuring that the Hydraulic Torque Wrench does not drive.
- Page 5 Operations Manual Changing Drive Direction (continued) To change direction insert the drive to the opposite side of the tool end removed. Gently turn the square drive until it can be engaged in the spline and pushed in. Depress the drive retainer button, engage the button with the drive retainer and release the button locking the square drive into position.
- Page 6 Operations Manual Once the required torque settings for the Hydraulic Torque Wrench have been established, set the pump to the correct pressure by loosening the lock nut counter clockwise and turning the pressure regulator, then start the pump by pushing down and holding the on button. To adjust the pressure, turn the regulator clock wise, the pressure will be visible on the gauge at all times.
