RDM Cubicles T204 Fixing Instructions

Tel: 01384 884482 sales@rdmcubicles.co.uk
These points must be in
correct position as shown.
INWARD OPEN
1. Fold template along line and position on edge of door.
2. Mark hole centres as template.
3. Drill 4 X 7mm holes as shown.
4. Drill 2 holes 10mm dia and router slot for indicator spindle
5. Screw bolt to door through holes using machine screws provided.
(Make sure indicator spindle is located into plastic slider).
6. Fit indicator disc in correct position with peg (As shown on drawing)
engaged with slot in slider
7. Snap on indicator front plate in correct position as shown.
8. Fit selected keep to pilaster ensuring adequate clearance.
OUTWARD OPEN
All as above but use dotted line to align with door edge.
Page 2 for template.
RDM Cubicles Ltd, 2nd Floor Offices, 167 Lower High Street, Stourbridge, DY8 2JX

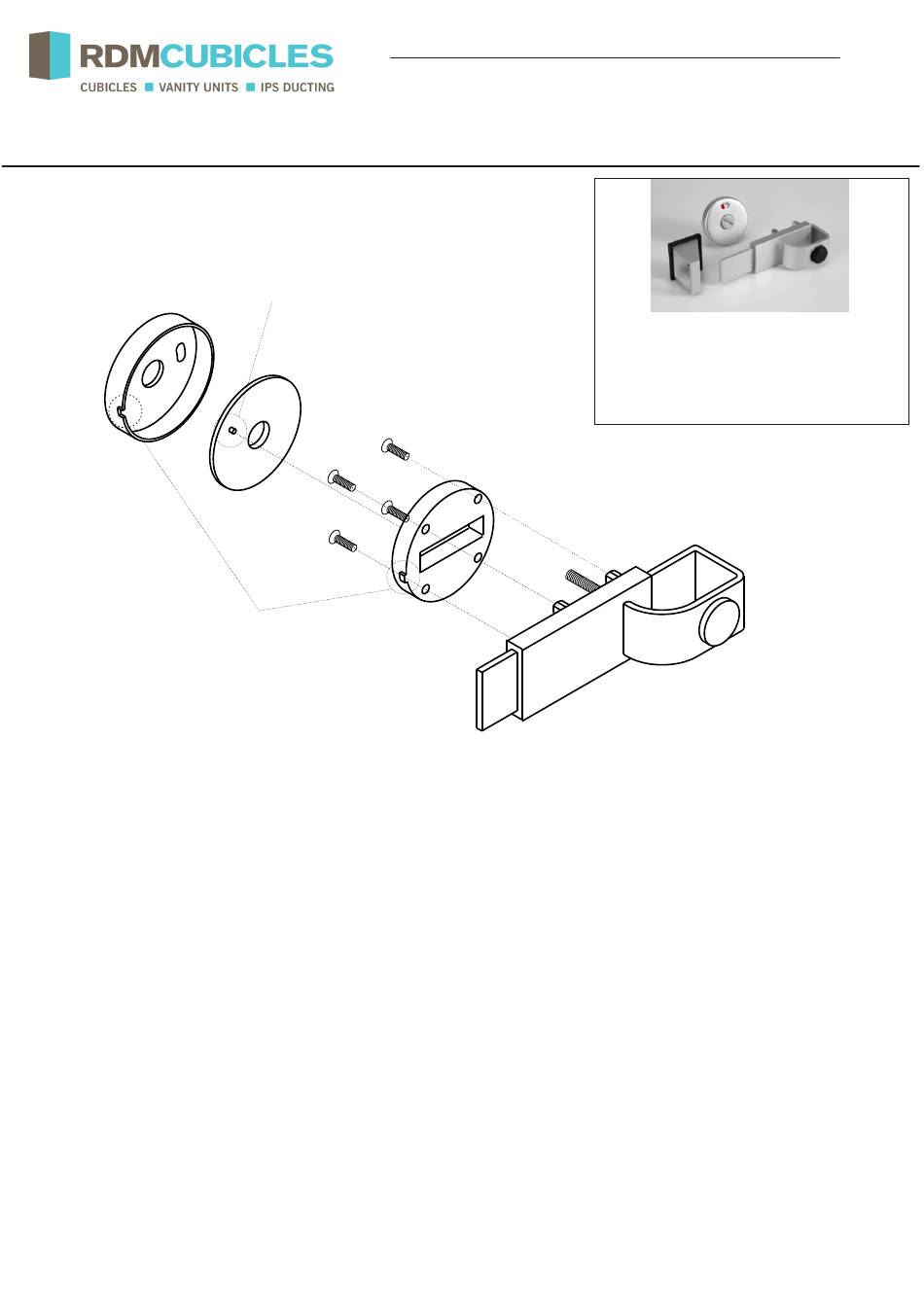

Fixing instructions and template for T204 Indicator Bolt
25mm Pilaster Overlap
This peg must be engaged
with slot on plastic slider.
Tel: 01384 884482 sales@rdmcubicles.co.uk
Fixings for 13mm Board
4 No. 12mm X M4 CSK machine screws
1 No. 23mm X 4.75mm allthread
Fixings for 20mm Board (Packed with keep)
4 No. 20mm X M4 CSK machine screws
1 No. 30mm X 4.75mm allthread
Page 1
