FILTRABOX EXPAND 3
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXPAND 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for FILTRABOX EXPAND 3

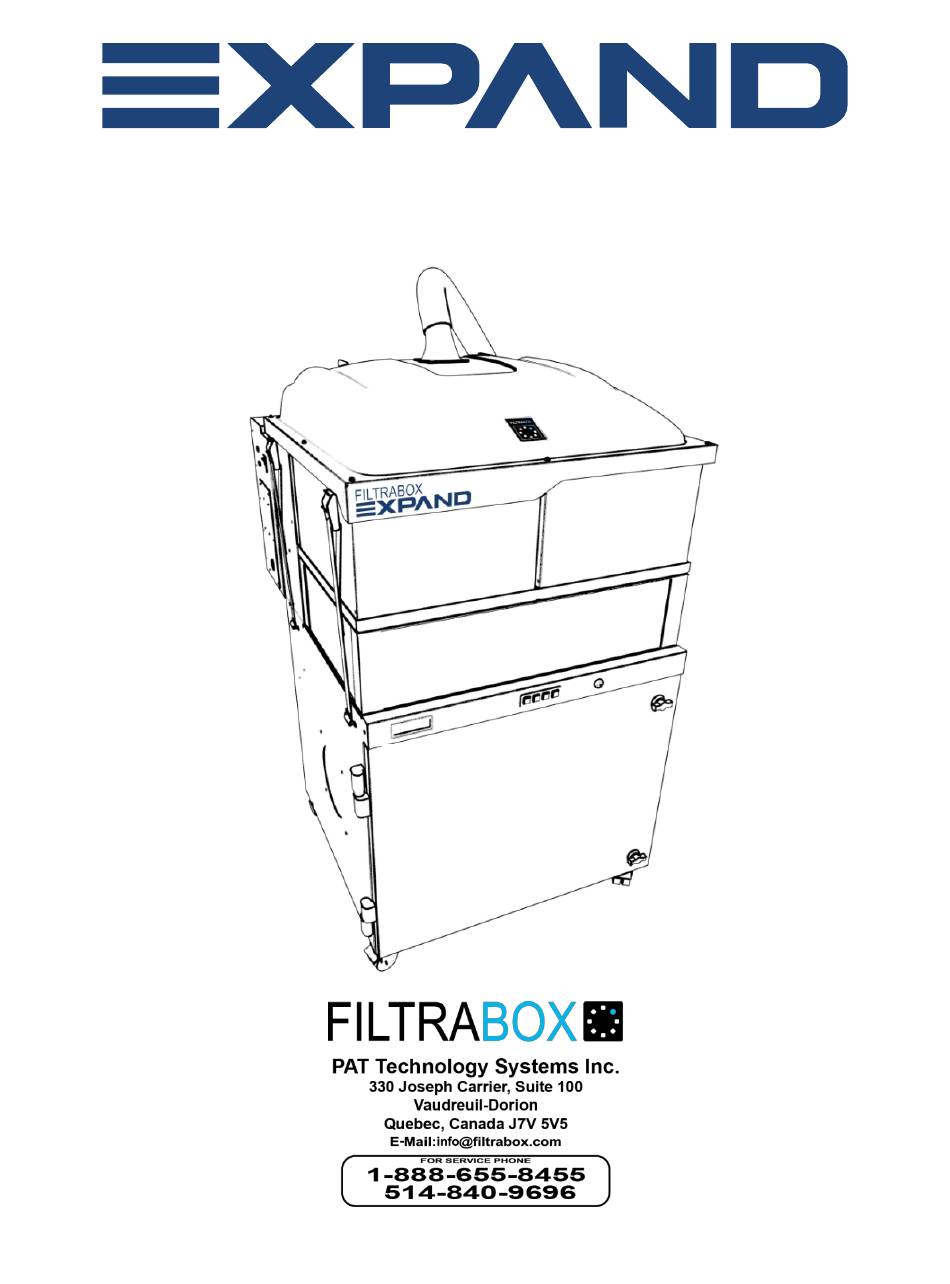

  • Page 1 FILTRABOX EXPAND 3 USER MANUAL...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION – pg. 4 SPECIFICATIONS – pg. 4 iii. ASSEMBLY INSTRUCTIONS a. UNPACKING – pg. 5 b. ASSEMBLY – pg. 6 INSTALLATION INSTRUCTIONS – pg. 8 QUICK START INSTRUCTIONS a. AUTHENTICATION – pg. 9 b. CALIBRATION – pg. 10 c.
  • Page 4: Introduction

    INTRODUCTION EXPAND 3 is designed for laser users who have extreme airflow requirements for demanding substrates and commercial/industrial volume production. With 3 Blower Modules as standard equipment, the Expand 3 is the most powerful laser fume extractor in the Filtrabox lineup. Its triple Blower Modules easily extract dust and fumes, circulating the air through the filters, outputting clean air back into the room.
  • Page 5: Assembly Instructions

    50lbs each. Take appropriate care and precaution when lifting the filter. Remove all the packaging and place all of the parts on the floor. Take inventory of the parts included with your kit: Expand 3 Machine + Cylindrical Pre-Filter (Pre-installed) 1x HEPA Filter (installed on chassis) iii.
  • Page 6: Assembly

    ! Attention: The Carbon Filters are HEAVY. Each filter weighs approximately 50lbs each. Take appropriate care and precaution when lifting the filter. Make sure the Filtrabox is on a flat even surface. Lock the front casters to ensure that the chassis does not easily move around during assembly.
  • Page 7 3. Install the Lid onto the semi-assembled Filtrabox, making sure that the side flanges of the lid are overhanging equally around the entire assembly. 4. Hang the 4 strap clamps onto the 4 hooks located on the sides of the Lid. Press the lever on the clamps if more strap length is required.
  • Page 8: Installation Instructions

    1. Connect the 80 mm hoses onto the machine via the adapter that is provided with machine 2. Place the Filtrabox in the final position that it will be regularly used. This is important for Calibration as the Calibration system will take all the bends and flow restrictions of the flex hose into account and provide optimal performance.
  • Page 9: Quick Start Instructions

    2. Fill in the required fields and you will be sent an email message containing your AUTHENTICATION CODE. 3. Turn your Filtrabox ON using the main power switch located in the back of the device. Filtrabox will request an UNLOCK code which is also known as the AUTHENTICATION CODE.
  • Page 10: Calibration

    CALIBRATED to your specific laser. 1. First, connect the Filtrabox fume extractor to the laser with all 3 of the flex hoses. Arrange the laser, Filtrabox and the hoses into their desired locations. This is important because the calibration process takes the restrictions caused by the bends in the hose and positioning of the equipment into account.
  • Page 11: Airflow Setting

    6. When the laser is not in use, press the “right arrow” key to turn the blower(s) off. 7. Filtrabox has an EZ-link feature that allows you to turn the blowers ON or OFF remotely from the laser (if this feature is available on your laser). See the EZ-LINK section of the manual.
  • Page 12: Filter Replacement Instructions

    FILTER REPLACEMENT INSTRUCTIONS WHEN TO REPLACE FILTERS The Filtrabox Expand system has 3 types of filters: 1. Cylindrical Pre-Filter: Remove larger particles. 2. HEPA Filter: Removes finer particles. 3. Carbon Filter: Removes odor. All three filters will need to be independently replaced at some point in time during the course of normal usage.
  • Page 13: How To Replace Filters

    This is most likely due to airflow blockage in the pre-filter or HEPA filter from normal usage. The Filtrabox Expand system has 3 types of filters: 1. Cylindrical Pre-Filter: Remove larger particles. 2. HEPA Filter: Removes finer particles.
  • Page 14 “FILTER CHECK” feature. 2. Press the “Menu/Enter” button to initiate the “FILTER CHECK” process. 3. Filtrabox will assess the status of all the Dust Filters in your systems and then prompt you to remove the Pre-Filter. Follow the instructions on the screen.
  • Page 15 The height of the foam gasket on the filter should match the height of the foam donuts on top of the blower modules. 7. Install the Lid onto the semi-assembled Filtrabox, making sure that the side flanges of the lid are overhanging equally around the entire assembly.
  • Page 16 The height of the foam gasket on the filter should match the height of the foam donuts on top of the blower modules. 5. Install the Lid onto the semi-assembled Filtrabox, making sure that the side flanges of the lid are overhanging equally around the entire assembly.
  • Page 17: Blower Module Replacements

    ! To avoid any risk of electrical discharge, turn off and unplug the Filtrabox before doing any activities that require disassembly of the unit. EXPAND 3 comes standard with 3 Blower Modules. Blower Modules can be easily replaced by removing a few screws and disconnecting/connecting two cables.
  • Page 18: User Interface Module Replacement

    The User Interface Module houses the LCD display and control buttons. In the event of damage or a malfunction, the entire module can be removed from Filtrabox by removing a few screws and disconnecting a single ribbon cable. Contact Filtrabox to order.
  • Page 19: Settings

    The blower(s) will be engaged to the previously set “Airflow %” 2. Link On/Off This mode uses the DB9 connection at the rear or the Filtrabox. The blowers will be engaged at the previously set “Airflow %” when laser requests it. (If feature is available on the laser.) When the laser does not require any airflow, the system automatically...
  • Page 20: Filter Check

    SERVICE MENU SETTING This menu is only to be used by Filtrabox Technicians or with the guidance of a Filtrabox Technician.
  • Page 21: Ez-Link Controller Set-Up And Pin-Out

    EZ-LINK CONTROLLER SET-UP AND PIN-OUT EXPAND DB9 PIN-OUT Start Exhaust System Pin 1 Pin 9 Check Filter (not enabled) Figure 1: An example of a D-Sub 9 connector for EXPAND Pins 4 & 5: Normally Open – Output from Laser Controller The controller connects these two pins to start the exhaust system.
  • Page 22 EZ-LINK Electrical Requirements Figure 2 below shows the required circuit for the output on a laser’s filter control system. When the laser’s filter control unit wishes to turn on the exhaust system, the contacts on the relay are closed, thus connecting the two output pins.
  • Page 23: Support

    SUPPORT For any and all questions related to our Filtrabox products and accessories, please do contact us anytime. It will be our pleasure to make fume extraction easier and more effective for any of your applications. Please contact us through: www.filtrabox.com...
  • Page 24 1 Goods manufactured by PAT : PAT warrants that the Goods manufactured by it will be free from defects in materials and workmanship for a period of 12 months from the date of AUTHENTICATION. Exceptions: Spare parts including replacement filters: 1 month from installation. Used and ex-demonstration equipment: 1 month from installation.
