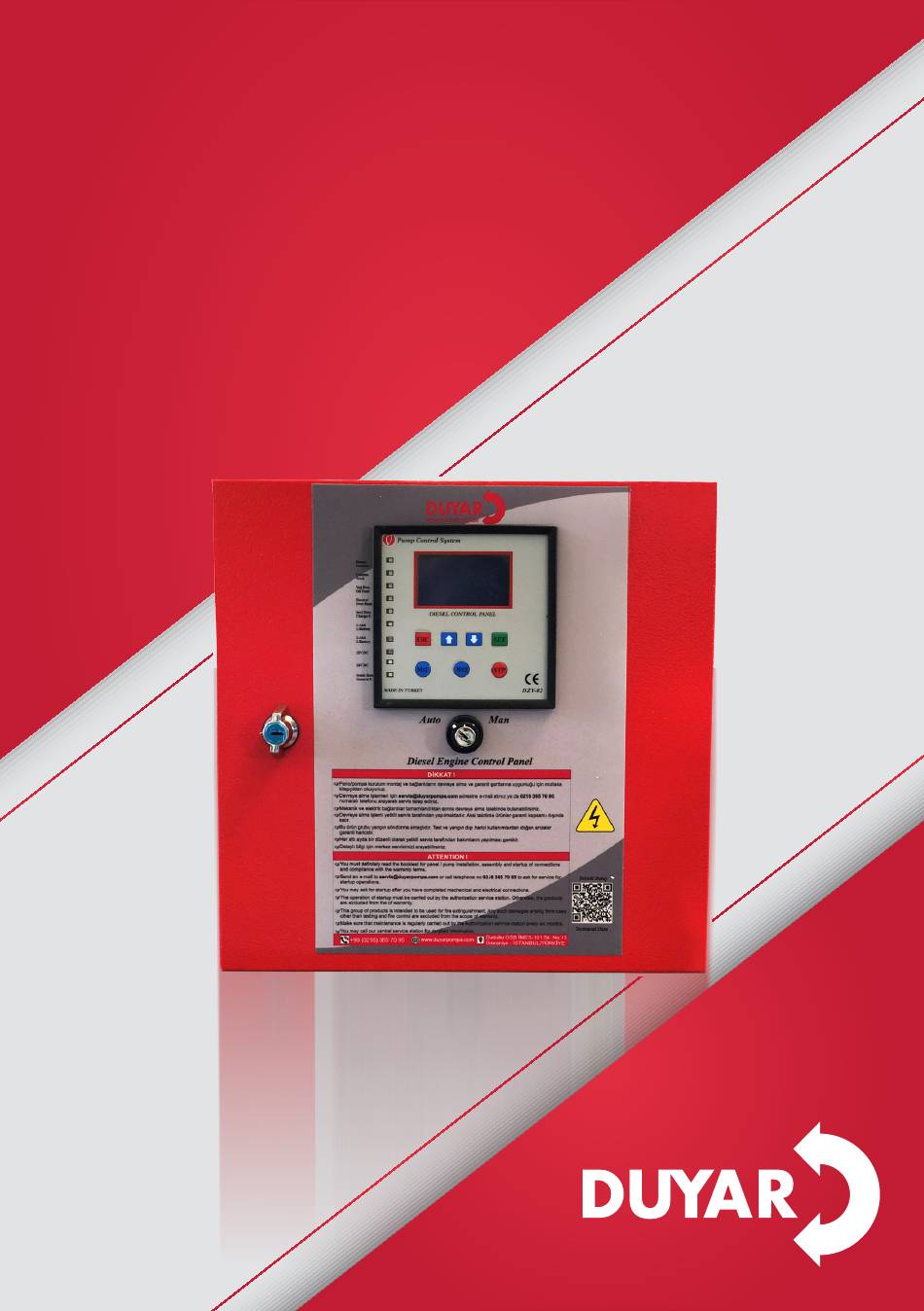

- Page 1 DISEL FIRE PANEL FIRE PANEL INSTALLATION, MAINTENANCE and OPERATION GUIDE...
- Page 2 DISEL INSTALLATION, MAINTENANCE and OPERATION GUIDE FIRE PANEL Control panels, to get the best results this manual information must read carefully. This manual, all your problems can help solve. www.duyarpompa.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS MONTAJ, İŞLETME, BAKIM ve KULLANIM KILAVUZU INSTALLATION, MAINTENANCE and OPERATION GUIDE PURPOSE OF USER MANUAL........2 SAFETY SIGNS................2 GENERAL INSTRUCTIONS..........2 SAFETY INSTRUCTIONS..........2 1- TRANSPORT / STORAGE / MONTAGE..3 1.1- Transfer..................3 1.1- Transport................3 1.3- Storage...................3 1.4- Montage................3 2- OPERATING................3 3- MAINTENANCE..............3 3.1- Monthly Maintenance..........3 4- GENERAL INFORMATION OF THE... -
Page 4: Purpose Of User Manual
DISEL INSTALLATION, MAINTENANCE and OPERATION GUIDE FIRE PANEL Electrical connection as shown in the user's guide PURPOSE OF USER MANUAL ● input must be connected to the fuse. Otherwise To convey the instructions regarding the pump's you may cause serious injury or death as a result of ●... -
Page 5: 1- Transport / Storage / Montage
DISEL INSTALLATION, MAINTENANCE and OPERATION GUIDE FIRE PANEL On The Control Panel The Speclal Securlty Equlpment 1.3 Storage And Recommendations Control panels of instead of immediately montage if not ; ● Do not store in damp environments. ● May result in electrical shock or death. -
Page 6: Product
DISEL INSTALLATION, MAINTENANCE and OPERATION GUIDE FIRE PANEL 4. GENERAL INFORMATION OF THE PRODUCT 4.1 General Specifications of the Product The control board you have purchased is designed based on microcontroller. ● All of the control operations on the panel are done electronically and stored in memory. -
Page 7: 6- Settings Menu
DISEL INSTALLATION, MAINTENANCE and OPERATION GUIDE FIRE PANEL 6. SETTINGS MENU Press the button to enter the menu. Password Rmng. Hour : 100 Maint Hour: Maintenance time setting. After the diesel Authorized password to enter the setup menu screen Auto Test... - Page 8 DISEL INSTALLATION, MAINTENANCE and OPERATION GUIDE FIRE PANEL 6. SETTINGS MENU Press the button to enter the menu. Temp. Sensor Set Value = 08.0 RPM Sensor Hys Value= 00.5 Fuel Sensor Max Value= 16 Input Set Set Value: Diesel engine stop set pressure value.
-
Page 9: 7- Connection Diagram
DISEL INSTALLATION, MAINTENANCE and OPERATION GUIDE FIRE PANEL 7. CONNECTION DIAGRAM HEAT NETWORK 220V AC PRESSURE OIL SENSOR SWITCH 8. TECHNICAL DETAILS TABLE PART NAME TECHNICAL DETAILS Operating Voltage (Un) 230 V - 380 VAC Operating Frequency 50 / 60Hz Working Power <10 VA... -
Page 10: 9- Warranty
DISEL INSTALLATION, MAINTENANCE and OPERATION GUIDE FIRE PANEL 9. WARRANTY Principles specified in this user guide, instructions, standards-compliance No other institution and contact an authorized service maintenance, repair or other reasons, provided that untreated The materials used on the control panel manufacturer; workmanship, assembly and manufacturing defects user Company is subject to the terms of warranty. - Page 11 WE ARE SENSITIVE TO LIFE 2021.11.1...
