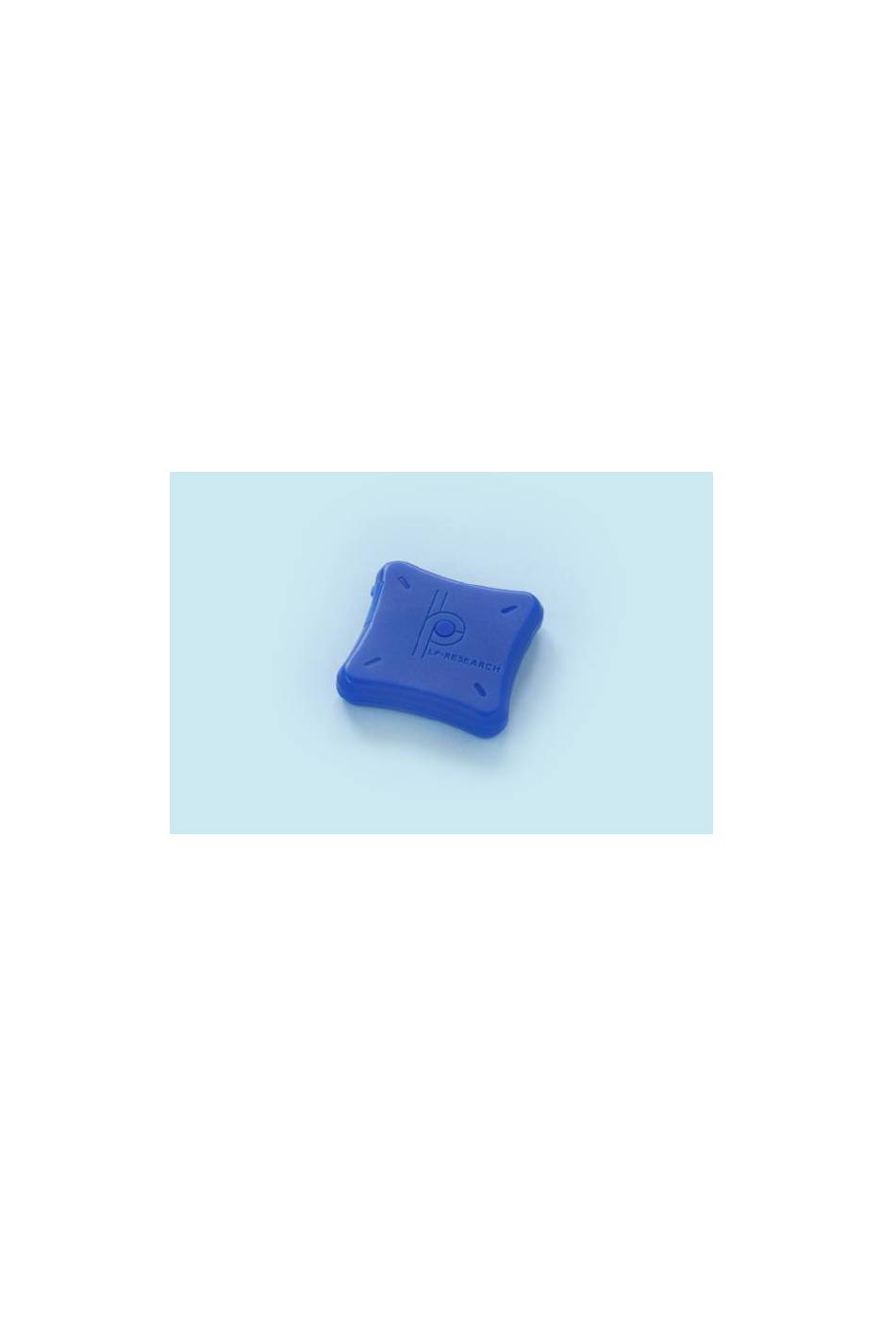

  • Page 1 LPMS-B2 Android App Manual ver. 1.0 LP-RESEARCH Inc. http://www.lp-research.com...
  • Page 2 Table of Contents Introduction ..................- 1 - Document Revision History ..............- 2 - III. Software Instructions ................- 3 -...
  • Page 3 Welcome to the LP-RESEARCH Motion Sensor LPMS-B2 Android application manual. In this documentation we will explain everything you need to know to quickly connect the LPMS-B2 with an android device. If you have any further questions or comments regarding this documentation please feel free to contact us anytime.
  • Page 4 LPMS-B2 Android App Manual ver. 1.0 Document Revision History Date Revision Changes 2016-09-01 - Initial release. - 2 -...
  • Page 5 Software Instructions IMPORTANT: This software only supports Android 5.0+. 1) After the installation is completed, please find “My LPMS-B2” application, and click it for open, as shown below. 2) If Bluetooth function on the android device has not yet been opened, a notice message will pop out as shown below.
  • Page 6 LPMS-B2 Android App Manual ver. 1.0 3) Click "SCAN AGAIN" button to discover sensors and select the one that you would like to connect. Two Bluetooth connection modes are available: Classic and BLE. Please choose the corresponding button for sensor connection at different Bluetooth modes. If no any device is discovered, please click the "AGAIN SCAN"...
  • Page 7 LPMS-B2 Android App Manual ver. 1.0 5) As shown in the following image, the parameters inside the red box are the current setting of sensor. The following parameters are available:  Transmission rate: data update rate from the sensor  GYR range: measurement range of gyroscope sensor ...
  • Page 8 LPMS-B2 Android App Manual ver. 1.0  Raw magnetometer  Raw gyroscope  Angular Velocity  Quaternion  Euler angle  Lin. Acceleration  Bar. Pressure  Altitude Data  Temperature Data Some of these data are checked as default setting. Please press the "Enabled Data" button to confirm the change of data type setting.
  • Page 9 LPMS-B2 Android App Manual ver. 1.0 8) Selecting the "Real Time" section will show the graphs of sensor data in real time, as shown in the following image. The type of visualized data can be changed through enabling the corresponding item.
  • Page 10 LPMS-B2 Android App Manual ver. 1.0 10) Selecting the "Function" section will show three icons corresponding to three different functions, as shown in the following image.  LpLogger: Sensor data can be saved into mobile memory "LpLogger" folder. The logged data file is named by time and is set at ".csv" format. Clicking once to start data logging and clicking again to stop.
  • Page 11 If the added sensor connection is successful a "Sensor xx connected" message will be prompted, otherwise a failure prompt will show up, seen as the image below. Copyright © 2016, LP-RESEARCH Inc. All rights reserved. http://www.lp-research.com - 9 -...
