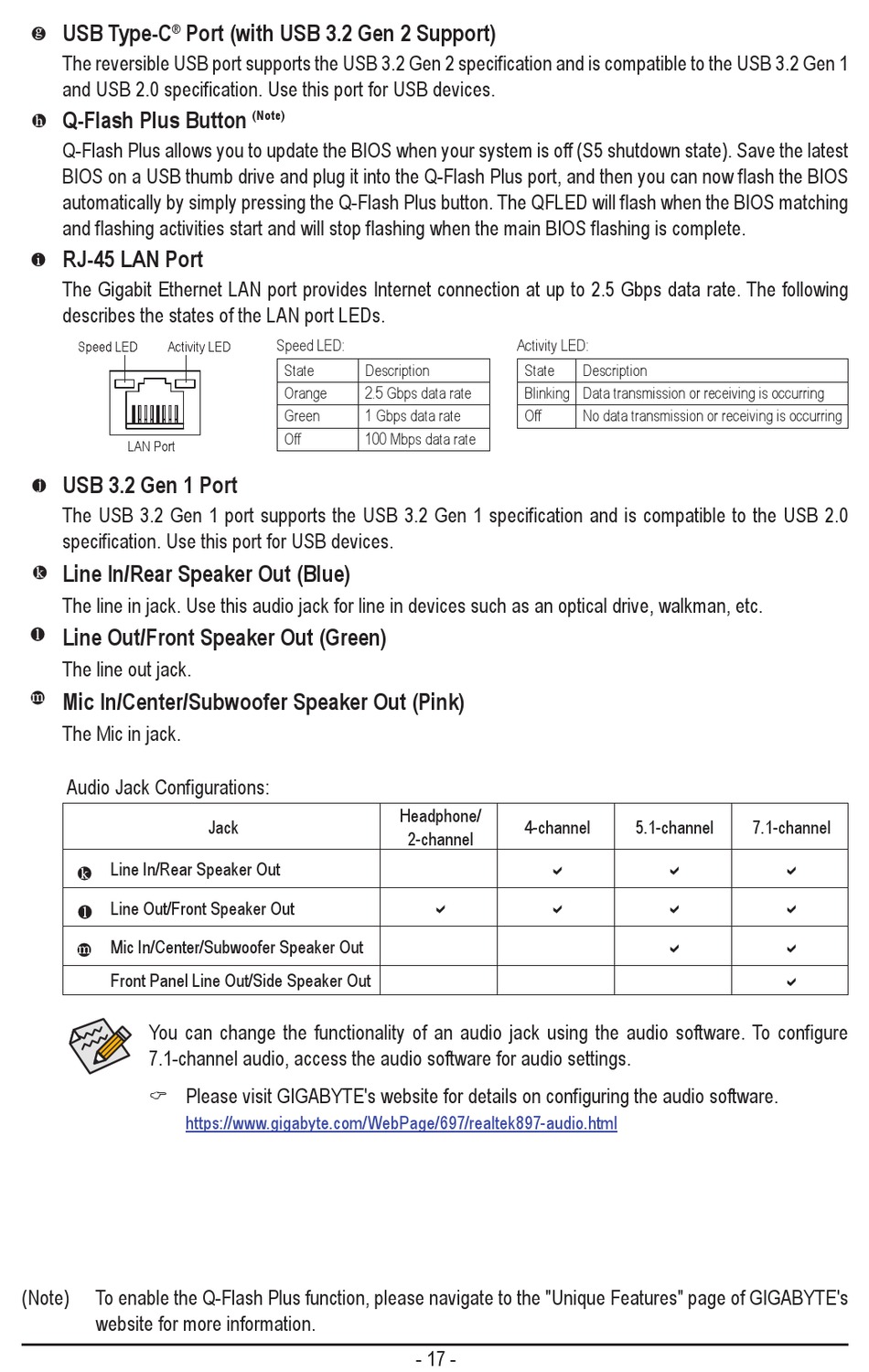

USB Type-C Port (with USB 3.2 Gen 2 Support)
®
The reversible USB port supports the USB 3.2 Gen 2 specification and is compatible to the USB 3.2 Gen 1
and USB 2.0 specification. Use this port for USB devices.
Q-Flash Plus Button
Q-Flash Plus allows you to update the BIOS when your system is off (S5 shutdown state). Save the latest
BIOS on a USB thumb drive and plug it into the Q-Flash Plus port, and then you can now flash the BIOS
automatically by simply pressing the Q-Flash Plus button. The QFLED will flash when the BIOS matching
and flashing activities start and will stop flashing when the main BIOS flashing is complete.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following
describes the states of the LAN port LEDs.
Speed LED Activity LED
LAN Port
USB 3.2 Gen 1 Port
The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specification and is compatible to the USB 2.0
specification. Use this port for USB devices.
Line In/Rear Speaker Out (Blue)
The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out/Front Speaker Out (Green)
The line out jack.
Mic In/Center/Subwoofer Speaker Out (Pink)
The Mic in jack.
Audio Jack Configurations:
Line In/Rear Speaker Out
Line Out/Front Speaker Out
Mic In/Center/Subwoofer Speaker Out
Front Panel Line Out/Side Speaker Out
You can change the functionality of an audio jack using the audio software. To configure
7.1-channel audio, access the audio software for audio settings.
& Please visit GIGABYTE's website for details on configuring the audio software.
https://www.gigabyte.com/WebPage/697/realtek897-audio.html
(Note) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's
website for more information.
(Note)
Speed LED:
State Description
Orange 2.5 Gbps data rate
Green 1 Gbps data rate
Off 100 Mbps data rate
Jack
Activity LED:
State
Blinking Data transmission or receiving is occurring
Off
Headphone/
4-channel
2-channel
a
a a
- 17 -
Description
No data transmission or receiving is occurring
5.1-channel
a
a
a
7.1-channel
a
a
a
a
