DOCUMENT
REVISION
December 11, 2017
Eaton Crouse-Hinds Series
Airport Lighting Products
1200 Kennedy Road
Windsor, CT 06095
2421
L
Instruction Manual

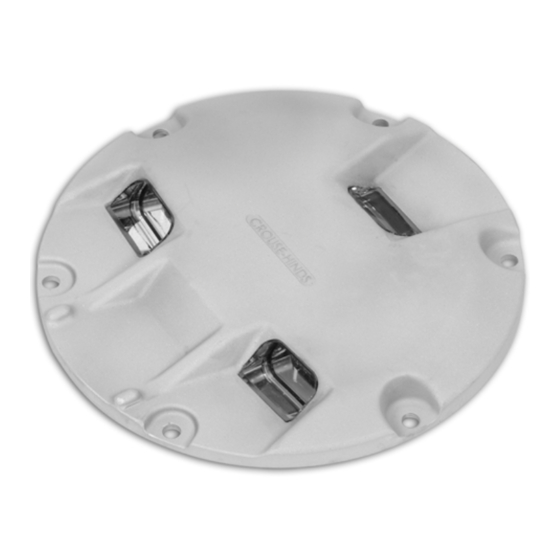

In-pavement ICAO Approach Light Fixture
C
C
o
o
p
p
y
y
r
r
For Parts or Technical Service Call (860) 683-4300
ANNEX 14, APPENDIX 2
Figures A2-1, A2-2, A2-3, A2-4, A2-8
i
i
g
g
h
h
t
t
©
©
2
2
0
0
1
1
7
7
C
C
o
o
o
o
p
p
e
e
r
r
T
T
e
e
c
c
h
h
n
n
o
o
l
l
o
o
g
g
i
i
e
e
s
s
C
C
o
o
m
m
p
p
a
a
n
n
y
y
Advertisement
Table of Contents
Related Manuals for Eaton Crouse-Hinds 8506A-CS-P1
Summary of Contents for Eaton Crouse-Hinds 8506A-CS-P1
-
Page 1: Title Page
REVISION December 11, 2017 Instruction Manual In-pavement ICAO Approach Light Fixture ANNEX 14, APPENDIX 2 Figures A2-1, A2-2, A2-3, A2-4, A2-8 Eaton Crouse-Hinds Series Airport Lighting Products © © 1200 Kennedy Road Windsor, CT 06095 For Parts or Technical Service Call (860) 683-4300... -
Page 2: Revisions
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Revisions Issue/Reissue Revision Description Created/Updated Checked Approved Letter Number See record copy for revision history Updated installation bolt torque range and torque A215-119 4/23/15 method; Added section 7.1, 7.2, and 7.3 Revised title page &... -
Page 3: Product Warranty
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Product Warranty Warranty Refer to Eaton’s Crouse-Hinds Airport Lighting Products Terms and Conditions for product specific warranty information. -
Page 4: Safety Notices
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Safety Notices This equipment is normally used or connected to circuits that may employ voltages that are dangerous and may be fatal if accidentally contacted by operating or maintenance personnel. Extreme caution should be exercised when working with this equipment. While practical safety precautions have been incorporated in this equipment, the following rules must be strictly observed: Keep Away from Live Circuits... -
Page 5: Table Of Contents
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Table Of Contents Title Page…………………………………………………………………………………..1 Revisions……………………………………………………………………..…..2 Product Warranty…………………………………………………...…....3 Safety Notices………………………………………………………..………..4 Table of Contents……………………………………………………………….…5 Part Number Explanation…………………………………………......6 General Description…………………………………………………………….….7 ICAO Approach Light……………………………………………………..7 Installation…………………………………………………………………………8 Metric Base Installation Bolt Torque and Installation Method..……..8 ANSI Base Installation Bolt Torque and Installation Method………...…..9 Heico-Lock Installation Guidelines (2014)……….……………………..9 Maintenance………………………………………………………………....10 Cleaning Lenses……………………………………………………..10... -
Page 6: Part Number Explanation
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Part Number Explanation 8506 A - XXX - XX FIXTURE TYPE: 850 = RUNWAY 6 = MODEL 6 C-H STYLE: A = ICAO APPROACH ICAO FIGURES: CS = FIGURE 2.1; CLEAR, STRAIGHT, UNIDIRECTIONAL R2L = FIGURE 2.2, TOE-LEFT;... -
Page 7: General Description
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture General Description ICAO Approach Light The Crouse-Hinds ICAO Approach Light is a Style II, (≤1/2 inch) fixture that meets the photometric requirements of ICAO Annex 14 fixtures 2.1, 2.2, 2.3, 2.4, and 2.8 with the appropriate lamp(s) and colored lens/lenses installed. -
Page 8: Installation
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Installation The style 2 IAL light units are shipped complete and are ready for installation as received. Installation of a light unit is to be done with primary POWER OFF and SECURED. At each light location, install a steel, Size B, 24 inch deep minimum, L-868 Light Base per FAA AC 150/5340-4 (latest revision). -
Page 9: Ansi Base Installation Bolt Torque And Installation Method
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture ANSI Installation Bolt Torque and Installation Method • Use fully threaded, cold-worked 18-8 stainless steel 3/8-16 bolts. (P/N 21715 is recommended. • Use Heico-Lock or Nord-Lock stainless steel lock-washers per FAA specifications*. •... -
Page 10: Maintenance
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Maintenance The preferred method of maintaining these lights is to periodically and systematically replace the units and return it to the maintenance shop for renovation. As an alternative, the units can be serviced in the field. -
Page 11: Lens Replacement
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture NOTICE: A bad o-ring seal is the most common cause of inset fixture leaks. A new o-ring must be installed every time the NOTICE Optical Assembly is opened Remove the old o-ring from the groove in the optical housing. Carefully clean the o-ring groove and flange mating surface on the inner cover. -
Page 12: Power Lead Feed-Thru Replacement
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Power Lead/ Feedthru Replacement The power leads are connected to water tight feedthrus in the inner cover. There is a coating of RTV over the connections, and an epoxy material to encapsulate the entire assembly. The power cord and feedthru components can be replaced, but shipping restrictions prohibit Crouse-Hinds from supplying the epoxy encapsulating material. -
Page 13: Cleanliness And Workmanship
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Cleanliness and Workmanship Service life depends upon the entire assembly being waterproof. All surfaces must be clean, dry and free of all foreign matter if the light fixture is to operate for extended periods without requiring maintenance. -
Page 14: Parts List
DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Parts Lists ITEM NO. 8506A-XXX-PX PART NUMBER DESCRIPTION SEE TABLE 21287 HOUSING, OPTICAL, ASS'Y, ICAO APPROACH 21385 O-RING, SIZE #2-273, 70 DUROMETER, SILICONE, POST CURED SEE TABLE 21286 COVER, BOTTOM, ASS'Y, ICAO APPROACH SEE TABLE 21295 BRACKET, BASE, ASS'Y, ICAO APPROACH... - Page 15 DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Figure 1: Exploded View of Fixture...
- Page 16 DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Figure 2: Isometric View of Fixture...
- Page 17 DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Figure 3: Top View of Fixture Figure 4: Side View of Fixture...
- Page 18 DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture Figure 5: Bottom View of Fixture...
- Page 19 DOCUMENT 2421 REV. L Instruction Manual ICAO Approach Fixture FEEDTHRU REPLACEMENT INSTRUCTIONS 1. Torque item 3 to 30 in-lbs 2. Coat items 3, 4, 5 and lead terminals, on the outside of the cover only, with item 10. Allow to cure for 8 hours. 3.
