Bobrick Koala Kare KB200-00 Quick Start Manual

Koala Kare Products
A Division of Bobrick
35''
890mm
500mm
22''
550mm
Pneumatic Cylinder
Finish Face of Floor
ADA Compliance
w
(when properly installed)
4.4.1 Max. Protruding Objects
4.2.5 Forward Reach
4.2.6 Side Reach
4.27.4 Operation
MATERIALS:
FDA approved injection-molded polypropylene with Microban
Reinforced steel-on-steel hinge mechanism and metal mounting chassis with mounting hardware included. Labelled usage
instructions and safety messages in four languages. Optional Braille label available. Contoured changing surface area is
450 sq. in (11,430 sq. mm) and comes complete with nylon safety strap and bag hooks. Dual cavity liner dispenser holds
approximately 50 KB150-99 bed liners.
The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet.
The manufacturer reserves the right to, and does from time to time, make changes and improvements in designs and dimensions without notice.

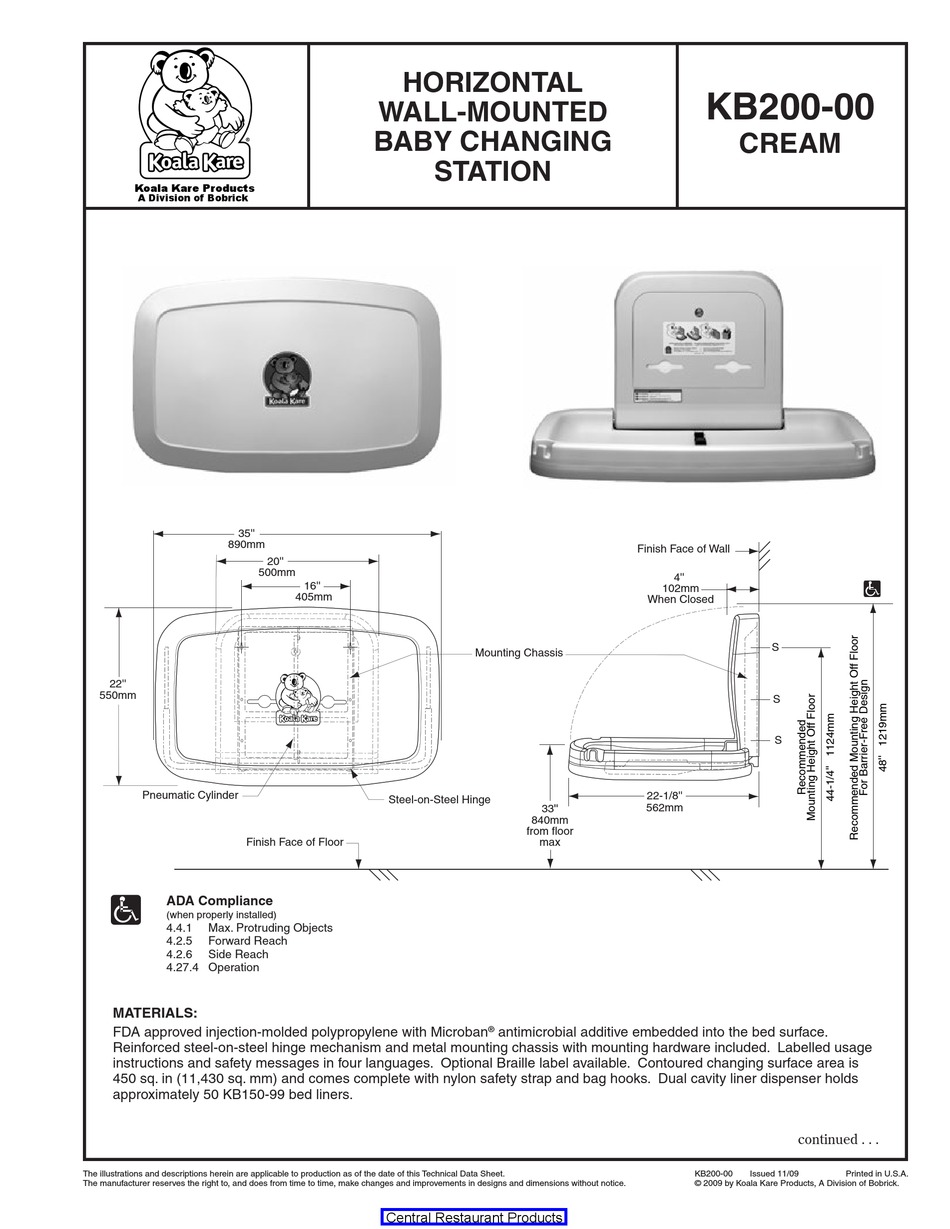

HORIZONTAL
WALL-MOUNTED
BABY CHANGING
STATION
20''
16''
405mm
Steel-on-Steel Hinge
Central Restaurant Products
Finish Face of Wall
When Closed
Mounting Chassis
22-1/8''
562mm
33''
840mm
from floor
max
antimicrobial additive embedded into the bed surface.
®
KB200-00
CREAM
4''
102mm
S
S
S
continued . . .
KB200-00 Issued 11/09
© 2009 by Koala Kare Products, A Division of Bobrick.
Printed in U.S.A.
