R
designation
reference
range
FUNCTIONS

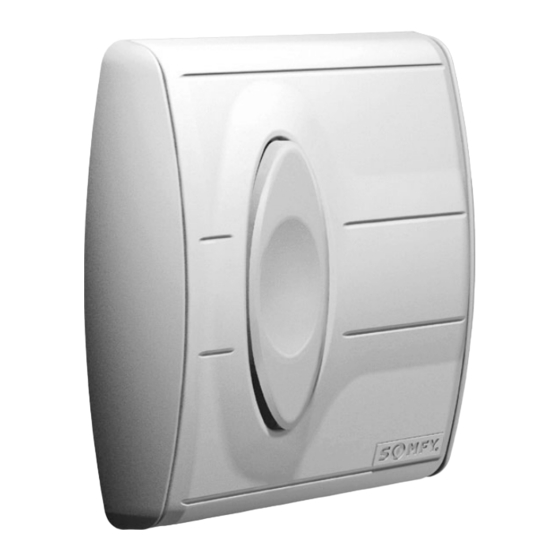

The INIS RT is a wireless control compatible with the RT
receivers.
Commands are transmitted by radio (frequency 433.42 MHz)
over a range of 10 meters in free space.
The functioning is a trip switch type : ▲, stop, ▼, stop,....
At each control given by the transmitter, the code is automatically
changed (16 million of possibilities).
TECHNICAL SPECIFICATIONS
Box
Battery
Battery life time
( at ambient temperature )
Frequency
Radiated power
Modulation type
Standard
Temperature range
Antenna
Electromagnetic compatibility
Range
Weight
CE Requirements
E L E C T R O N I C
INIS RT
154180A
INTEO
Material
Color
Size
Protection factor against solid IP 30
and splashproof
Voltage
Type
Storage
Working
CEI 1000-4-2
CEI 1000-4-3
minimum guaranteed
P R O D U C T
10/11/99
DMKI-FPTE 154180R0
ABS
White and grey
80 x 80 x 17 m
Battery 3 V DC
2430 Lithium
3 years
(4 actions of 1" per day)
433,42 MHz ±100kHz
-10dBm or 100microW
ASK type A1
IETS 300-220
IETS 300-683
0°C at +70°C
+5°C at +40°C
inside the box
8 kV minimum
level II guaranteed
10m in free field
Yes
F O R M

Advertisement

loading
Need help?

Need help?

Do you have a question about the INTEO INIS RT and is the answer not in the manual?

Questions and answers

Summary of Contents for SOMFY INTEO INIS RT

  • Page 1 E L E C T R O N I C P R O D U C T F O R M 10/11/99 DMKI-FPTE 154180R0 designation INIS RT reference 154180A range INTEO FUNCTIONS The INIS RT is a wireless control compatible with the RT receivers.
  • Page 2 DIMENSIONS / MOUNTING CLAC Inis RT COMPATIBILITIES at the 10/11/99 IN THE OTHER RANGES IN THE RANGE LT RTS CENTRALIS indoor RTS PF receiver RTS IPSO RTS PROGRAMMING 1. Set the receiver in its programming mode (the receiver must be compatible with INIS RT). 2.
