Solight 1D22 User Manual

EN User manual for wireless motion detector-gong Solight 1D22
Dear customer, thank you for purchasing our product. Please read the following instructions carefully and follow them to serve you
safely and to your full satisfaction. Avoid unprofessional handling of this appliance and always follow the electrical appliance usage
guidelines. Keep the instruction manual. For use in the home or indoors. Do not expose the receiver (doorbell) to environments with
high humidity, avoid contact with liquids and aggressive substances

Description

The device is used to alert you to a movement in the monitored area. The range of the signal is max. 40m in an open area.
The receiver (gong) and transmitter (sensor) operate at a frequency of 433.92 ±1 MHz.
Receiver: Open the battery cover and insert 3x AA alkaline 1.5V batteries. Observe the marked polarity. Adjust the melody and
volume using the control buttons. The volume level changes from lowest to highest and back again, one beep is heard each time.
The receiver can be freely stood up, laid down or hung on the mounting hole. Do not cover the speaker.
Transmitter:
Power: Open the battery cover and insert 3x AAA alkaline 1.5V batteries. Observe the marked polarity. To power the device from
an external source, connect the USB charger cable to the Micro USB connector. Use an adapter with a DC 5V output voltage. Do
not insert batteries when using USB power; the transmitter is also not used to charge batteries. You can use the power switch to
turn the sensor off.
Installation: The infrared inductive sensor detects motion at angles of 100° horizontally and 15° vertically. The detection range is
0 - 8m. Place the transmitter at this distance from the desired monitoring location. The swivel base can be mounted with mounting
holes on the wall or placed freely on a table. Thanks to the 360° rotation of the base and 180° rotation of the transmitter mount, the
correct detection angle can be set at any location. Before installing the screws into the wall, first test whether the detector is able to
detect motion from that location.
Note: The transmitter detects horizontal or vertical movement in front of the infrared sensor, e.g. from left to right or from top to
bottom, roughly parallel to the back cover of the unit. Perpendicular movement, e.g. a person approaching
be 100% detected and the audible alarm may not sound. Therefore, place the transmitter in places where people will be passing
by, not approaching. Environmental conditions such as high humidity, very low temperature, dense fog, smoke or rapid temperature
changes such as airflow from an air conditioner, fan or chimney may impair motion detection. Wireless transmission is limited by
walls, metal and iron-concrete structures, Radio-TV-WiFi devices and other types of electromagnetic waves and shielding.
LED diode
Infrared detector
Power supply/ Napájení/ Napájanie
Power consumption/ Spotřeba energie/ Spotreba energie
Optional melodies/ Volitelné melodie/ Voliteľné melódie
Volume/ Hlasitost/ Hlasitosť
Protection class/ Třída ochrany/ Trieda ochrany
Working Temperature/ Provozní teplota/ Prevádzková teplota
Signal range/ Dosah signálu
Transmitting frequency/ Přenosová frekvence/ Prenosová frekvencia
Solight Holding s.r.o. declares that the product complies with the requirements and provisions of Directive 2014/53/EU. The device
can be operated freely in the EU. The product can be operated under general authorisation No.VO-R/10/05.2014-3.
Manufacturer:
Solight Holding, s.r.o., Na Brně 1972, Hradec Králové 500 06, info@solight.cz.
Declaration of compliance is available at www.solight.cz.

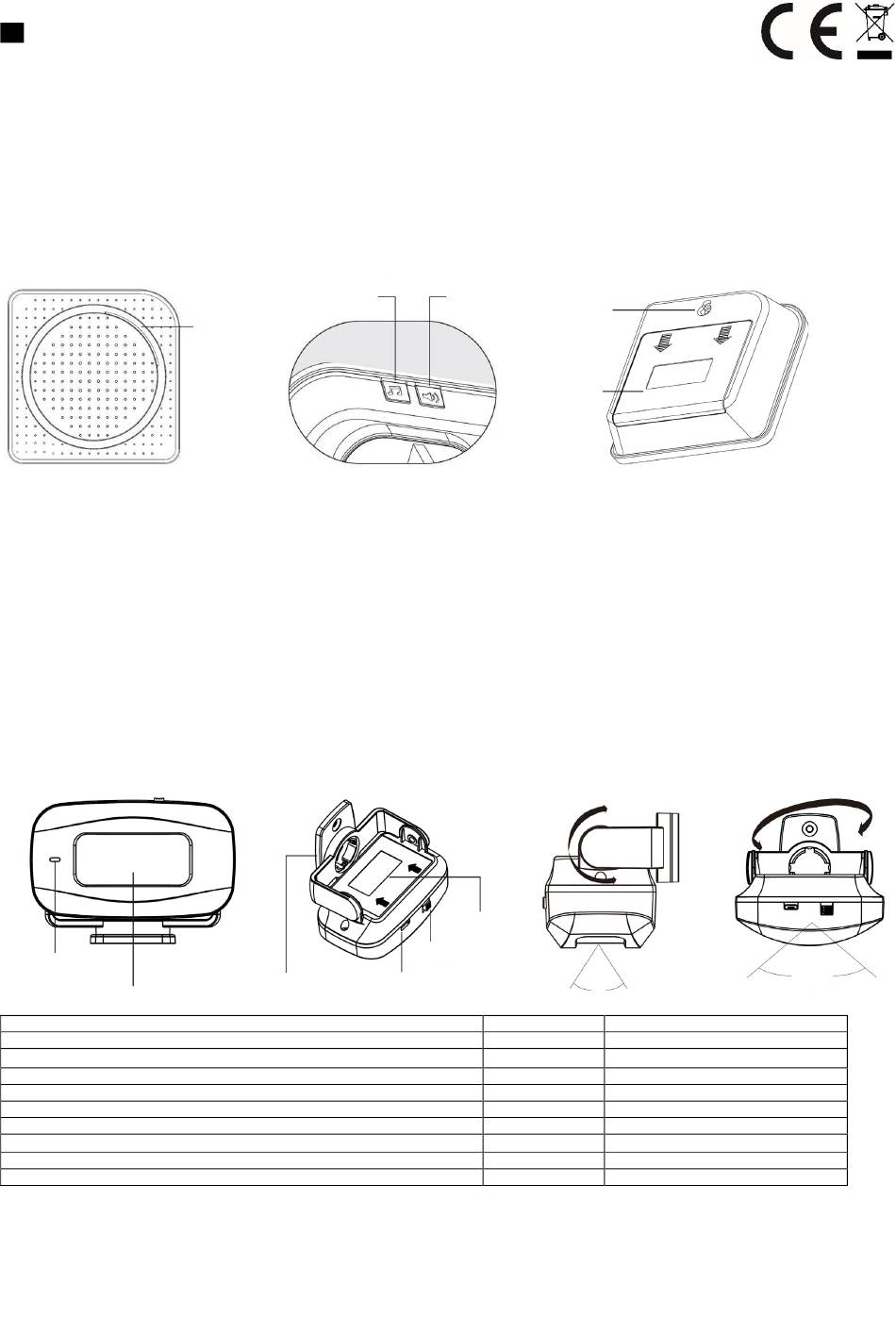

Button to change the
melody
LED diode
Positionable base Micro USB
Button to change
Volume
Battery
180°
Battery
ON/OFF
Detection
Gong
Senzor
Gong
Senzor
Gong
Gong
Gong + Senzor
Gong + Senzor
Installation
hole
to the sensor
360°
adjustment
15°
DC 4.5V, 3x AA
DC 4.5V, 3x AAA / USB DC 5.0V
<0,5W
<10mW
36
65 - 80 dB
IP20
-10°C / +50°C
max. 40m
433,92 ±1 MHz
, may not
100°
detection
