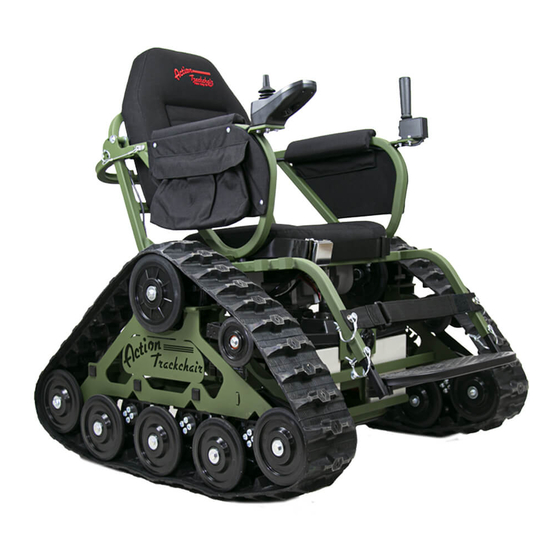

Summary of Contents for Action Trackchair STS
- Page 2 www.actiontrackchair.com...
-
Page 3: Table Of Contents
Helpful Hints ................... 3 ® Trackchair ® Comfort Adjustments ................4 Batteries and Charging....................5 Repairs and Maintenance ................... 7 Cleaning your Action Trackchair ................10 ® Warranty ........................11 Joystick Diagnostic Reference ................12 Transporting your Action Trackchair ..............14 ®... -
Page 4: Safety Instructions
• Keep hands and fingers away from the rotating parts of the tracks and pinch points. • Make sure controls are turned OFF when getting in or out of the seat. • Make sure controls are turned OFF before placing a cover over the Action Trackchair ®... -
Page 5: Trackchair ® Helpful Hints
• The battery indicator is on the main screen of the controls. Battery charge will last up to approximately four hours, depending on battery condition and type of use the Trackchair ® subject to. Action Trackchair ® has a built-in battery charger that plugs into a 120-volt outlet for North America, or a universal charger if sold overseas for AC voltage from 90 volts to 240 volts. -
Page 6: Trackchair ® Comfort Adjustments
• ST/TR/STS/NT will tilt forward and backward by depressing the rocker switch on the grab handle. • ST/STS arms will move up and down by pulling the pin on the rear of arm and lifting. TR arms will move up and down simultaneously. NT/NR arms move up and down independently. -
Page 7: Batteries And Charging
Batteries and Charging (Dual Pro 120V AC only) The Action Trackchair will not drive while the chair is plugged ® into the wall outlet and charging the batteries. • Battery charge will last up to four hours, depending on battery condition, temperatures, and type of use the Trackchair ®... - Page 8 Batteries and Charging – EU Models (ProSport) • Operation after applying AC Power to the ProSport Charger connected to discharged batteries. (European Models Only) During the startup test the battery type LED will be illuminated and the red charge mode LED will flash indicating that the unit is in a self-test mode.
-
Page 9: Repairs And Maintenance
Repairs and Maintenance Track adjustment procedure for NT/NR models Tracks can be adjusted by loosening both bolts on the front idler wheels, inside and outside. Track tensioners can be tightened with a 9/16 wrench by turning track tensioner bolts clockwise an even amount. - Page 10 Note blue arrow. ST/TR track adjustment bolts Track adjustment procedure for STSx/STS models Tracks can be adjusted by loosening the bolt on the rear idler wheels. Track tensioners can be tightened with a 9/16 wrench, or swivel socket with extension by turning track tensioner bolts clockwise an even amount.
- Page 11 Your daily maintenance is as simple as plugging in the Action Trackchair® to a standard wall receptacle and giving it a rinse now and then. This is a very stable, dependable, durable, and user-friendly machine!
-
Page 12: Cleaning Your Action Trackchair
Cleaning your Action Trackchair ® • The Action Trackchair ® can be washed with a garden hose. It is not recommended to use a pressure washer to clean your chair. • ALWAYS cover the joystick with the black cover provided or with a plastic bag from getting moisture inside. -
Page 13: Warranty
THIS WARRANTY DOES NOT COVER CLAIMS OF DEFECTIVE DESIGN. This warranty also does not cover acts of God, accidental damage, normal wear and tear, abuse, or improper handling. This warranty also does not cover any Action Trackchair ® component, or part that has been altered structurally, modified, neglected, improperly maintained, or purposes other than for which it was designed. -
Page 14: Joystick Diagnostic Reference
Joystick Diagnostic Reference Hand Control Display Fault / Warning Remedy Power Section Fault, Main 1. Cycle Power. Relay Fault, or Pre-charge 2. Replace powerbase. Fault, or HW Failsafe Fault. Joystick Fault. 1. Return joystick to neutral and cycle power. 2. Recalibrate joystick. 3. - Page 15 Overvoltage Warning. 1. Wait for voltage to come down. 2. Replace old battery. 3. Check charger; replace if faulty. Low Battery. 1. Recharge Battery. Battery Charging; Inhibit 1. Unplug charger when charging is complete. Seatback Actuator Driver 1. Select drive or a different actuator; Fault.
-
Page 16: Transporting Your Action Trackchair
Transporting your Action Trackchair ® Proper strapping options for the Action Trackchair ® to the carrier ***Class III receiver hitch required for carrier. Check automobile manufacturers recommendation for hitch capacity. STS/ST/TR Model Photos: Strap to lower portion of chair in the rear. -
Page 17: Rocker Switch Override Instructions
Rocker Switch Override Instructions If the actuator is not moving up or down, follow the steps below: • First check the fuse in the black fuse holder located at the black and red 16 gauge wire harness which comes off the battery. Fuse type is an ATC 20 amp. •... -
Page 18: Law, Regulation And Policy For Wheelchair/Mobility Device Use In "Federally Designated Wilderness
Law, Regulation and Policy for Wheelchair/Mobility Device Use in “Federally Designated Wilderness” (ADA Title V Section 508c, as amended in 2008) (1) IN GENERAL – Congress reaffirms that nothing in the Wilderness Act prohibits wheelchair use in a wilderness area by an individual whose disability requires its use. The Wilderness Act requires no agency to provide any form of special treatment or accommodation or to construct any facilities or modify any conditions of lands within a wilderness area to facilitate such use. -
Page 19: Notes
NOTES www.actiontrackchair.com...
