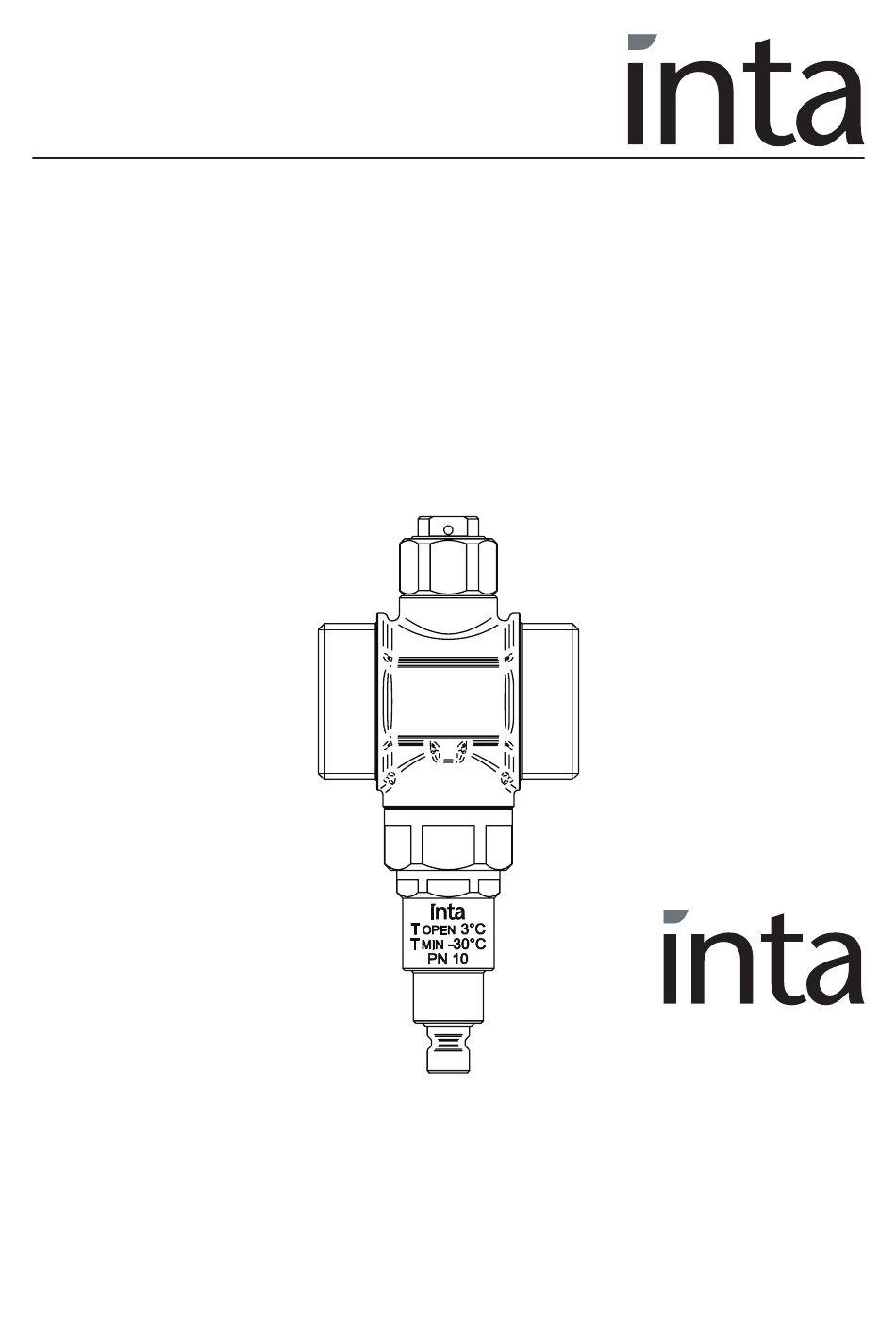

Zero Anti-Freeze Valve
ZERO001 & ZERO28
Installation and Maintenance Instructions
Intatec Ltd
Airfield Industrial Estate
Hixon
Staffordshire
ST18 0PF
In this procedure document we have endeavoured to make the
Tel: 01889 272 180
information as accurate as possible.
Fax: 01889 272 181
We cannot accept any responsibility should it be found that
email: sales@intatec.co.uk
in any respect the information is inaccurate or incomplete or
web: www.intatec.co.uk
becomes so as a result of further developments or otherwise.
© Intatec Ltd 2022
Advertisement
Table of Contents
Summary of Contents for intatec ZERO001
- Page 1 Zero Anti-Freeze Valve ZERO001 & ZERO28 Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the Tel: 01889 272 180 information as accurate as possible. Fax: 01889 272 181 We cannot accept any responsibility should it be found that email: sales@intatec.co.uk...
-
Page 2: Technical Specification
4˚C Threaded connections: BS EN ISO 228 Compression connections: BS EN 1254-2 Materials Valve body: Brass BS EN 12165 CW617N Spring: Stainless steel Temperature element: Internal seals: EPDM peroxide Internal parts: Brass BS EN 12164 CW617N © Intatec Ltd 2022... -
Page 3: Check Components
Ensure all parts are present, before discarding any packaging. If any parts are missing, do not attempt to install your Inta Zero anti-freeze valve until the missing parts have been obtained. Vaccum breaker Olive Compression ZERO001 Temperature or valve for cartridge ZERO28 © Intatec Ltd 2022... -
Page 4: Preparation For Installation
>15cm valve discharging onto the valve below. The valve must be free of insulation for the system to work properly. When installed outdoors, the Zero antifreeze valve must be protected from rain, snow and direct sunlight. © Intatec Ltd 2022... - Page 5 If the shape of the connection pipes has the potential to create a trap effect (as shown below), part of the pipe will not be able to drain and frost protection will no longer be ensured. û û û û © Intatec Ltd 2022...
-
Page 6: Maintenance
In the event of a malfunction, the thermostatic cartridge can be replaced. Using a 26mm A/F spanner remove the cartridge from the body and replace with a new one. Replacement Components Replacement components are available from Inta. Fit only genuine Inta replace components. © Intatec Ltd 2022... - Page 7 Notes: © Intatec Ltd 2022...
- Page 8 To activate your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk E & O.E 21-09-22 © Intatec Ltd 2022...
