K I T A
C
S S E M B L Y

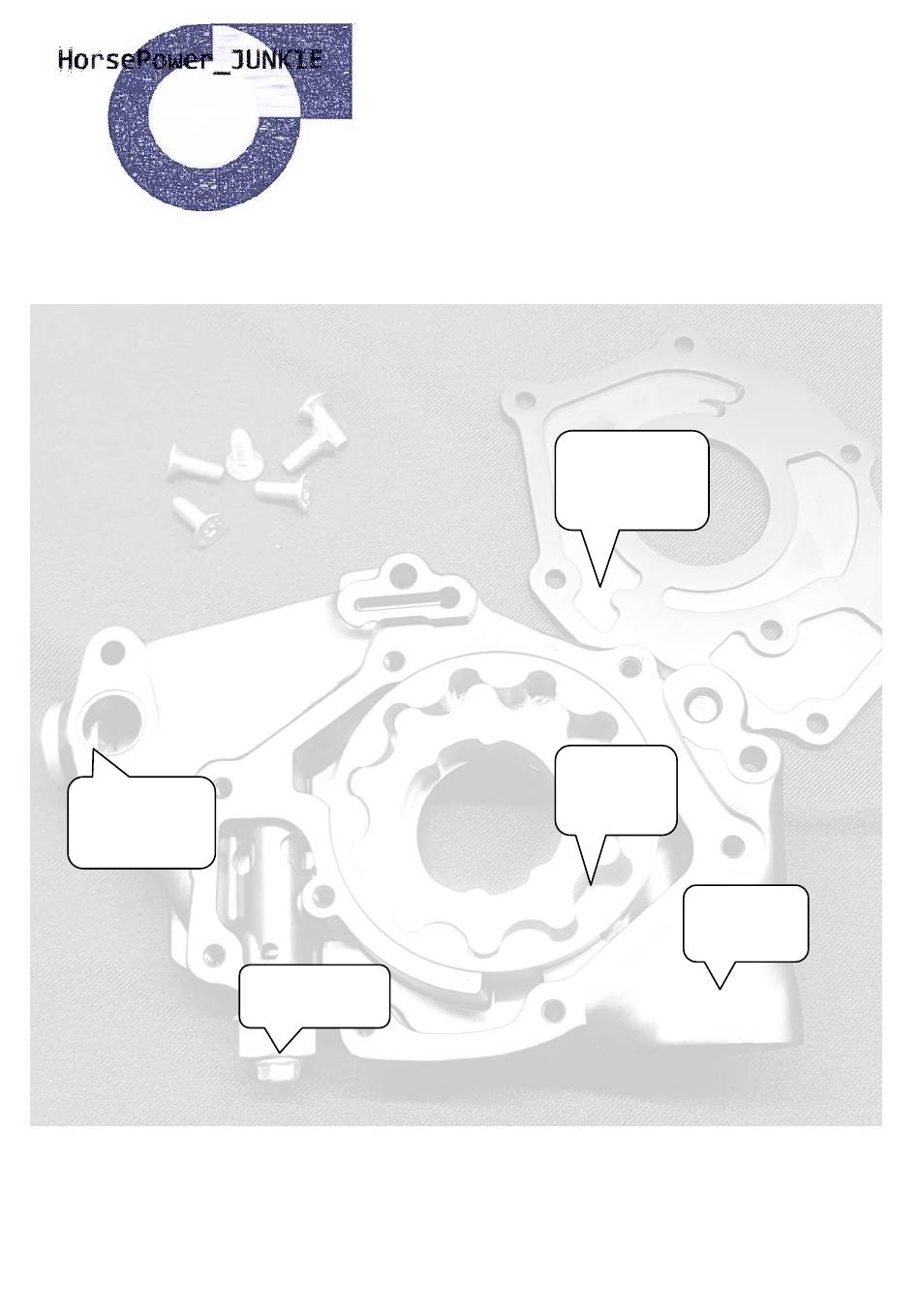

1.
Billet Pump Body HP_1000+
2.
Billet Pump Gear set HP_398
3.
Billet Thrust Plate HP_414
4.
QTY(8) M6 C/S Cap screws 12.9
5.
QTY(4) S/H Cap screws 12.9
6.
Adjustable relief spring assembly
7.
M18 Plug
8.
QTY(1) O'ring Gasket (Outlet)
Outlet O-
ring Groove
HP_1000+ Billet Pump Set
O N T E N T S
Adjustable
Relief Valve
Installation Manual
BA / BF FG 4lt Turbo
THRUST
PLATE
HP_414
GEAR SET
HP_398
HP_1000+
BODY
Advertisement
Table of Contents
Summary of Contents for Horsepower Technologies HP 1000+
- Page 1 Installation Manual HP_1000+ Billet Pump Set BA / BF FG 4lt Turbo K I T A S S E M B L Y O N T E N T S Billet Pump Body HP_1000+ Billet Pump Gear set HP_398 Billet Thrust Plate HP_414 QTY(8) M6 C/S Cap screws 12.9 THRUST QTY(4) S/H Cap screws 12.9...
- Page 2 INSTALLATION NOTES “Note these are RACE ONLY parts and should only be used as such” Loctite applied to all THR Loctite applied to all Apply very THRD’s light coat of sealant to mating face D’s ...
- Page 3 HP_1000+ Billet Pump Congratulations, You have just purchased the original and the very best high flow / high volume pump available for your “Barra” engine. HPJ highly recommends installation to be completed by a qualified “Engine Builder”. Each pump set is pre-assembled, blue printed ready to install... Once the pump is removed from the packaging, you will find a set of four (4) M6 cap screws these are used to retain the pump to the block, an o’ring and an instruction card.
