Summary of Contents for Filtech DP 200

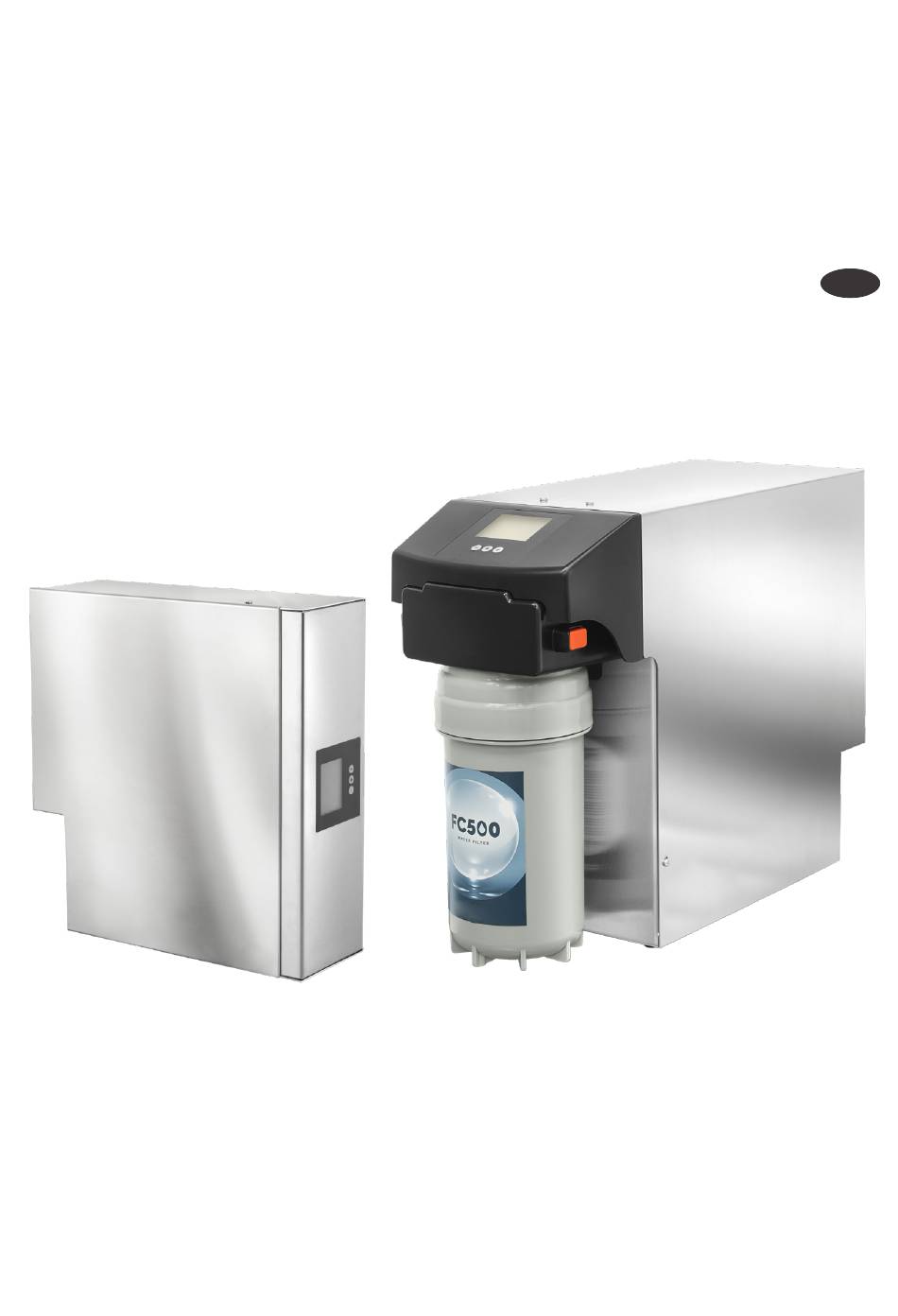

- Page 1 Use and maintenance manual Reverse osmosis device DP 200, DP 200 T, DP 200 SLIM, DP 200 SLIM LT DP 400, DP 400 T, DP 500, DP 500 T...
-
Page 3: Table Of Contents
Table of Contents 1 - INTRODUCTION ................5 2 - TECHNICAL CHARACTERISTICS ........... 6 3 - SAFETY .................... 7 4 - STORAGE ..................7 5 - CONDITIONS OF USE AND PERIOD OF USE ......... 9 6 - INSTALLATION ................. 11 7 - SPARE PARTS AND PRE-FILTRATION .......... - Page 4 IMPORTANT The manufacturer of the system, hereinafter simply called the manufacturer, is Fil-Tech srl, VAT no.: 02299000352 Please read this manual carefully and follow the instructions herein for the guarantee that your reverse osmosis system works properly. Failure to comply with these instructions will void the warranty. The manufacturer cannot be held in any way liable for any damage to people or property caused by a failure to comply with this attached manual, which is an integral part of the scope of supply.
-
Page 5: Introduction
DP 500 DP 500 T DP 200 SLIM DP 200 SLIM LT 1 - INTRODUCTION Osmosis is a natural phenomenon for which a solution poor in mineral salts passes through a semi-permeable membrane then it is diluted in another one that has a greater saline concentration. -
Page 6: Technical Characteristics
2 - TECHNICAL CHARACTERISTICS ELECTRICAL POWER SUPPLY 220VAC - 50Hz MAXIMUM POWER MODELS 400 AND 500 500W MAXIMUM POWER MODELS 200 AND SLIM 250W FUSE MODELS 400 AND 500 5A T FUSE MODELS 200 AND SLIM 3.15A T MIN/MAX SUPPLY PRESSURE [bar] 1 / 5 PUMP MAXIMUM PRESSURE [Bar] MIN/MAX WATER TEMPERATURE [°C]... -
Page 7: Safety
3 - SAFETY The electrical safety of this equipment is only ensured when connected to an electrical system provided with an efficient grounding and a differential circuit breaker pursuant to law. Checking this fundamental requirement for safety is compulsory. If in doubt, resort to a qualified technician. - Page 8 DP 200 22.4 DP 200 T 43.5 32.9 DO 400 30.1 DP 400 T 43.5 42.4 DP 500 34.6 DP 500 T 43.5 46.6 DP 200 SLIM 14.5 16.2 DP 200 SLIM LT 14.5 16.2 - 8 -...
-
Page 9: Conditions Of Use And Period Of Use
5 - CONDITIONS OF USE AND PERIOD OF USE Reverse osmosis system - processing essentially consists in an adjustable reduction of fixed residue in treated water. The machine is intended for use in a closed and protected environment, not outdoors. Its use consists of treating and supplying drinking water for human consumption and for technical use. - Page 10 Chemical and bacteriological potability (Ministerial Decree no. 31 of 02/02/2001) sampling date 15/11/2019 (properly adjusted machine) DP400 Test U.M. Water input mat. H102001 Viable microorganisms at CFU/mil <1 <1 36°C Vital microorganisms at CFU/1mil <1 22°C Escherichia coli CFU/100mil Coliform bacteria CFU/100mil Intestinal enterococci CFU/100mil...
-
Page 11: Installation
6 - INSTALLATION Installation and maintenance should be carried out to standard by specialist technicians, in particular in compliance with this manual, pursuant to Ministerial Decree no. 25 of 7 February 2012 and, where relevant, with provisions in Ministerial Decree no. 37 of 22 January 2008. The reverse osmosis purifying system was designed for installation in a closed envi- ronment, not outdoors, in a hygienically suitable location, protected from frost. - Page 12 Start-up: Having connected the water system: • Open the water supply slowly, making sure there is no leakage. • Press the start button • Open the tap and let water flow to bleed the air. ATTENTION: Do not operate the machine without having opened the water supply first. The pump can get damaged if run dry.
-
Page 13: Spare Parts And Pre-Filtration
7 - SPARE PARTS AND PRE-FILTRATION The machine requires carbon filter pre-filtration, which is not an optional, use only materials supplied or approved by the manufacturer . Not installing pre-filtration or use of unapproved components will cancel the warranty. Approved pre-filtration: FC500 FC500 Puro For maintenance, use only spare parts supplied or approved by the manufacturer . - Page 14 Basic operation The systems of the DP series deliver water with an automatic osmosis management. Water delivery is controlled by a maximum pressure switch inside the machine. When the water demand ceases (for example, when the tap is closed on the permeate pipe), the pressure rises up to the tripping value of the pressure switch (2.5 bar), and the control unit will stop water delivery.
-
Page 15: Maintenance
9 - MAINTENANCE For all technical and operational issues, please contact the manufacturer's Tech- nical Support Division. Installation and maintenance should be carried out to standard by specialist technicians, in particular in compliance with this manual, pursuant to Ministerial Decree no. 25 of 7 February 2012 and, where relevant, with provisions in Ministerial Decree no. - Page 16 IMPORTANT After the sanitisation procedure, use a measuring kit to check the concentration of free chlorine in the permeate water. The concentration permitted for drinking water may vary based on local standards. For some technical applications, the concen- tration of chlorine permitted is under that permitted for drinking water. See the technical data sheet and the safety data sheet, which can be requested from the manufacturer.
- Page 17 8. Make sure the assembly is correct and that there are no leaks before mounting the casing back on. 9. Record the replacement in the maintenance table of this manual or by using the RO-Check app. Dismantling procedure for the vessel unit Vessel L shaped connector Locking clip...
-
Page 18: Electronic Management
10 - ELECTRONIC MANAGEMENT LCD CONTROL UNIT Basic functions • Delivery piloted by a pressure switch or with a tap with button • Pump protection with a minimum pressure switch • Flushing after each delivery • Anti-residue every 6 hours •... - Page 19 Icon - Time until filter change (in days) Icon - Timer Display board Reset key (R) FILTER MANAGEMENT The board manages the filter. The capacity can be set based on the quantity of water processed and the time past (365 days). When the filter runs out, the icon (9) will be flashing, the board can lock or not, based on the configuration (see configuration section).
- Page 20 RO-CHECK SYSTEM The control unit can manage both reverse osmosis machines, HORECA machines, with a minimum pressure switch, and household appliances. Basic functions • Delivery piloted by a pressure switch • Pump protection with input pressure transducer • Pump pressure transducer with alarms •...
- Page 21 Conductivity sensor Cable with integrated sensor Litres counter sensor Cable with resin-coated sensor in manifold Power board Setting dip switch (both at 0) Maximum pressure switch Yellow cables with faston 6.3m Anti-flooding White / black cable with welded sensor Icon - Flooding Icon –...
- Page 22 NAME OF REGISTER SETTINGS Input flow rate Icons 13, (14) • Lock alarm 20 flashing Input pressure Icons 13, (14) • Lock alarm 20 flashing Icons 13, 14 Pump not working 21 flashing Icons 13, 14 Low pump pressure 21 flashing Icons 13, 14 High pump pressure 21 flashing...
-
Page 23: Fault Management
11 - FAULT MANAGEMENT FAULT TABLE Anomaly Intervention The alarm is triggered by an input pressure under 0.5 bar when Input pressure alarm the machine is not in water delivery mode. Check the water supply circuit and for possible shut-off taps closed. The alarm is triggered by an input pressure under 0.5 bar when the machine is in water delivery mode. - Page 24 The alarm is triggered by water on the flooding sensor. Disconnect the electrical power supply, identify and repair the cause. Excess Leak alarm humidity in the environment can also cause condensate. Before starting the machine, make sure the sensor is perfectly dry. If necessary, blow with compressed air.
-
Page 25: General Design
12 - GENERAL DESIGN DP 200 - DP 400 - DP 500 - 25 -... - Page 26 DP 200 T - DP 400 T - DP 500 T - 26 -...
- Page 27 DP 200 SLIM DP 200 SLIM LT - 27 -...
- Page 28 Please find below the nomenclature of parts. For spare parts, refer to their numbers. DESCRIPTION Vessel unit (varies based on model) Locking clip Casing (varies based on model) Permeate manifold Drainage manifold Double modular solenoid valve Bracket Control unit with wiring Display (varies based on model) Casing display Display protection...
- Page 29 JG blind end 12 Osmosis diverter / bypass Electrical power socket with fuse Osmotic membrane 3012 RACCO030, tank fitting JG fitting G3/8 tube 12 Tank version tubes kit (varies based on model) JG T 12 DP tank JG reduced elbow 10 8 JG reduced elbow 3/8 5/16 Minimum pressure switch Slim pressure gauge with fittings...
-
Page 30: Warranty Rules
13 - WARRANTY RULES 1. The equipment is warranted for the time set forth in the legislation in force. In particular, 1 year from invoicing to a VAT no., 2 years from the sale to a private individual. 2. “Warranty” is intended as the free of charge repair or replacement of the equipment components recognised by the manufacturer as faulty. - Page 31 DECLARATION OF CONFORMITY The manufacturer company, Fil-Tech srl VAT no. 02299000352, declares under its own responsibility that reverse osmosis devices: meet the essential requirements provided in the EU Directives in force: DIRECTIVE 2014/35/EU LVD DIRECTIVE 2014/30/EU EMC DIRECTIVE 2011/65/EU ROHS IEC EN62233 DIRECTIVE 2014/68/EU (PED) MINISTERIAL DECREE 174 OF 6 APRIL 2004...
-
Page 32: Certificato Di Installazione - Installation Certificate
CERTIFICATO DI INSTALLAZIONE - INSTALLATION CERTIFICATE Compilare il seguente modulo per la garanzia: Fill in the following form for the warranty: Certificato di installazione n° Installation certificate no. IMPIANTO AD OSMOSI INVERSA - REVERSE OSMOSIS SYSTEM Dati macchina - Machine data modello - model matricola n°... -
Page 33: Tabella Manutenzioni - Maintenance Table
TABELLA MANUTENZIONI - MAINTENANCE TABLE intervention Date/Signature Intervento successivo/ Next Intervento programmato/ Date/Signature Scheduled intervention PRIMA SANIFICAZIONE FIRST SANITISATION... - Page 34 intervention Date/Signature Intervento successivo/ Next Intervento programmato/ Date/Signature Scheduled intervention...
- Page 35 intervention Date/Signature Intervento successivo/ Next Intervento programmato/ Date/Signature Scheduled intervention...
