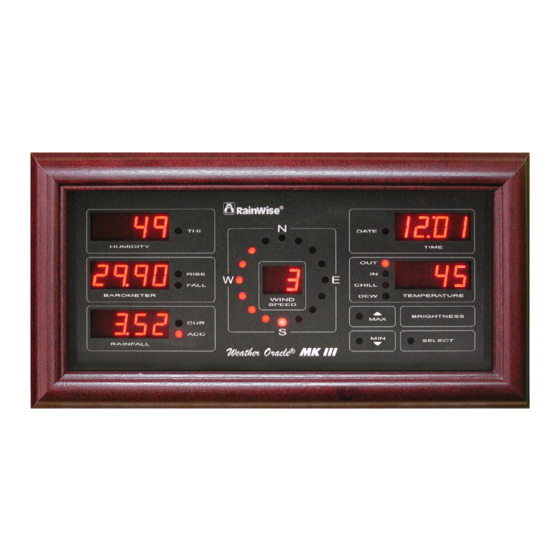

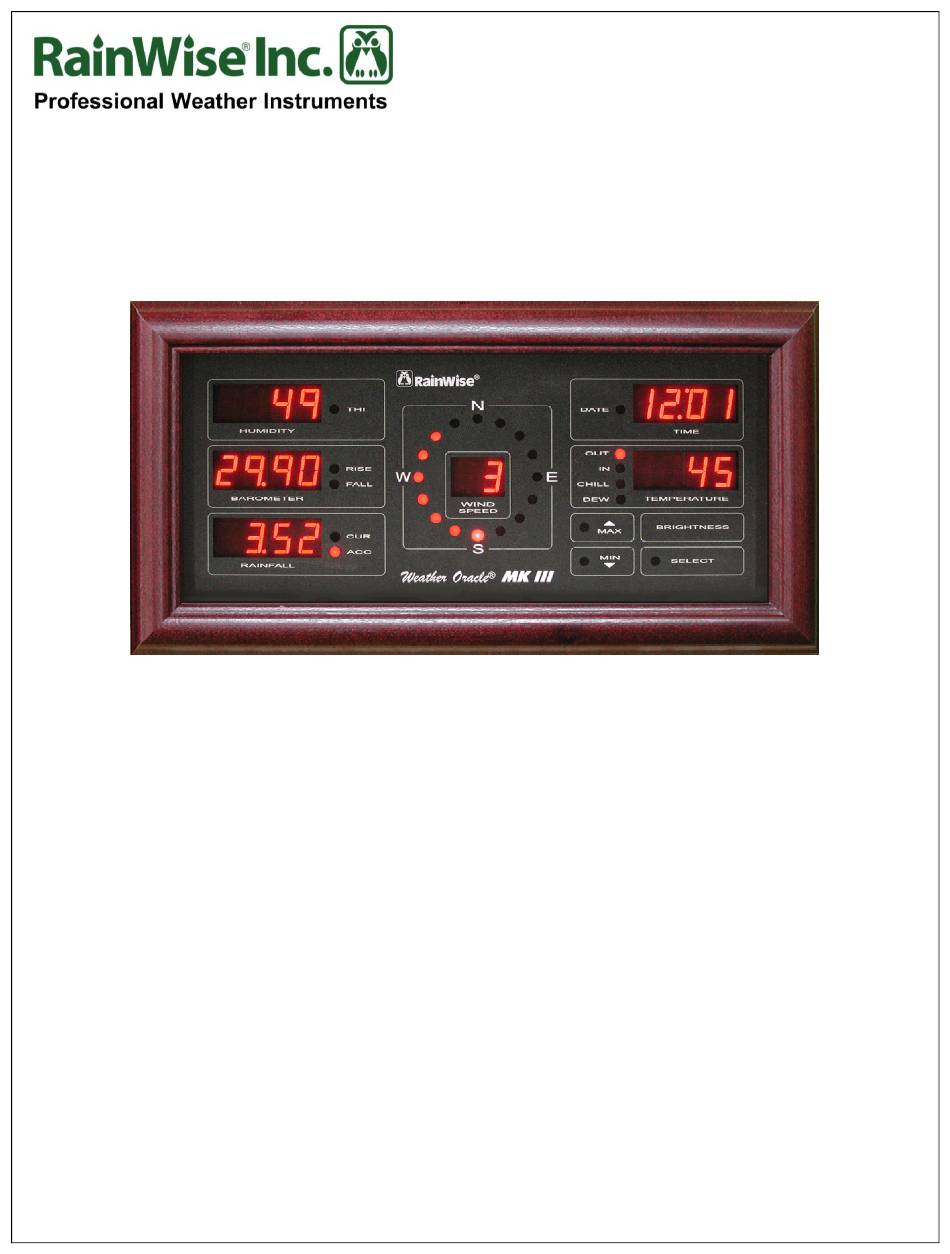

- Page 1 Weather Oracle™ MKIII & MKIII-LR User’s Guide Rev Date: 7/08/14...
- Page 2 All rights reserved. No part of this work may be reproduced in any form except by written permission of the publisher. All rights of translation are reserved. RainWise Multi Display Weather Oracle is a trademark of RainWise, Inc. RainWise Multi Display Users Guide...
-
Page 3: Table Of Contents
Turning Displays On and Off ..................13 3.3) Displaying Minimums and Maximums ................13 3.4) Resetting Minimums and Maximums ................13 3.5) Resetting Rainfall ......................14 3.6) Presetting Rainfall Counts ....................14 3.7) Locking the Display ....................... 14 RainWise Multi Display Users Guide 2014 Revision... - Page 4 3.71) Lock Display ......................14 3.72) Unlock Display ....................... 15 Diagnostic Mode ....................... 15 4.1) Factory Reset ........................16 Product Support ....................... 16 5.1) Contact Information ....................... 17 5.2) Warranty ......................... 17 RainWise Multi Display Users Guide 2014 Revision...
-
Page 5: Getting Started
Should you wish to extend this cable, please contact our service department. The Unit will be damaged if the wrong cable is used. Back of Display Oracle Radio Transmitter Telephone Cable Power Source RainWise Multi Display Users Guide 2014 Revision... -
Page 6: Battery Backup
This ensures that you will not miss any new data during the outage. The batteries last approximately 20 hours when direct power is out. For extended outages, remove the batteries from the unit. NEVER LEAVE DISCHARGED BATTERIES IN THE UNIT, THEY MAY LEAK. RainWise Multi Display Users Guide 2014 Revision... -
Page 7: Mounting Your Display
To compensate for this refer to Section 2.5. After locating your display, ensure the radio transmitter is sitting upright with the antenna vertical as shown in Section 1.1 for optimum reception. RainWise Multi Display Users Guide 2014 Revision... -
Page 8: Quick Reference Guide
In This Manual: Lock display = Important • MAX – SELECT – HUMIDITY • Press HUMIDITY button to toggle to “Loc”. • SELECT twice when done. Unlock display • HUMIDITY and BAROMETER together. RainWise Multi Display Users Guide 2014 Revision... -
Page 9: Setup Mode
• The month will flash. Set the month in the same way. • Press SELECT when done. • The day will flash. Set the day in the same way. • Press SELECT when done. RainWise Multi Display Users Guide 2014 Revision... -
Page 10: Parameter Units
• Press SELECT when done. • You can preset both rainfall counters by adjusting the value up and down using the MIN and MAX buttons. Press SELECT after each adjustment to save the preset value. RainWise Multi Display Users Guide 2014 Revision... -
Page 11: Barometer
• Humidity/THI • Rainfall To start a window to toggle: Press SELECT then the button below the window you wish to scroll. To stop a window scrolling, press the button below the window. RainWise Multi Display Users Guide 2014 Revision... -
Page 12: Fine Tuning Temperatures
• To enable the designator press the MAX button “ch 1”. To clear the designator press the MIN button “ch 0”. • Press SELECT when done. • Press SELECT again to exit the setup mode. RainWise Multi Display Users Guide 2014 Revision... -
Page 13: Operating The Display
Minimum values are displayed in the same manner as the maximums. Maximums and Minimums can be reset by pressing SELECT while a max or min is being displayed. The new value will flash to indicate that it has been reset. RainWise Multi Display Users Guide 2014 Revision... -
Page 14: Resetting Rainfall
• Press HUMIDITY. • The display will show either “run” or “Loc”. • Toggle this selection by pressing HUMIDITY. • When “Loc” is displayed press SELECT. • Press SELECT again to exit the setup mode. RainWise Multi Display Users Guide 2014 Revision... -
Page 15: Unlock Display
• WIND SPEED – for communication diagnostics. The value increments with every data byte received. The number wraps at 100. The byte count as well as the packet counters can be reset by pressing the wind speed button. RainWise Multi Display Users Guide 2014 Revision... -
Page 16: Factory Reset
RainWise Service Department. Product Support Product support can be found at Rainwise.com at the bottom of your products web page. Documents are available here along with frequently asked questions. If your support inquiry is not resolved by troubleshooting or our product support, you may wish to contact RainWise. -
Page 17: Contact Information
RainWise, Inc. will not reimburse for take-down or installation charges. RainWise, Inc. will not pay for warranty service performed by a non-authorized repair service and will not reimburse the consumer for damage resulting from warranty service performed by a non-authorized repair service.
