Inswing and Outswing Locking Handle
Service Instructions-Retrofit
ABSTRACT: This instruction is intended to show qualified service personnel how to install a new locking handle
(with thumb turn) on an existing secondary panel on an Infinity or Elevate Inswing or Outswing Door.
W A R N I N G !
Drilling, sawing, sanding or machining wood products generates wood dust, a substance known to the State of Cal-
ifornia to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection.
W A R N I N G !
Always practice safety! Wear the appropriate eye, ear and hand protection, especially when working with power
tools.
NOTE: Numbers listed in parentheses () are metric equivalents in millimeters rounded to the nearest whole number.

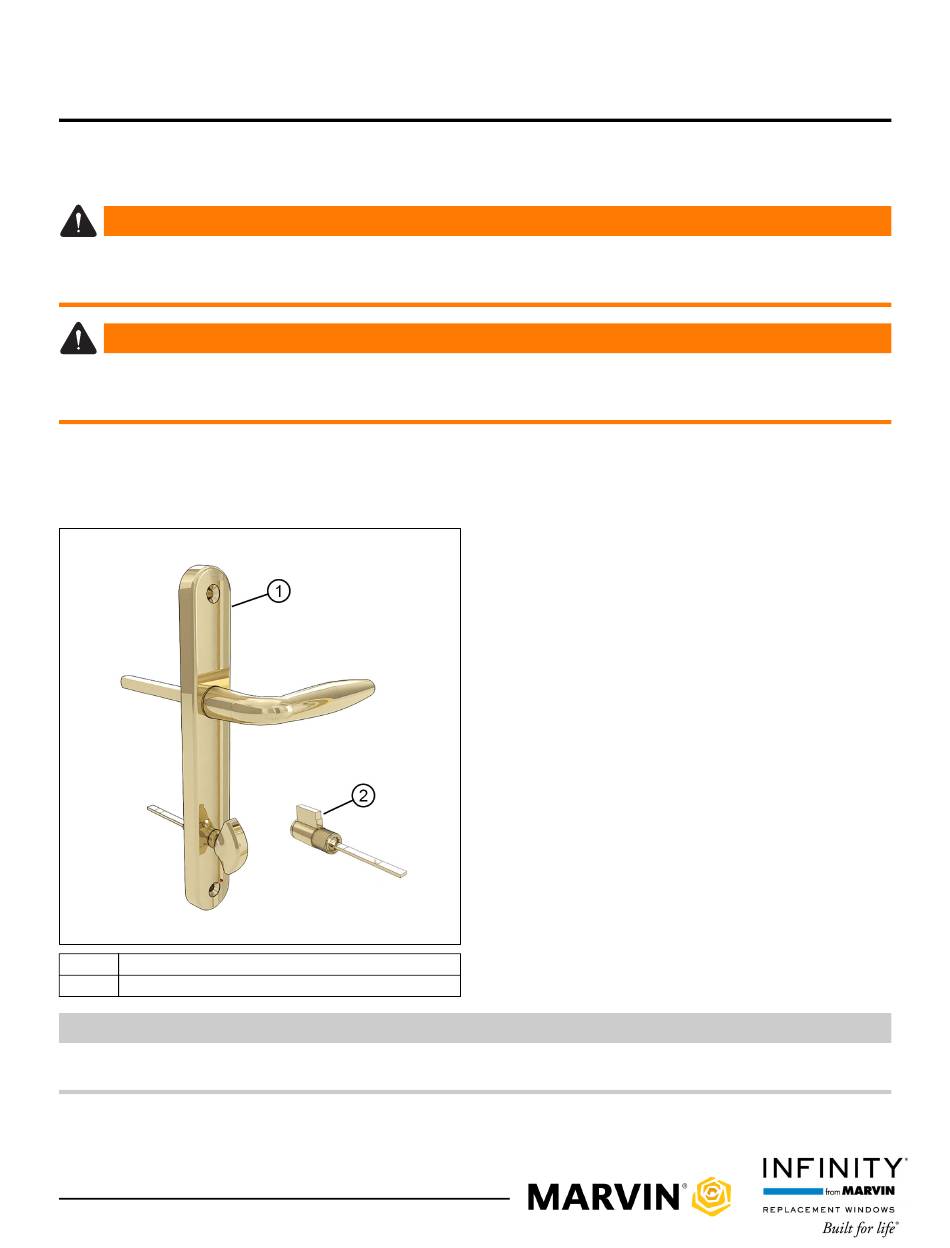

Parts Needed
1
Interior locking handle with thumb turn
2
Keyed cylinder
I M P O R T A N T
The template in the back of this instruction must be printed at a 1:1 scale (no scaling).
2019-07-29
19915821
You Will Need to Supply
• Drill
• 1/8" drill bit
• 7/8" drill bit
• Drill bit stop collar
• Tape
• Hacksaw or rotary tool with cutting head
• Safety glasses
• Pencil
Advertisement
Table of Contents
Related Manuals for Marvin INFINITY Inswing
Summary of Contents for Marvin INFINITY Inswing
- Page 1 Inswing and Outswing Locking Handle Service Instructions-Retrofit ABSTRACT: This instruction is intended to show qualified service personnel how to install a new locking handle (with thumb turn) on an existing secondary panel on an Infinity or Elevate Inswing or Outswing Door. W A R N I N G ! Drilling, sawing, sanding or machining wood products generates wood dust, a substance known to the State of Cal- ifornia to cause cancer.
- Page 2 Installing the Handle NOTE: Before installing the handle check the door for 2. Cut out the template found at the end of this proper panel alignment and operation. If adjustments instruction. Align the template with the handle screw are required refer to the installation instructions for your holes and key cylinder hole on the interior of the panel door.
- Page 3 4. Drill a 1/8" pilot hole 3/4" deep on the mark. See 6. Remove the tail-piece by depressing the small silver Figure 3. pin and unscrew the cap. See Figure 5. Figure 3 Figure 5 1/8" drill bit with stop collar Press pin and rotate cap to release the tailpiece 5.
- Page 4 8. Insert the trimmed tail-piece into the turn lock on the 9. Reinstall the multi-point lock on the panel. See interior handle. Apply a small amount of silicone to hold Figure 9. the tail-piece in place. See Figure 7 and Figure 8. Figure 9 Figure 7 Multipoint lock...
- Page 5 Template I M P O R T A N T Print the template at a 1:1 scale (no scaling) 2019-07-29 Inswing and Outswing Locking Handle 19915821 Service Instructions-Retrofit...
