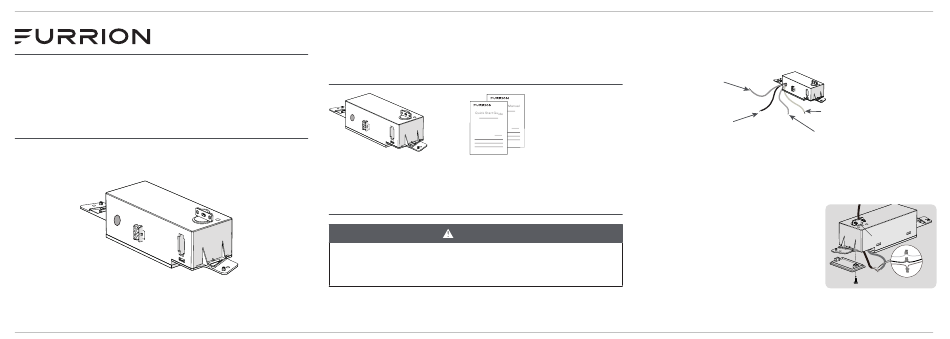

SINGLE ZONE CONTROLLER
MODEL: FACC10SA-BL
FACC10ESSA-BL
QUICK START GUIDE
This quick start guide will help you install and use the device properly.
For further support please visit www.furrion.com/support.
WHAT'S IN THE BOX
Control Box x 1
NOTE: Product design and packaging may change without notice.
INSTALLATION
WARNING
Risk of Electric Shock
Always verify that the electrical power to the circuit has been
disconnected before performing the installation procedures.
Wire Connection

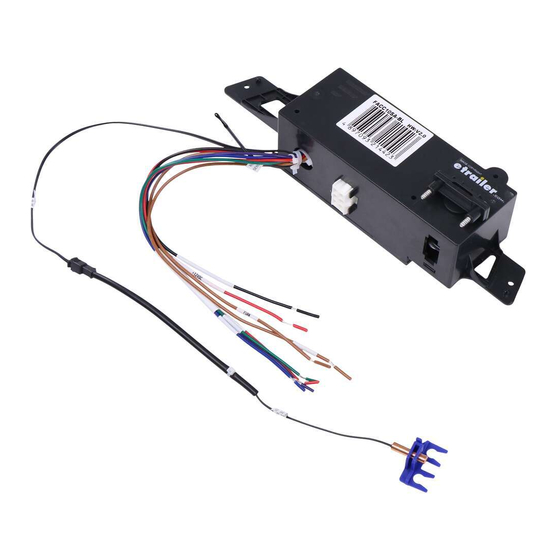

Familiarize yourself with the controller and wire harnesses.
Furnace Cable (2-wire)
Wall Thermostat Cable
QSG x 1
(4-wire harness)
Warranty Manual x 1
1. Loosen the cable clamp on top of the control box and remove the
compartment cover. Pass the 115VAC power cord through the cable
clamp hole and make wire connections following the below color
codes:
– Black - Hot
– White - Neutral
– Green/yellow - Ground
2. Fit all cables into the cable
compartment and tuck any excess
wires up out of the way. Re-tighten
the cable clamp, do not over tighten.
Replace the cover.
Freeze Sensor Cable (wire with
copper tip and blue plastic clip)
12V DC Power Cable (2-wire)
Cable Clamp
