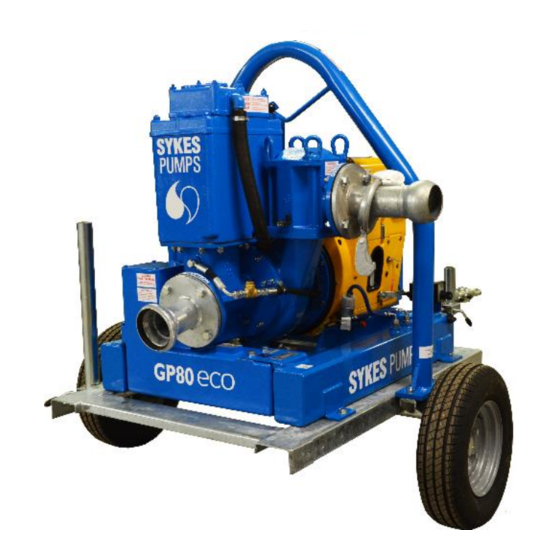

andrews Sykes Pumps GP80 eco Instruction Leaflet

Service and Maintenance

1. Daily Check fuel level and top up as needed and when you start the unit.
2. Daily Check vacuum pump oil level and top up if needed and when you start the unit.
3. Daily Check Engine oil level and top up if needed and when you start the unit. ( Oil
required Multigrade 15W-40)
4.
Check daily Tyres are correctly inflated, check sidewalls for damage, tread for wear,
wheel nuts are secure.
CAUTION!

When checking or toping up fuel or oil please make sure the engine is off and
not running. Use an appropriate fuel dispenser. Do not smoke!

Use only clean, fresh, low sulphur commercial-grade diesel fuel.

Do not overfill fuel tank, leave room for fuel to expand. Clean up any spillage
that occurs during refuelling.

Pumps must be drained after use to avoid frost damage

Repairs must only be carried out by a competent person, if in any doubt please
contact your local Andrews Sykes Depot.
CAUTION!
General Safety

Always assess the risk before use. Appropriate PPE must be worn.

This equipment should only be used by a competent person.

Follow operation and maintenance instructions.

Ensure safe and correct positioning of equipment prior to use.

Moving parts are guarded to protect you or others. Guards removed for
maintenance must be replaced before starting the pump.

Never operate this equipment if you are ill or under the influence of alcohol
or drugs.

Ensure that the equipment is inspected & serviced at appropriate intervals.

All lifting attachments or equipment are checked prior to use for suitability /
rating and replaced if found damaged or faulty. Do not use if faulty.

Lifting must always be vertical and never subjected to snatch loadings. Always
use the lifting points provided. Do not allow the unit to swing whilst being
lifted.

Never insert your hand or any other object into the pump casing/inlets unless

General Operation

you are sure the pump has been switched off, preferably lock it off and retain
key or remove and keep starter key.

If pumps and or hoses are to be used for contaminated, noxious or corrosive
liquids then it is the duty of the hirer to notify Andrews Sykes of the specific
nature of the material. After use both pumps and or hoses should be flushed
with clean water.

Operating, Maintenance and Safety

Instruction leaflet
For Further Information Visit www.sykes-pumps.com
contact your local Andrews Sykes Depot on 0800 211611
eco
GP80
Important
It is the user's responsibility to ensure that the information contained
within this leaflet is read and fully understood before any attempt is
made to use the equipment
SY2994268
