Summary of Contents for AquaCal AutoPilot ST-100-12

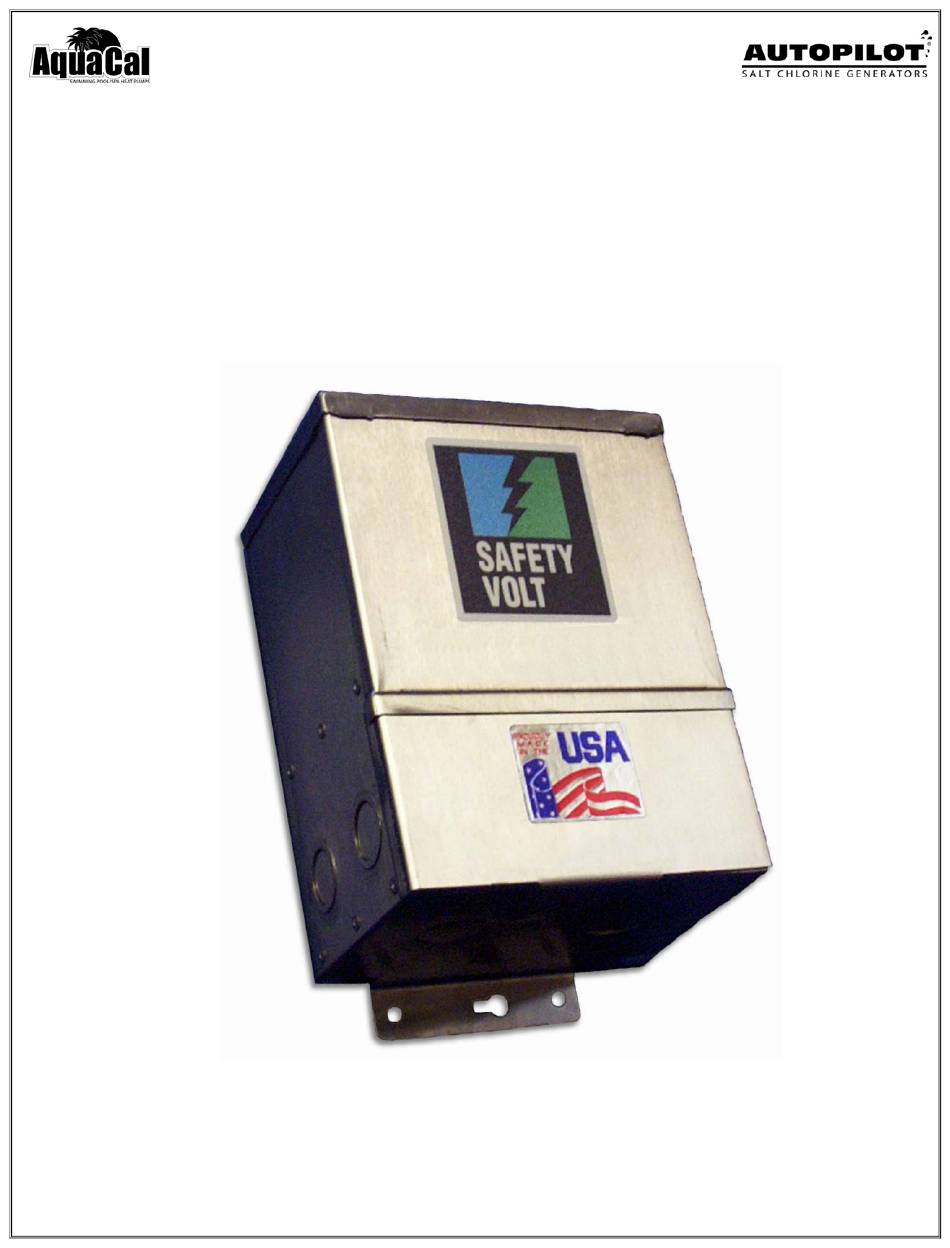

- Page 1 Safety Volt Transformer Installation Guide IMPORTANT! Read This Guide Before Installing or Operating Your Equipment Installer: This document is Purchaser’s property and is to remain with the Equipment Owner LTP0069 Rev 2...
- Page 2 SECTION 1 - GENERAL INFORMATION 1.1 Contacting AquaCal AutoPilot If you should need to call AquaCal AutoPilot for www.AquaCal.com questions, service, or parts, please have your Phone (727) 823-5642 8-5 pm, Eastern, M-F model and date code available. This is located on the dataplate(s) on the side of the transformer.
- Page 3 SECTION 2 - INSTALLATION 2.1 Agency Approvals AGENCY DESCRIPTION A representative sample of the listed devices have been tested, investigated and Intertek found to comply with the requirements of the Standard(s) for Specialty Transformers (UL-506) and are identified with the ETL Listed Mark. Figure 2 2.2 Mounting Instructions The Safety Volt Transformer is designed as an above-ground, surface-mounted device.
- Page 4 2.3.b Outgoing Voltage 1) Determine the following for each load: a. Power consumption (in Watts). Please note - Total load must not exceed maximum capacity of the unit. See section entitled “Specifications” for your model’s maximum wattage. If your unit is a single tap model, please go to step three in this section.
- Page 5 SECTION 3 - TROUBLESHOOTING 3.1 Symptom / Resolution Chart SYMPTOM TO RULE OUT RESOLUTION Lights cycle off / on every 10 to 20 Measure the amperage in the low-voltage side of the minutes transformer to determine if exceeding transformer power Circuit Overload rating.
- Page 6 SECTION 4 - FREQUENTLY ASKED QUESTIONS A meter is used and shows continuity through the wiring. Does this mean the filament on the lamp is good? No. Continuity can also come from shorted wires, cracked insulation, water or moisture in the line. The only way to truly check the filament in a lamp is to remove it and check between the center post and the sidewall of the base.
- Page 7 (60) from the date of manufacture (as verified by factory production records). AquaCal AutoPilot, Inc. (hereafter referred to as: “Manufacturer”) warrants the following models (hereafter referred to as: "product"), to the original owner and installation site, to be free of material or workmanship defects for a limited term.
