JWA 70622 Assembly Instruction Manual

Kythira single monitor arm with led lights
Hide thumbs

Advertisement

Table of Contents

KYTHIRA SINGLE MONITOR ARM WITH LED LIGHTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 70622 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JWA 70622

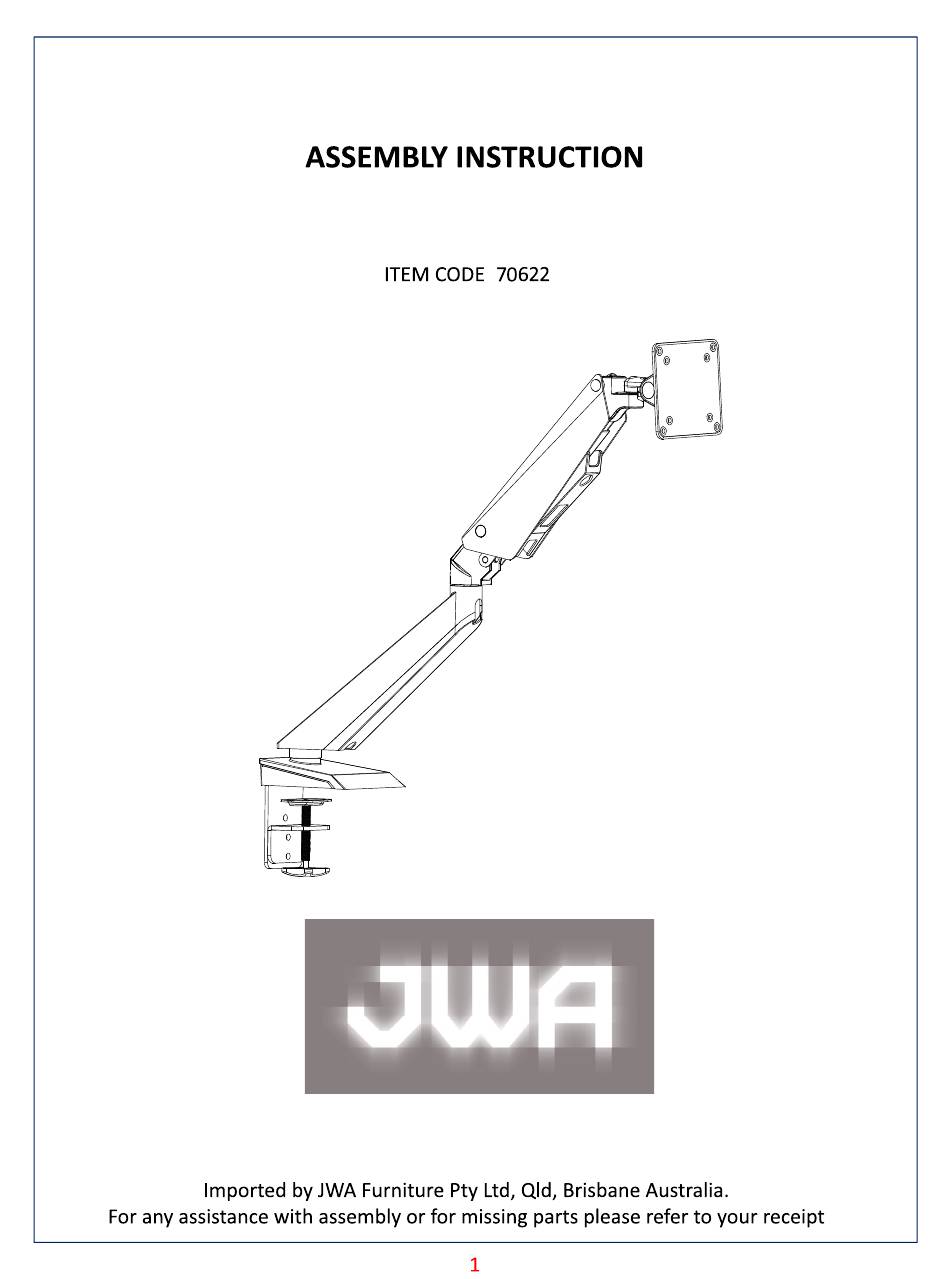

  • Page 1 KYTHIRA SINGLE MONITOR ARM WITH LED LIGHTS...
  • Page 3 TOOLS REQUIRED NOT INCLUDED PARTS INCLUDED M4x12 (x4) M4x30 (x4) 12X5.8X16 (x4) S=3mm (x1) S=5mm (x1) M4x10 (x1) (x1)
  • Page 4 Desk Measure the thickness of the table If 15-60 mm, install directly. Desk Loosen clamp screw until enough space is left for the edge of the desk. Tighten clamp using clamp screw until mount is securely fastened to desk. Adjust the Desk Clamp holes if Desk Desktop is thicker than 60 mm.
  • Page 5 S=3mm S=3mm Desk Desk Install the arm to the base and fasten the screw in the back. M4x30 M4x12 For Curved Monitors For Flat Screen Monitors 12X5.8X16 Recessed surface installation: Put 4 spacers between Flush surface installation: Install 4 screws through faceplate and monitor.
  • Page 6 M4x10 Desk Insert the monitor along with the VESA plate to the arm and lock it. S=5mm NOTE: Increase the tension in "+" direction if the arm automatically sags, S=5mm decrease the tension in "-" direction if the arm automatically rises. Desk Use a hex wrench to adjust the height tension of the gas spring arm, to keep different weight of monitors still at any position.
  • Page 7 Tilt S=5mm S=5mm Swivel S=5mm Desk Use a hex wrench to adjust the damp for swiveling and tilt. Turn counter-clockwise to reduce damping and clockwise to increase damping. Loosen Desk Remove the cable cover from extension arm. Route the cables along the arms and put on the cable cover.
  • Page 8 Desk Use USB cable for LED backlight embellishment. Product Care for Easy to Clean Material Items To protect your furniture, we suggest the following: Avoid placing your furniture in direct sunlight. Do not place furniture directly under windows. Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
