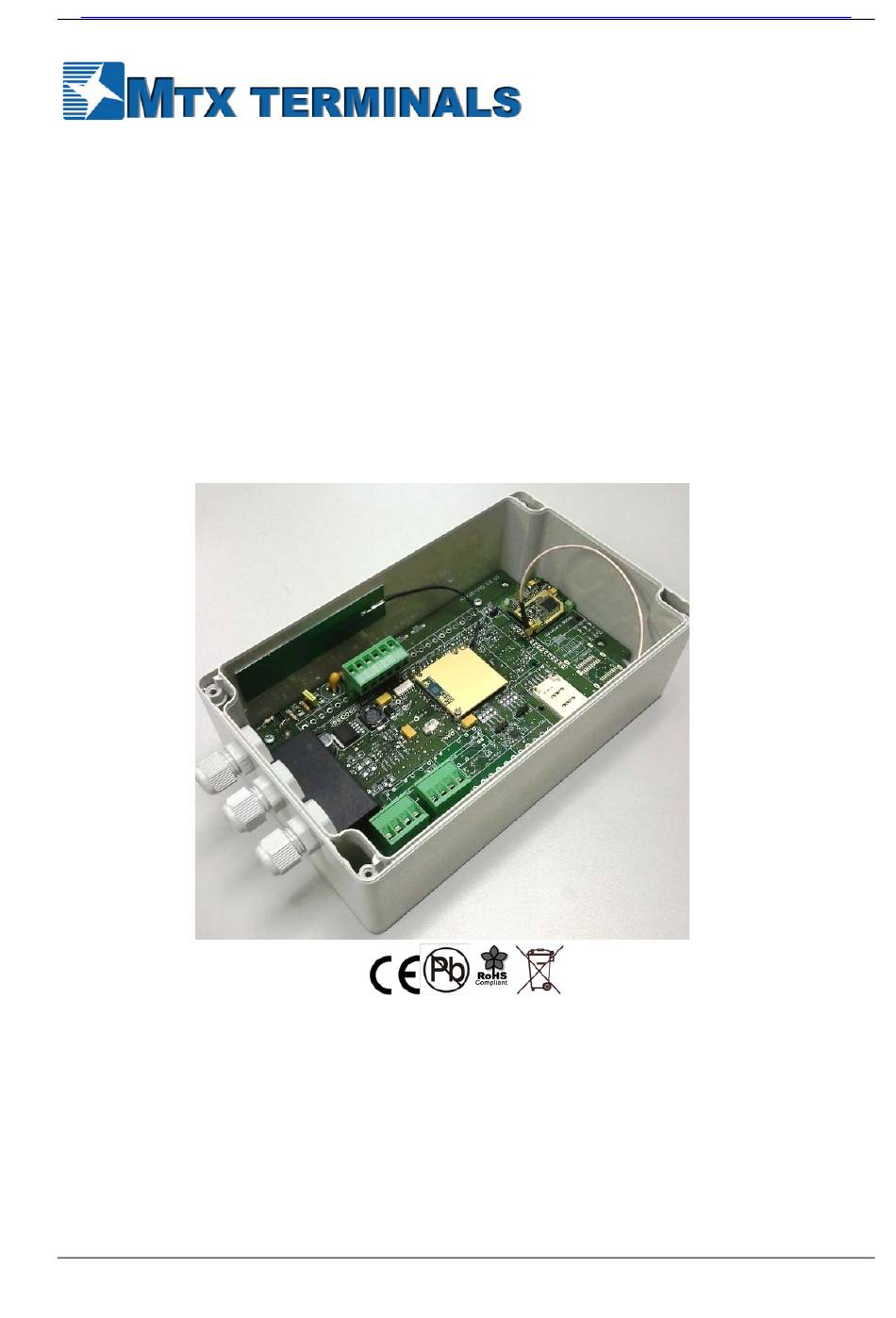

- Page 1 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es MTX-IND-V2 INDUSTRIAL FEATURED IP65 JAVA GSM/GPRS TERMINAL User Manual Powered by CINTERION WM TC65i GSM-GPRS Wireless Module MTX-IND-V2 User Manual V.1.1 Page. 1 Subject to change without prior notice...
- Page 2 Spanish law without reference to any other substantive law. Important information This technical description contains important information for start up and use of the MTX-IND-V2 Terminal. Read it carefully before you start working with the MTX-IND-V2 Terminal. The warranty will be void should damage occur due to non-compliance with these instructions for use.
-
Page 3: Table Of Contents
Cinterion TC65i-X release 02 can be inside upon request.1.3 Highlights ..........6 1.3 Highlights ............................ 7 1.4 MTX-IND-V2 Wireless modems in a Communication System ............9 1.4 Main Features and Services ......................9 1.4.1 Types of Mobile Station ........................... 9 ... - Page 4 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 8.1. POWER SUPPLY ................. ¡Error! Marcador no definido. 8.1.2 DC cable ......................¡Error! Marcador no definido. 8.2. ANTENNAS ................¡Error! Marcador no definido. 8.2.1 Magnetic Dual Band Antenna (900/1800MHz) ..........¡Error! Marcador no definido.
-
Page 5: Introduction
2 configurable TTL/CMOS input/output GPIOs and 2 optoisolated differential inputs/outputs. With quad band 900/1800 MHz and 850/1900 MHz, your applications can be used all over the world. The MTX-IND-V2 is RoHs, WEEE, FCC and CE compliant. It is manufactured with the ISO 9001 & IS0 14001 Quality certifications. -
Page 6: Ordering Information
MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 1.2. ORDERING INFORMATION 1650 Order RS232/ RF module Ethernet Relay mA/h MODEL In/Out NOTE number RS485 Wavecard / Wi-Fi Battery 2 opto IO MTX-IND V2.0 199801127 4 opto IN 2 Analog IN 2 opto IO... -
Page 7: Highlights
MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 1.3 Highlights Interfaces • SMA-F 50 Ohm antenna connector. Can accommodate internal 4/5 bands antenna. Internal Mini USB (2.0 Full-Speed End-Point Compliant) • Status LEDs • SIM card interface 3V, 1.8V with SIM detection •... - Page 8 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es CSD data transmission • Up to 14.4 Kbit/s • V.110 • Non-transparent mode • USSD support Specification for fax Group 3, class 1, 2 Voice Features (upon request) • Triple-rate codec for HR, FR, and EFR •...
-
Page 9: Mtx-Ind-V2 Wireless Modems In A Communication System
Figure 2. Main Blocks in a Wireless System (embedded application) 1.4 Main Features and Services The MTX-IND-V2 performs a set of telecom services (TS) according to GSM standard phase 2+, ETSI and ITU-T. The services and functions of the MTX-IND-V2 are implemented by issuing customized applications embedded on the device, by AT commands issued internally or over the RS232 serial interface. -
Page 10: Short Message Service
(up link). See section 1.4.5 for multi-slot allocation by class. • CSD (Circuit Switched Data) The MTX-IND-V2 wireless modem is capable of establishing a CSD communication at 9.6 kbps over the air. MTX-IND-V2 User Manual V.1.1 Page. -
Page 11: Gprs Multi-Slot Support
MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 1.4.4 GPRS Multi-Slot Support GSM Multi-slot classes supported by MTX-IND-V2 Maximum slot allocation Multi-slot Allowable Max data rate Class Configuration Downlink Uplink Active 8-12Kbps Send 1 up; 4 down 32-48Kbps Receive 8-12Kbps Send 1 up;... - Page 12 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es Average power consumption Parameter Description Conditions Unit VPOWER Operating Voltage 47 – 440 Hz IPOWER Low Power mode Average supply current (average time 3 min.) @25°C @ worst case: GSM 900 max power...
-
Page 13: Sim Card
MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 1.4.7 SIM Card The MTX-IND-V2 supports the SIM card through the integrated SIM holder. Both 3V and 1.8V SIM technology is supported. Older 5V SIM technology is not supported. 2. MECHANICAL DESCRIPTION 2.1. Dimensions Housing Plastic Dimension in mm. - Page 14 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es HOUSING BOPLA ET 221 Euromas II Product no. 63221000 Width 120 mm Height 77 mm Length 200 mm Material 1 ABS (acrylonitrile-butadiene-styrene) (Kunststoff) Sealing material 2 Neoprene (Kunststoff) Colour light grey IP65. IP67 Under request...
-
Page 15: Electrical Description
MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 3. ELECTRICAL DESCRIPTION Block TC65i terminal Default feature Additional feature Connection Other feature Power in 90-264VAC Power in 90-264VAC V IN 9-30VDC +24V V OUT RL1 com GPIO1 RL1 na RL1 nc RL2 com... -
Page 16: Power
Electrostatic Discharge (ESD). 3.1 Power Pin 1 and 2 are used to power the MTX-IND-V2. It can be VDC or VAC powered without needing to configure anything. Just apply the VCC or VAC voltage. The supply voltage, VCC or VAC required by the modem is in the range 120-370 VDC and 90-264 VAC. The power supply has to be a single voltage source capable of providing a peak during an active transmission. -
Page 17: Relay Contacts
Minimum Switching Load 100 mA 5 VDC 3.3 Mini USB Connector The MTX-IND-V2 supports a USB 2.0 Full Speed (12Mbit/s) device interface. The USB interface is primarily intended for use as a command and data interface and for downloading firmware. The USB I/O pins are capable of driving the signal at min 3.0V. -
Page 18: Antenna Connector
(given on request). When the external antenna is screwed, the internal one is disconnected. 3.5. SIM card reader The MTX-IND-V2 Terminal is fitted with a SIM card reader designed for 1.8V and 3V SIM cards. MTX-IND-V2 User Manual V.1.1 Page. 18... -
Page 19: Main Serial Interface Port Asc0
SIM card it is necessary to restart MTX-IND-V2 Terminal. The full operation of the MTX-IND-V2 relies on a SIM card being inserted. Some MTX-IND-V2 functionality may be lost if you try to operate the control terminal without a SIM card. - Page 20 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es Internal JUMPER CONFIGURATION Location for JPC1 & JPC3 MTX-IND-V2 User Manual V.1.1 Page. 20 Subject to change without prior notice...
- Page 21 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es RS-232 (By default) ----------------------- JPC1 -> JP 1-2 Open -> JP 3-4 Open -> JP 5-6 Close -> JP 7-8 Close JPC3 -> JP 1-2 Open RS-485. open bus (2 Wires) --------------------- JPC1 ->...
- Page 22 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es RS232 Interface MTX-IND-V2 Terminal is designed for use as a DCE (data circuit-terminating equipment). Based on the conventions for DCE-DTE connections, it communicates with the customer application (DTE- data terminating equipment) using the following signals: •...
-
Page 23: Secondary Serial Interface Asc1
MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 3.7. SECONDARY SERIAL INTERFACE ASC1 The MTX-IND-V2 includes the second serial interface ASC1 which can be configured RS232, RS485 or RS422 via following block pins, shown below: The modem supports by default a RS485 serial interface. - Page 24 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es ASC1 RS232 The ASC1 interface is available as a 2-wire unbalanced, asynchronous modem interface ASC1 conforming to ITU-T V.24 protocol DCE signaling. Pin Name Direction Function Ground VILmax = 0.6V Transmitted data VIHmin = 2.4V VImax = ±25V...
- Page 25 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es RS-232 JPC2 -> JP 1-2 Open -> JP 3-4 Open -> JP 5-6 Close -> JP 7-8 Close JPC4 -> JP 1-2 Open RS-485 open bus JPC2 -> JP 1-2 Open (No Res) ->...
-
Page 26: General Purpose Io
MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 3.7.4. General Purpose IO Terminal block 17, 18 INPUT/OUTPUT IO5 Terminal Block 17 = IO5+ Terminal Block 18 = IO5- Optoisolated. This I/O can be configured by JUMPERS as an input or differential output If Output is configured, open collector type: IO5+ >Optoisolated Open collector... - Page 27 Switches configuration The MTX-IND-V2 Terminal provides a flexible general purpose GPIO pins at the terminal block. The signal direction input/output are defined in the MTX-IND-V2 due to their internal opto-isolated components. Be sure to configure the type of GPIO lines either with AT commands or Java code.
-
Page 28: Analog-To-Digital Converter (Adc)
If you do, do not exceed 12V. 3.7.5. Analog-to-Digital Converter (ADC The MTX-IND-V2 has 2 Analog to Digital converters that can be configured to connect to measure voltages and also to connect current sensors. They can be configured with internal JUMPERs. -
Page 29: Real Time Clock
(ts~400μs). 3.7.6 Real Time Clock The TC65i module inside of the MTX-IND-V2 contains a real time clock (RTC) to maintain accurate timekeeping and to enable “time stamping” of messages. This is not used, if you need the internal TC65i RTC contact gsmsupport@matrix.es... -
Page 30: Operation
4. OPERATION 4.1 Switching On the Modem The first time power is supplied to the MTX-IND-V2 terminal (pin 1 & pin 2 terminal block connector), it will switch on. The modem is fully operational after 4 seconds. Logging onto a network may take longer than this and is out of the modem’s control. -
Page 31: Battery Operation
<n> = value from 471 ms to 2118 ms <m> = 3000 ms 4.4. BATTERY OPERATION MTX-IND-V2 can be ordered with an internal Ion-Li battery. It is 3.7V 1600mA/h and ensures that GSM module can operate for about 2 hours (periodical GPRS transmission). MTX-IND-V2 User Manual V.1.1 Page. - Page 32 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es Battery is charged when main power supply is applied. The battery should be disconnected when shipped from factory. Connect it to JPh1 connector. The 2 signaling LEDS will operate as follows: DL1 GREEN will be ON when mains power is applied and it will be OFF when the battery is operating (main power disconnected).
-
Page 33: Embedded Applications
5. EMBEDDED APPLICATIONS. The MTX-IND-V2 can embed an internal application written in popular JAVA language. Java technology and several peripheral interfaces on the module allow you to easily integrate your application. This way, the customer application can be reduced because all the resources: Microcontroller, Flash & RAM memory, all kind of I/Os and bus peripheral is allowed to be used by the customer. -
Page 34: Safety And Product Care
6.2. General precautions The MTX-IND-V2 Terminal as a standalone item is designed for indoor use only. For outdoor use it must be integrated into a weatherproof enclosure. Do not exceed the environmental and electrical limits as specified in “Technical Data”. -
Page 35: Antenna Precautions
>20cm from the body. In all other configurations the integrator is responsible for meeting the local SAR regulations. Users of the MTX-IND-V2 wireless modem device are responsible for ensuring that they meet the SAR regulatory requirements of the countries in which they intend to operate the device and that their documentation contains the relevant SAR declaration, certification information and user guidance as appropriate. -
Page 36: Installation Of The Modem
MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 7. INSTALLATION OF THE MODEM This chapter gives you advice and helpful hints on how to integrate the MTX-IND-V2 Terminal into your application from a hardware perspective. 7.1 Where to install the modem There are several conditions which need to be taken into consideration when designing your application as they might affect the modem and its function. -
Page 37: Securing The Modem
MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 7.2.2 Securing the modem Before securing the modem take into account the amount of additional space required for the mating connectors and cables that will be used in the application. • Where access is restricted, it may be easier to connect all the cables to the modem prior to securing it in the application. -
Page 38: Possible Communications Disturbances
MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 7.3.5 Possible communications disturbances Possible communication disturbances include the following: Noise can be caused by electronic devices and radio transmitters. Path-loss occurs as the strength of the received signal steadily decreases in proportion to the distance from the transmitter. - Page 39 Alejandro Sanchez 109 28019 Madrid Spain We declare under our sole responsibility that the products MTX-IND-V2 Terminal V1.0, containing Cellular Engine Cinterion WM engine TC65i, to which this declaration relates are in conformity with the following standards and/or directives: DIRECTIVES...
- Page 40 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es FCC COMPLIANT AND SAR INFORMATION MTX-IND-V2 complaints with FCC regulations. Equipment class: PCS Licensed Transmitter Notes: Quad band GSM/GPRS Modem MTX-IND-V2 Contains FCC ID: QIPTC65 Cinterion Wireless Modules models: TC63, TC65, TC63i and TC65i are marketed without defined antenna.
- Page 41 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 9. ROHS STATEMENT The MTX-IND-V2 is compliant with the 2002/95/EC Directive of the European Parliament and of the Council of 27th January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS).
- Page 42 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 11. ABBREVIATIONS Abbreviation Explanations Cell Broadcast Message Cell Broadcast Service Circuit Switched Data Data Circuit Terminating Equipment Data Terminal Equipment DTMF Dual Tone Multi Frequency Enhanced Full Rate Electro-Magnetic Compatibility ETSI European Telecommunication Standards Institute...
- Page 43 (TE) to the terminal adaptor (TA). The command line consists of a string of alphanumeric characters. It is sent to the MTX-IND-V2 to instruct it to perform the commands specified by the characters.
- Page 44 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es AT+CGMR Request revision identification of software status AT+CGPADDR Show PDP address AT+CGQMIN Quality of Service Profile (Minimum acceptable) AT+CGQREQ Quality of Service Profile (Requested) AT+CGREG GPRS Network Registration Status AT+CGSMS Select service for MO SMS messages...
- Page 45 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es AT+CPIN2 PIN2 Authentication AT+CPMS Preferred SMS message storage AT+CPOL Preferred Operator List AT+CPUC Price per unit and currency table AT+CPWD Change Password AT+CR Service reporting control AT+CRC Set Cellular Result Codes for incoming call indication...
- Page 46 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es AT+WS46 Select wireless network AT\Q Flow control AT\V Set CONNECT result code format AT^MONI Monitor idle mode and dedicated mode AT^MONP Monitor neighbour cells AT^SAADC Show ADC Adjustment Values AT^SACM Advice of charge and query of ACM and ACMmax...
- Page 47 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es AT^SIND Extended Indicator Control AT^SISC Internet Service Close AT^SISE Internet Service Error Report AT^SISI Internet Service Information AT^SISO Internet Service Open AT^SISR Internet Service Read Data AT^SISS Internet Service Setup Profile AT^SISW Internet Service Write Data...
- Page 48 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es AT^SPBG Display phonebook entries in alphabetical order AT^SPBS Step through the selected phonebook alphabetically AT^SPIC Display PIN counter AT^SPIO General Purpose IO Driver Open/Close AT^SPLM Read the PLMN list AT^SPLR Read entry from the preferred operators list...
- Page 49 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es Manual rejection of a network request for PDP context activation Display product identification information Set monitor speaker loudness Set monitor speaker mode Switch from command mode to data mode / PPP online mode...
- Page 50 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 13. SALES CONTACT www.mtx-terminals.com gsmsupport@matrix.es Matrix Madrid Matrix Electronica S.L.U. C/ Alejandro Sánchez, 109 28019 - Madrid Spain Tel. +34 91 5602737 Fax. +34 91 5652865 matrix@matrix.es MTX-IND-V2 User Manual V.1.1 Page. 50...
- Page 51 MTX-IND-V2 Industrial Featured GSM-GPRS terminal modem http://www.matrix.es 14. MTX-REMOTE UNITS Ordering Codes 202000391 MTX-Wavesense 4-20mA (220Vac) 1 Analog 4-20mA input Sensor 4-20mA Sensor 0-5V 202000394 MTX-WaveTherm PT100 (220Vac) For measuring temperature. . Need DALLAS probe or standard PT100 or PT1000.
