CLABER AQUA-MAGIC SYSTEM 8063
DESCRIPTION:
Aqua-Magic System an independent drip kit. Can be used to water pots and small vegetable patches
selecting the water quantity and irrigation frequency by choosing from the preset values. Through its
photovoltaic panel, it uses solar energy to power the rechargeable batteries (not included).

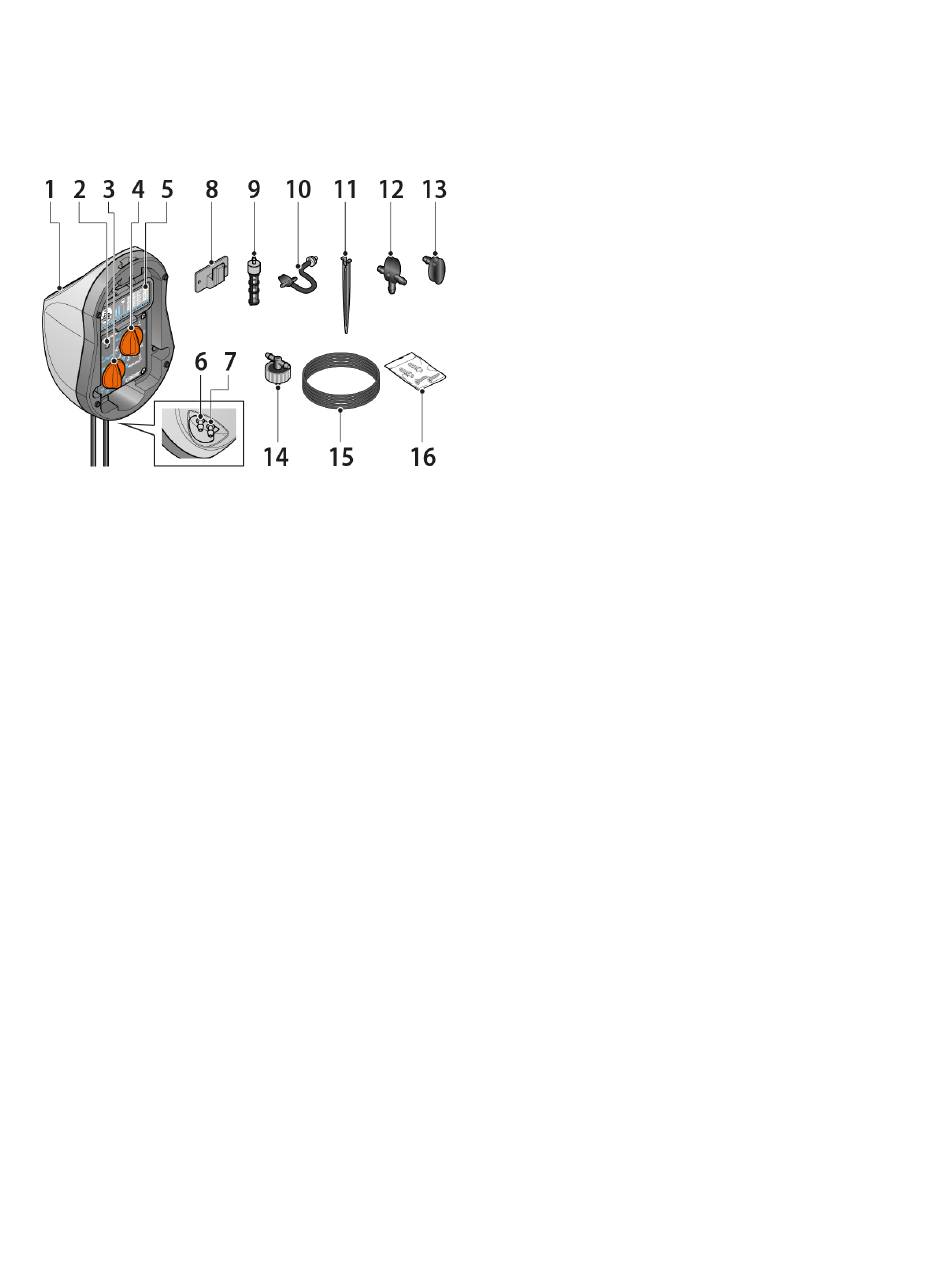

1) Photovoltaic panel
2) Operating status LED
3) Water quantity dial
4) Irrigation frequency dial
5) Battery compartment
6) Water inlet
7) Water outlet
8) Wall bracket
9) Filter
10) Anti-siphon valve
11) Stakes
12) Tee coupling
13) End-of-line plug
14) Drippers
15) Feeding tube
16) Screws and plugs
INSERTING THE BATTERIES:

Advertisement

loading
Need help?

Need help?

Do you have a question about the AQUA-MAGIC SYSTEM 8063 and is the answer not in the manual?

Questions and answers

Related Manuals for claber AQUA-MAGIC SYSTEM 8063

Summary of Contents for claber AQUA-MAGIC SYSTEM 8063

  • Page 1 CLABER AQUA-MAGIC SYSTEM 8063 DESCRIPTION: Aqua-Magic System an independent drip kit. Can be used to water pots and small vegetable patches selecting the water quantity and irrigation frequency by choosing from the preset values. Through its photovoltaic panel, it uses solar energy to power the rechargeable batteries (not included).
  • Page 2 Use only 1.2 V NiMH AA/HR6 rechargeable batteries (1800 mAh or more). Please note that rechargeable batteries tend to be almost flat when purchased. To recharge them, turn the dial to OFF and expose the timer to direct sunlight for at least 8 hours. Alternatively, use an external battery charger to charge them fully.

  • Page 3: Installation

    It should not be immersed in liquid. It should not be used by children or be easily reachable by pets. The hoses should not be pulled. In winter, the timer must be stored in a dry place where the temperature does not fall below 37°F. INSTALLATION: If the water tank is outside, position it in a shaded place.
  • Page 4 To install the water suction hose, cut a section of feeding hose, fit the filter at one end and connect the other end to the timer in the outlet marked “IN”. To make the system work properly, the hose end with the filter must touch the bottom of the water container.
  • Page 5 After positioning the timer, the hoses, anti-siphon valve, stakes, fittings, drippers and end-of-line plugs can be connected up. Important: Use between 10 and 20 drippers. The drippers are not adjustable. The gray ring nut must be fully screwed on, without being overtightened. Warning: Clean the drippers with running water or immerse in water and vinegar.
  • Page 6 2) programming not complete 3) “FREQUENCY” selector dial set to “OFF” 4) “FREQUENCY” selector dial set to manual when manual watering has finished. PROGRAMMING: How much to water (quantity per day per dripper in ml). At the time you want the watering to start, set the water QUANTITY to be dispensed per day for each dripper by turning the “DRIPPER”...

  • Page 7: Setting Changes

    When to water (at what time). At the time you want irrigation to start (e.g. 10 pm), insert the batteries and turn the FREQUENCY dial. The first irrigation cycle will start straight away. The subsequent cycles will start according to the program selected (e.g. 2 days). SETTING CHANGES: Changing start time and/or frequency of watering cycles.

  • Page 8: Manual Watering

    Wait for the new time at which you want watering to begin (for example 20:00). Set the “FREQUENCY” selector dial to the frequency required. After resetting, watering will begin immediately for the set water quantity: the next watering cycles will begin after the number of days set using the “FREQUENCY” selector dial.
  • Page 9 Turn the FREQUENCY dial to manual 100 ml. The LED flashes during manual watering. The run time of a manual irrigation session cannot be increased, but its end can be brought forward in two ways: turn the “FREQUENCY” selector dial to the start position (e.g. 1 day). The previous programming is stored, therefore the watering cycles will start at the normal times.

  • Page 10: Unlocking The Pump

    Early stop: Turn the “FREQUENCY” selector dial to a new frequency (e.g. 2 days). The previous setting is NOT stored. An irrigation cycle will start straight away. The subsequent cycles will start according to the new time and frequency selected. If the “FREQUENCY”...
  • Page 11 Cut a length of 5 cm of the feeding tube supplied and insert it on the “IN” water inlet. This is to help with the next step. Insert a syringe without a needle filled with water into the tube and squirt the water inside. If necessary, repeat it multiple times, even the following day, (you should see water coming out of the “OUT”...
  • Page 12 Turn the timer to OFF.
