Summary of Contents for AMP mPCI-4

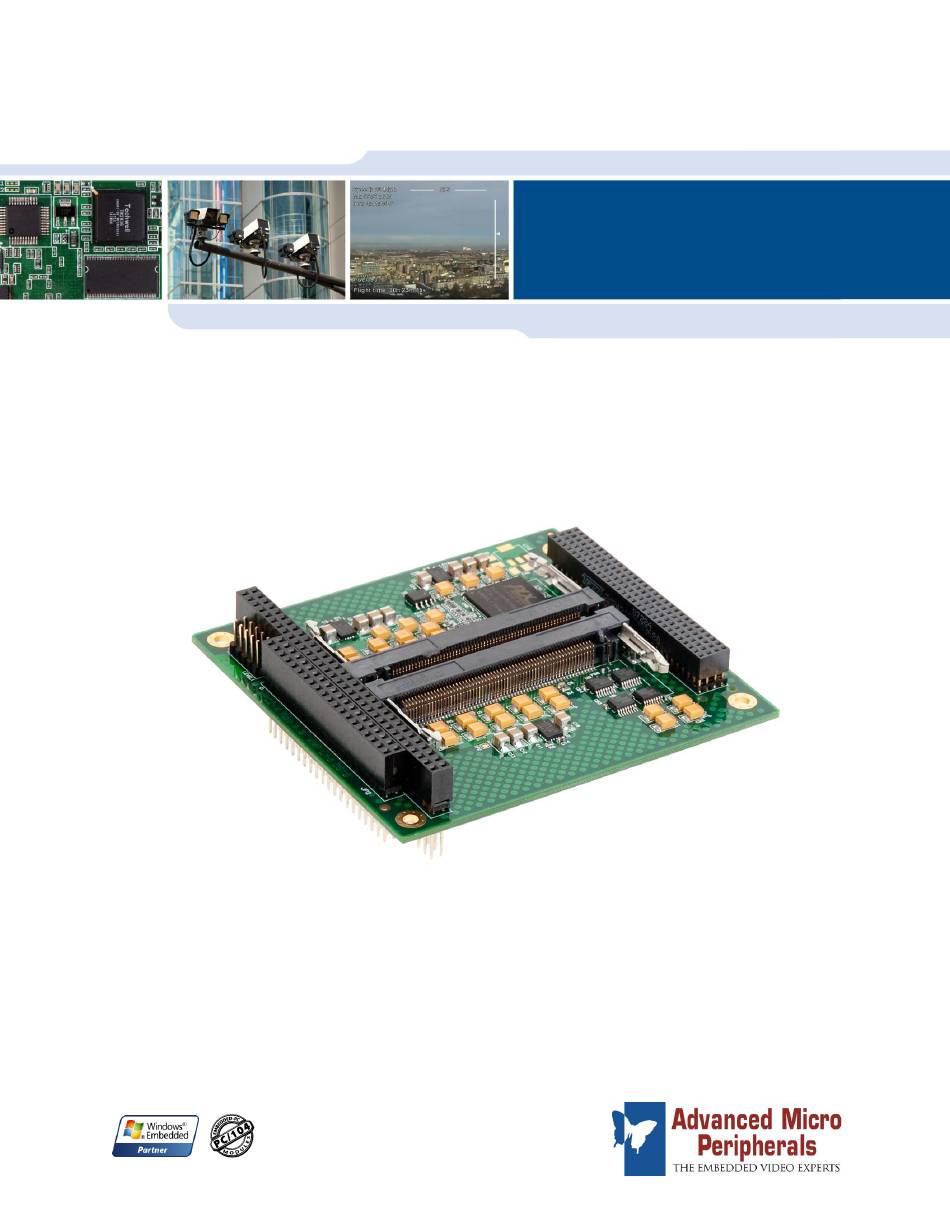

- Page 1 Quad slot miniPCI adapter for PC/104-Plus Systems Document version: A.00 HARDWARE REFERENCE MANUAL...
- Page 2 Peripherals Ltd (AMP) makes no guarantee or warranty concerning the accuracy of said information and shall not be responsible for any loss or damage of whatever nature resulting from the use of, or reliance upon, it. AMP does not guarantee that the use of any...
-
Page 3: Table Of Contents
Hardware reference manual Contents Introduction ..................... 4 Features ................................5 mPCI-4 ‘at a glance’............................5 Technical specification ............................. 6 Ordering information ............................7 Anti-static handling............................7 RoHS compliance ............................7 Installation ....................8 System requirements ............................8 Jumpers and connectors ..........................9 mPCI-4 card installation .......................... -
Page 4: Introduction
The mPCI-4 is a highly integrated miniPCI adapter card for PC/104- systems. Plus The mPCI-4 card supports up to 4 Type-III miniPCI cards in a single PC/104- stack location and provides an ideal way of adding advanced functionality to space constrained systems. -
Page 5: Features
Active PCI-PCI bridge for efficient use of system resources ▪ PC/104-Plus form factor ▪ Extended temperature range (option) ▪ Native driver support for Windows and Linux mPCI-4 ‘at a glance’ 16-bit PC/104 PC/104-Plus bus bus connectors (pasthru) Jumpers for IDSEL card and... -
Page 6: Technical Specification
1: Introduction Hardware reference manual Technical specification PC/104-Plus Bus Interface: Compliant with PCI Rev. 2.1 132MBytes/sec rate at 33.33MHz bus speed miniPCI Interface: 4x miniPCI Type III slots. On board 3.3V power supply can provide up to 1A per slot. System Requirements: Spare REQ/GNT on PC/104-Plus Bus Plus... -
Page 7: Ordering Information
The European RoHS Directive (Restriction on the use of certain Hazardous Substances – Directive 2002/95/EC) limits the amount of six specific substances within the composition of the product. The mPCI-4 is RoHS-6 compliant. © 2012 Advanced Micro Peripherals Document version A.00... -
Page 8: Installation
Installation System requirements Processor Pentium-class CPU at 500MHz or faster Memory 512MB or greater PC/104-Plus with 3.3V or 5V logic tolerance Operating system Windows (XP or XP Embedded), Linux © 2012 Advanced Micro Peripherals Document version A.00... -
Page 9: Jumpers And Connectors
2: Installation Hardware reference manual Jumpers and connectors The following diagram shows the location of the jumpers and connectors available on the mPCI-4: PCI104 J1 J2 (underside) J3 J4 (underside) LEVEL1 © 2012 Advanced Micro Peripherals Document version A.00... - Page 10 2: Installation Hardware reference manual Conventions The following pages provide information about these jumpers and connectors. All illustrations on these pages are shown in the same orientation as the photograph above, unless otherwise stated. See… Connector Signal PCI1 PC/104+ bus. PCI104 –...
- Page 11 PCI Rev 2.1 compliant, 3.3V and +5V tolerant operation. JP1 and JP2 16-bit PC/104 bus connectors. These bus connectors are not currently used on the mPCI-4 card except for routing signals to other PC/104 cards. J1 – miniPCI Slot 1 miniPCI Type III slot...
- Page 12 The setting of the first two links on the LEVEL header determine the logical stack -Plus position of the mPCI-4 on the PC/104 stack. This setting routes the appropriate IDSEL, PCICLK, REQ and GNT signals to the PCI bridge chip on the mPCI-4.
- Page 13 The settings of the third and fourth links on the LEVEL header determine how the miniPCI interrupts are routed to the swhich of the four PCI interrupts service the -Plus mPCI-4 card on the PC/104 stack. Default setting: The following configurations are valid.
-
Page 14: Mpci-4 Card Installation
Hardware reference manual mPCI-4 card installation The mPCI-4 is supported by drivers provided as standard with most OS. If you are using a recent BIOS version and operating system, the mPCI-4 should be detected automatically. © 2012 Advanced Micro Peripherals... -
Page 15: Contacting Amp
Contacting AMP Sales AMP’s sales team is always available to assist you in choosing the board that best meets your requirements. Contact your local sales office or hotline. Sales office US Sales office UK Advanced Micro Peripherals Inc. Advanced Micro Peripherals Ltd.
