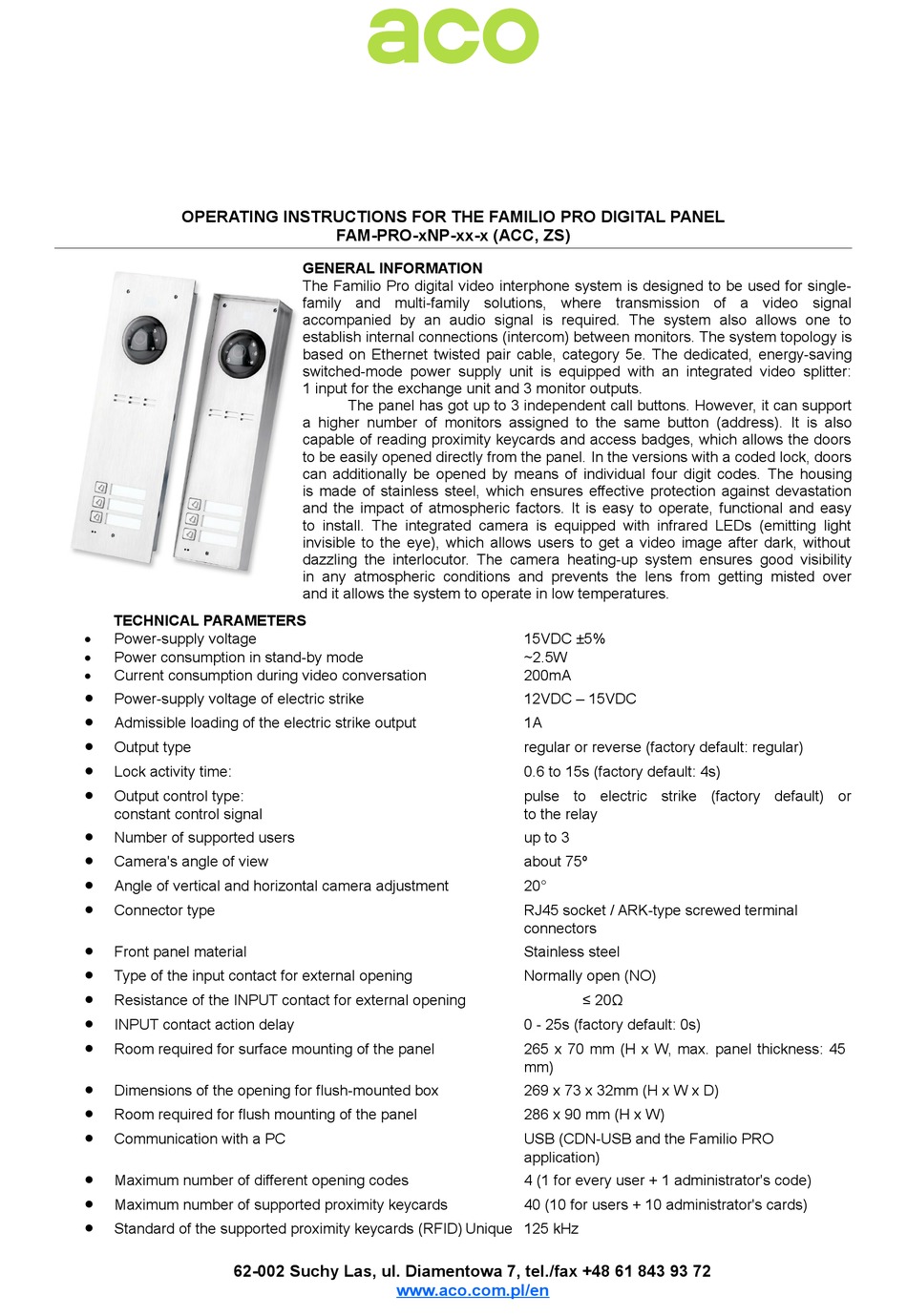

ACO FAM-PRO NP Series Operating Instructions

OPERATING INSTRUCTIONS FOR THE FAMILIO PRO DIGITAL PANEL

TECHNICAL PARAMETERS


Power-supply voltage

Power consumption in stand-by mode

Current consumption during video conversation

Power-supply voltage of electric strike

Admissible loading of the electric strike output

Output type

Lock activity time:

Output control type:
constant control signal

Number of supported users

Camera's angle of view

Angle of vertical and horizontal camera adjustment

Connector type

Front panel material

Type of the input contact for external opening

Resistance of the INPUT contact for external opening

INPUT contact action delay

Room required for surface mounting of the panel

Dimensions of the opening for flush-mounted box

Room required for flush mounting of the panel

Communication with a PC

Maximum number of different opening codes

Maximum number of supported proximity keycards

Standard of the supported proximity keycards (RFID) Unique 125 kHz
62-002 Suchy Las, ul. Diamentowa 7, tel./fax +48 61 843 93 72
FAM-PRO-xNP-xx-x (ACC, ZS)

GENERAL INFORMATION

The Familio Pro digital video interphone system is designed to be used for single-
family and multi-family solutions, where transmission of a video signal
accompanied by an audio signal is required. The system also allows one to
establish internal connections (intercom) between monitors. The system topology is
based on Ethernet twisted pair cable, category 5e. The dedicated, energy-saving
switched-mode power supply unit is equipped with an integrated video splitter:
1 input for the exchange unit and 3 monitor outputs.
The panel has got up to 3 independent call buttons. However, it can support
a higher number of monitors assigned to the same button (address). It is also
capable of reading proximity keycards and access badges, which allows the doors
to be easily opened directly from the panel. In the versions with a coded lock, doors
can additionally be opened by means of individual four digit codes. The housing
is made of stainless steel, which ensures effective protection against devastation
and the impact of atmospheric factors. It is easy to operate, functional and easy
to install. The integrated camera is equipped with infrared LEDs (emitting light
invisible to the eye), which allows users to get a video image after dark, without
dazzling the interlocutor. The camera heating-up system ensures good visibility
in any atmospheric conditions and prevents the lens from getting misted over
and it allows the system to operate in low temperatures.
www.aco.com.pl/en
15VDC ±5%
~2.5W
200mA
12VDC – 15VDC
1A
regular or reverse (factory default: regular)
0.6 to 15s (factory default: 4s)
pulse to electric strike (factory default) or
to the relay
up to 3
about 75º
20°
RJ45 socket / ARK-type screwed terminal
connectors
Stainless steel
Normally open (NO)
≤ 20Ω
0 - 25s (factory default: 0s)
265 x 70 mm (H x W, max. panel thickness: 45
mm)
269 x 73 x 32mm (H x W x D)
286 x 90 mm (H x W)
USB (CDN-USB and the Familio PRO
application)
4 (1 for every user + 1 administrator's code)
40 (10 for users + 10 administrator's cards)
