Summary of Contents for Amada MX2000
- Page 1 AMADA MIYACHI AMERICA The World Leader in Hermetic Sealing Systems MX2000 Operational Manual 107-00097-000...
- Page 2 A M A D A M I Y A C H I A M E R I C A MX2000 Operational Manual Amada Miyachi America 1820 S. Myrtle Ave Monrovia, CA 91017 Phone 626.303.5676 • Fax 626.359.7930 R E V I S I O N R E C O R D...
- Page 3 1820 S. Myrtle Ave Monrovia, CA 91017 Phone 626.303.5676 • Fax 626.359.7930 NOTICE Amada Miyachi America may be released from all warranty obligations if repairs or modifications are made by persons other than its own service personnel, or its authorized representatives,...
-
Page 4: Table Of Contents
Table of Contents 1.0 INTRODUCTION……………………………………………………………………4 2.0 GENERAL SAFETY WARNING……………………………………………………4 3.0 STANDARD SYSTEM SPECIFICATIONS ……………………………………….5 3.1 ENCLOSURE…………………………………………………………………5 3.2 END LOADING INTERCHANGE 14’’ STAINLESS STEEL………………5 3.3 END LOADING INTERCHANGE 18’’ STAINLESS STEEL………………5 3.4 VACUUM BAKE OVEN 14’’ STAINLESS STEEL………………………...6 3.5 VACUUM BAKE OVEN 18’’ STAINLESS STEEL………………………...6 3.6 VACUUM BAKE OVEN 18’’... -
Page 5: Introduction

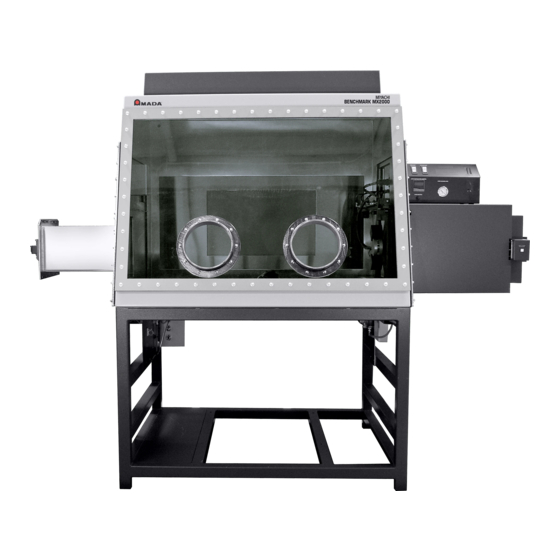

The system is equipped with an automatic or manual control workstation chamber, vacuum bakeout oven, and a flushing pass-thru interchange. The MX2000 system is designed for integration with any one of Amada Miyachi America’s precision seamsealing systems, or other customer supplied materials processing equipment. -
Page 6: Standard System Specifications
3.0 STANDARD SYSTEM SPECIFICATIONS 3.1 ENCLOSURE Glove Ports: Two (2) or Four (4) - 8" (203mm) diameter ports Enclosure size: 48" (1219mm) or 56" (1423mm) (L) x 39" (990mm) (D) x 36" (914mm) (H). Custom sizes are available Pressure Control: Manual Set Rotometer or Automated Pressure Control Mechanism Lighting: 39 Watt Fluorescent Input Voltage: 208-240 Volts, 50 /60 Hz, Single Phase... -
Page 7: Vacuum Bake Oven 14'' Stainless Steel
3.4 VACUUM BAKE OVEN 14’’ STAINLESS STEEL Material: Type 304 electro-polished stainless steel Size (internal): 14.0" (356mm) (L) x 7 " (194mm) (H) x 7 " (194mm) (W) Vacuum Level Options: 20 mTorr (1 mTorr optional) Max. Temp: 125º C (200º C. optional) Temperature Variance: + 5ºC Heater zone:... -
Page 8: Vacuum Bake Oven 18'' Stainless Steel Heated Shelf
Manual Doors with Automatic Lock 4.0 INSTALLATION AND HOOK-UP 4.1 UNPACKING: The MX2000 system is shipped fully assembled. Remove all packing materials and visually inspect the system for obvious signs of shipping damage. Report any damage immediately to the carrier. The carrier claims agent must file a report... -
Page 9: Electrical And Gases Service Requirements
5.0 ENCLOSURE CONTROLS & OPERATION 5.1 ENCLOSURE PRESSURE CONTROL The MX2000 system is equipped with manual or optional automated control devices which maintain an inert atmosphere within the work chamber enclosure. A simplified sequence for utilizing the enclosure includes: Glovebox Pressure Control-70 Consist of a rotometer on the input, and a purge check valve on the output. -
Page 10: Enclosure Control Console
5.2 ENCLOSURE CONTROL CONSOLE All electrical components for environmental control processes are located in the control console(s) located atop the vacuum bakeout oven and/or interchange. The main electrical supply line connector is located in the rear of one of the control consoles. -
Page 11: Enclosure Purge / Flush Interchange Purge
For systems with automatic lock, the door will automatically latched when closed. 5.6 OVEN OPERATION The MX2000 vacuum bake out oven is equipped with heat, vacuum, and gas backfill (purge) controls. Oven temperature is strictly controlled by the solid state temperature controller which provides a continuous digital display of the bakeout process temperature. - Page 12 For more information on the bakeout process, please consult the temperature controller manual. The vacuum pumping system can be initiated automatically by the temperature controller or manually by the VACUUM PUMP circuit breaker located on the control console. The digital vacuum gauge displays the vacuum level in Torr. The gauge reads 760 Torr in normal atmosphetic pressure.
-
Page 13: Analyzers
6.0 SYSTEM MAINTENANCE The MX2000 ATMOSPHERIC ENCLOSURE is designed to provide long, trouble free service. A regular schedule for preventive maintenance will minimize corrective maintenance problems. If trouble cannot be easily corrected, qualified service technicians should be called. -
Page 14: Enclosure Maintenance
6.1.2 ENCLOSURE GLOVES The MX2000 system employs butyl rubber or Neoprene gloves. The gloves should only be cleaned with mild soap and water solution. The life of the gloves is strictly related to the care used by the operator. They should be inspected at least once a week and replaced once a year.
